Pflitsch Industrial-Trunking - cable trunking

  • PFLITSCH Industrial Trunking is a robust, modular cable routing system designed for routing large quantities of cables in industrial environments. Made from durable materials (galvanised steel, stainless steel or aluminium).
Pflitsch Industrial-Trunking - cable trunking
Ask about the product

PFLITSCH Industrial‑Trunking is a robust, modular cable routing system designed for routing large quantities of cables in industrial environments. Made of durable materials (galvanised steel, stainless steel or aluminium), it guarantees safe cable routing over long distances, both horizontally and vertically. It allows for quick installation thanks to openable covers along the entire length, a wide range of accessories and system connectors. Designed with cable protection, installation ergonomics and easy maintenance in mind..



Key Features of Industrial‑Trunking


Pflitsch industrial cable tray

Versatility and installation flexibility

The PFLITSCH cable trunking system offers 13 different cross-sections - from 50 × 50 mm to 600 × 150 mm - allowing optimal adaptation to the requirements of any application. For each size, more than 80 shape elements are available, ensuring flexible routing in almost any industrial environment.


Quick installation and easy modifications

The ducts can be opened along their entire length, allowing cable bundles to be inserted or removed without time-consuming threading. Pressed-in, self-locking cap nuts reduce installation time and increase overall stability. The system’s high load-bearing capacity allows for fewer mounting points, saving materials and costs. Telescopic elements and adjustable angle fittings also compensate for dimensional deviations with precision.


Reliable cable protection

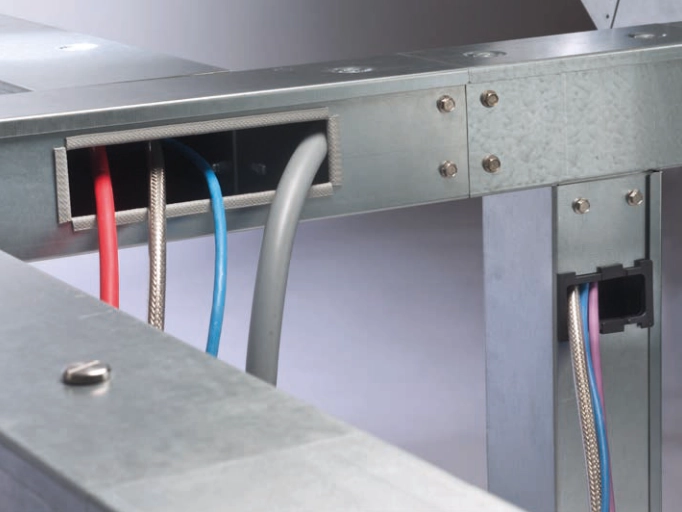

PFLITSCH ducts are manufactured in Germany using high-quality sheet metal – available in galvanized, stainless steel, or aluminum versions. For cable safety, all edges are deburred and corners rounded. Factory-formed connectors effectively protect cables at junctions, even under strong vibrations. Additional plastic elements help safeguard edges at side cut-outs and channel ends.


Automatic potential equalization

The system ensures safe potential equalization between duct segments and shape elements via serrated screws in cap nuts – a TÜV-tested and certified solution. A special potential equalizing and protective tape connects the cover to the duct body. Channels with hinged covers do not require any additional equipotential bonding.


Pflitsch industrial cable tray

Corrosion protection and certifications

Galvanized steel components are coated with a high-quality zinc layer of 275 g/m², ensuring long-term corrosion resistance even in demanding environments. The system is UL and VDE certified, confirming compliance with international standards (UL does not apply to aluminum and V4A stainless steel versions).


Flexible cable organization and cover options

Special components such as flyovers enable cables to be routed at different levels, making it much easier to keep them tidy. Insertable or clampable partition walls allow installation in accordance with EMC requirements. The system offers a variety of cover options – removable, hinged, with rotary latches or special closures for the food industry. Versions with external lever and clip closures allow quick opening without the use of tools.


Design and production support

PFLITSCH offers comprehensive support for designers by providing easyRoute 3D CAD software and a component library. The system automatically generates parts lists, orders and complete project documentation. It is also possible to order customised components, painted in any RAL colour or with a selected finish. Industrial-Trunking ducts can be easily cut and machined using specialised tools. PFLITSCH also offers delivery of ready-made assemblies in accordance with customer drawings or CAD files.


Industrial trunking applications

  • Factories and machine halls - routing large cable bundles over and around machines and production equipment.
  • Vertical and horizontal installations - flexible cable routing in various planes thanks to numerous fittings.
  • Food and chemical industry - stainless steel versions meet cleanliness and corrosion resistance requirements.
  • Offshore and marine structures - certified systems for durability and safety in harsh conditions.
  • EMC and potential protection systems - applications requiring uniform potential equalisation and electromagnetic protection.

Pflitsch Catalogs

Pflitsch – Industrial Cable Trunking

Pflitsch – Industrial Trunking Installation

To download
Producer
Product code
Industrial-Trunking
Material
Galvanized steel
,
Stainless Steel AISI 316L
,
Stainless Steel AISI 304
,
Aluminum
Protective layer
Priming
,
Varnishing
,
Galvanizing
,
Brushed
Certificate
VDE
,
UL
