Pflitsch Hygienic elbow TRI CLEAN Plus - stainless steel elbow gland
- Pflitsch CLEAN Plus series hygienic elbow gland, made of AISI 303 stainless steel. It features a gentian-blue TPU seal, a rotating design (360°), integrated EMC shielding, and IP66, IP68 (up to 15 bar) protection ratings.
Pflitsch Hygienic elbow TRI CLEAN Plus

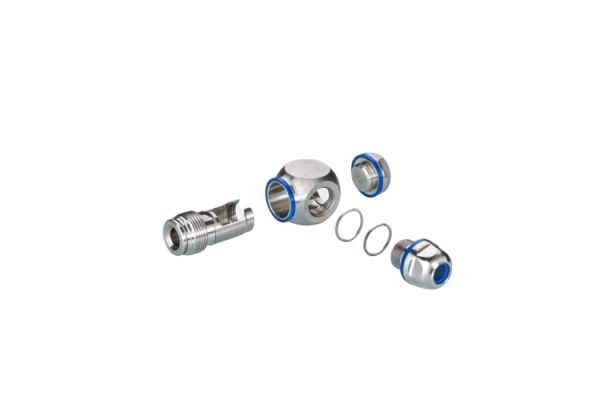

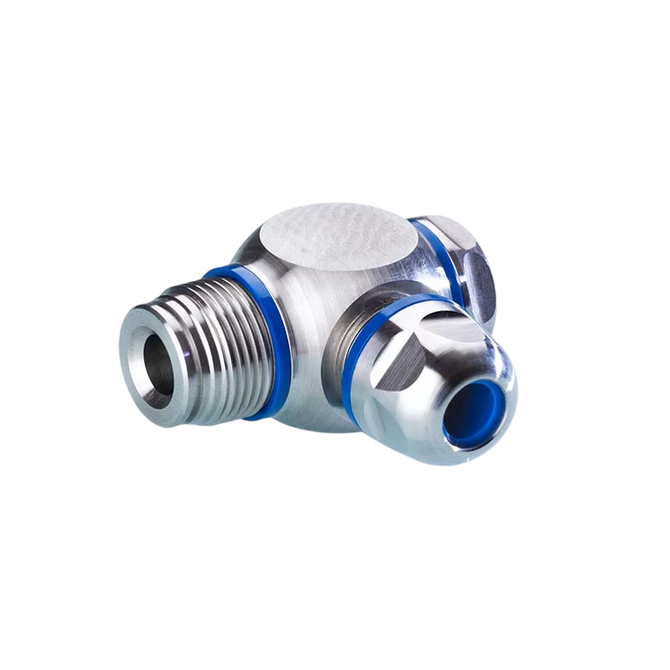

Elbow connector made of AISI 303 stainless steel, designed for use in areas requiring the highest hygiene standards. The component complies with FDA and EHEDG guidelines, offers 360° adjustment, integrated EMC shielding and is equipped with a gentian-blue TPU seal. It provides reliable IP66, IP68 (up to 15 bar) and IP69 protection and has a metric thread in accordance with EN 60423. Operating temperature range: -40°C to +85°C. The ideal solution for CIP/SIP installations, packaging systems and hygienic applications in the food and pharmaceutical industries.
Features of CLEAN Plus elbow glands:
- AISI 303 (1.4305) stainless steel housing
- IP66, IP68 (up to 15 bar), IP69 sealing
- Rotatable and adjustable position (360°)
- TPU seal
- Seal colour: gentian blue
- Integrated EMC shielding
- Operating range: from -40°C to +85°C
- Metric threads in accordance with EN 60423
- Design in accordance with EHEDG and FDA guidelines
Applications
- Food and pharmaceutical industry
- Packaging and processing machines
- Cleaning systems (CIP/SIP)
- Hygienic applications with high sanitary requirements
- Installations in humid environments requiring frequent cleaning
| Part No. | Thread A |
Thread length D [mm] |
Sealing range max–min ø [mm] |
Thread length without insert [mm] |
Thread length with insert [mm] |
Length C4 [mm] |
Mounting height C5 [mm] |
Wrench width SW [mm] |
Packaging |
|---|---|---|---|---|---|---|---|---|---|
| ZSA 21210VA5 tri cp | M12x1.5 | 6.0 | 5.5 – 4.4 | 5.0 – 3.0 | - | 48.8 | 47.0 | 22 | 5 |
| ZSA 21210VA tri cp | M12x1.5 | 6.0 | 7.0 – 5.0 | 5.0 – 3.0 | - | 48.8 | 42.5 | 22 | 5 |
| ZSA 22016VA tri cp | M20x1.5 | 12.0 | 9.0 – 7.0 | 9.0 – 5.0 | - | 53.1 | 62.0 | 27 | 5 |
| ZSA 22520VA tri cp | M25x1,5 | 12,5 | 12,0 – 9,0 | 12,0 – 7,0 | - | 68,0 | 74,0 | 34 | 5 |
| ZSA 23225VA15 tri cp | M32x1,5 | 12,5 | 15,0 – 12,0 | 14,0 – 10,0 | - | 70,8 | 96,0 | 42 | 5 |
| ZSA 23225VA tri cp | M32x1,5 | 12,5 | 18,0 – 15,0 | 16,0 – 10,0 | - | 70,8 | 78,0 | 42 | 5 |
To download
Producer
Product code
Hygienic elbow TRI CLEAN Plus
Series
Material
Stainless steel 303
Insert material
TPU
Thread
M12
, M20
, M25
, M32
Sealing range in millimeters
4,4-5,5
, 5-7 mm
, 7-9 mm
, 9-12 mm
, 12-15 mm
, 15-18 mm
Thread length in millimeters
6
, 12
, 12,5
Product height in millimetres
52
, 48.5
, 74
, 86,5
, 90.5
, 108,5
Product width in millimeters
48,8
, 53,1
, 68
, 70,8
Ingress Protection
IP66
, IP68
, IP69
Application features
Detergent resistant
, EMC
Colour
Unpainted
Insert color
Blue
Temperature range
-40...+85°C
Certificate
EN 60423
, EHEDG
