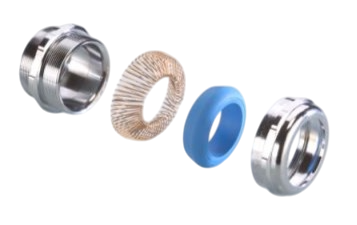

Pflitsch blueglobe TRI NM/Cr - brass chrome-plated EMC cable gland with TPE sealing insert and bronze spring
- EMC cable gland from blueglobe TRI series by Pflitsch. Effective against EMC radiation, made from brass chrome-plated, with sealing insert made from TPE, spring made of non-magnetic bronze. Thread: M12-M63, protection degree: IP 68/69.
Pflitsch blueglobe TRI NM/Cr
EMC cable gland made of chrome-plated brass with an exceptionally wide clamping range. This product is available with threads from M12 to M63, offers sealing up to IP68 (15 bar) and IP69, and includes a sealing insert made of TPE, spring made of non-magnetic bronze.
Features of blueglobe TRI NM/CR cable glands:
- Electromagnetic compatibility (EMC) enabled by TRI Spring technology
- Chrome-plated brass body – non-magnetic bronze spring
- Effective 360° shielding and low contact resistance
- No sharp edges: gentle spring-loaded contact with the cable shield
- Quick installation without additional tools
- Integrated HNBR O-ring
- Protection rating: IP68 (up to 15 bar) / IP69
- Metric thread according to EN 60423
- Strain relief compliant with class B, EN 62444
- Operating temperature range: -40 °C to +130 °C
Applications
- Automation and control systems
- Data and signal transmission technology
- Industrial infrastructure requiring EMC protection
- Railway and transportation systems
- Measuring and laboratory devices
- Power and energy systems
- Enclosures exposed to chemical agents or corrosion

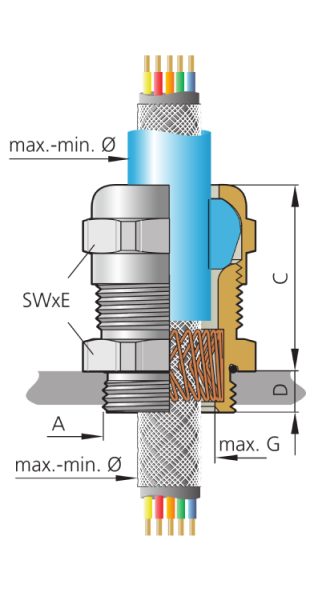

| Part No. | Thread A |
Thread length D [mm] | Sealing range max-min ø [mm] |
Seal. r. no inlet max-min ø [mm] | Seal. r. with inlet max-min ø [mm] | Mounting heightC [mm] | Spanner width SW x E [mm] | Packing | ||
|---|---|---|---|---|---|---|---|---|---|---|
| bg 212ms triNM/Cr | M12x1,5 | 5,0 | 8,0 – 5,0 | 8,0 – 5,0 | 5,0 – 3,0 | 5,0 | 21,0 | 17x18,9 | 50 | |
| bg 216ms triNM/Cr 9lg | M16x1,5 | 9,0 | 11,0 – 7,0 | 11,0 – 7,0 | 9,0 – 5,0 | 9,0 | 24,0 | 20x22,2 | 50 | |
| bg 220ms triNM/Cr 10lg | M20x1,5 | 10,0 | 14,0 – 9,0 | 14,0 – 9,0 | 12,0 – 7,0 | 12,0 | 30,0 | 24x26,5 | 50 | |
| bg 225ms triNM/Cr 11lg | M25x1,5 | 11,0 | 20,0 – 11,0 | 20,0 – 16,0 | 16,0 – 11,0 | 16,0 – 10,0 | 16,0 | 30,0 | 30x33 | 50 |
| bg 232ms triNM/Cr 12lg | M32x1,5 | 12,0 | 25,0 – 15,0 | 25,0 – 20,0 | 20,0 – 15,0 | 20,0 – 13,0 | 20,0 | 32,0 | 36x39,5 | 25 |
| bg 240ms triNM/Cr 13lg | M40x1,5 | 13,0 | 32,0 – 20,0 | 32,0 – 26,0 | 26,0 – 20,0 | 28,0 – 20,0 | 28,0 | 35,0 | 45x48 | 10 |
| bg 250ms triNM/Cr 14lg | M50x1,5 | 14,0 | 42,0 – 31,0 | 42,0 – 35,0 | 35,0 – 31,0 | 37,0 – 28,0 | 37,0 | 39,0 | 57x61 | 5 |
| bg 263ms triNM/Cr 15lg | M63x1,5 | 15,0 | 54,0 – 41,0 | 54,0 – 46,0 | 46,0 – 41,0 | 46,0 – 37,0 | 46,0 | 45,0 | 68x72 | 5 |
To download
Producer
Product code
blueglobe TRI NM/Cr
Series
Material
Chrome-platted brass
Insert material
Thermoplastic elastomer - TPE
Thread
M12
, M16
, M20
, M25
, M32
, M40
, M50
, M63
Sealing range in millimeters
5-8 mm
, 7-11 mm
, 9-14 mm
, 11-20 mm
, 15-25 mm
, 20-32 mm
, 31-42 mm
, 41-54 mm
Thread length in millimeters
9
, 10
, 11
, 12
, 13
, 14
, 15
Product height in millimetres
26
, 33
, 40
, 41
, 44
, 48
, 53
, 60
Product width in millimeters
18.9
, 22.2
, 26.5
, 33
, 39.5
, 48
, 61
, 72
Ingress Protection
IP68
, IP69
Application features
EMC
Colour
Unpainted
Insert color
Blue
Certificate
EN 60423
, DIN EN 62444
Temperature range
-40...+130°C
