Pflitsch blueglobe TRI HT EMC Ex eb / Ex tb - cable gland
- blueglobe TRI HT EMC cable gland Ex eb / Ex tb - ATEX EMC cable gland with silicone HT sealing by Pflitsch. Suitable for hazardous areas thread: M12-M40, protection degree: IP68 (up to15 bar).
Pflitsch blueglobe TRI HT EMC Ex eb / Ex tb
ATEX cable gland made nickel-plated brass with an exceptionally wide clamping range. Suitable for hazardous areas. This product is available with threads from M12 to M85, offers sealing up to IP66, IP40 (up to 15 bar), and includes a sealing insert made of TPE.
Features of blueglobe TRI HT EMC cable gland Ex eb / Ex tb
- Nickel-plated brass (CW614N) body with EMC shielding properties
- Metric threads M12-M40 compliant with EN 60423 standard
- High Temperature silicone O-ring (-55°C to +160°C operating range)
- IP66/IP68 protection up to 15 bar pressure
- ATEX certified for explosive atmospheres (Ex eb/Ex tb)
- Two installation variants (offset or continuous outer sheath)
- Integrated cable screening contact for EMI protection
- Available with different sealing configurations (with/without inlet)
Applications
- EMC-sensitive industrial control systems
- Process automation in hazardous areas
- Oil & gas installations requiring EMI protection
- Marine and offshore electrical systems
- Power distribution in explosive atmospheres
- Renewable energy systems (wind/solar farms)
- Telecommunications infrastructure

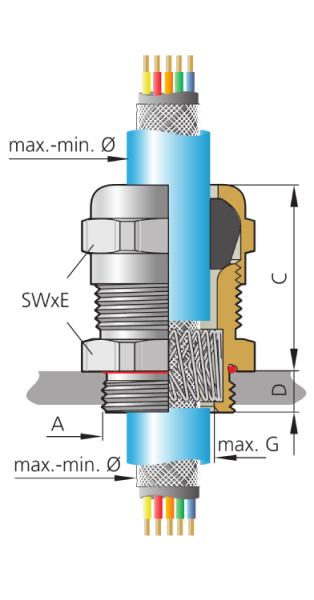

| Part No. | Thread A | Thread length D [mm] | Sealing range max-min ø [mm] | Sealing range without inlet max-min ø [mm] | Sealing range with inlet max-min ø [mm] | Screening range max-min ø [mm] | Passage G [mm] | Mounting height C [mm] | Spanner width SW x E [mm] | Packing |
|---|---|---|---|---|---|---|---|---|---|---|
| bg 212ms tri HTex | M12x1,5 | 5,0 | 8,0 – 5,0 | 8,0 – 5,0 | 5,0 – 3,0 | 5,0 | 21,0 | 17x18,9 | 50 | |
| bg 216ms tri HTex | M16x1,5 | 6,0 | 11,0 – 7,0 | 11,0 – 7,0 | 9,0 – 5,0 | 9,0 | 25,0 | 20x22,2 | 50 | |
| bg 220ms tri HTex | M20x1,5 | 6,5 | 14,0 – 9,0 | 14,0 – 9,0 | 12,0 – 7,0 | 12,0 | 29,5 | 24x26,5 | 50 | |
| bg 225ms tri HTex | M25x1,5 | 7,5 | 20,0 – 11,0 | 20,0 – 16,0 | 16,0 – 11,0 | 16,0 – 10,0 | 16,0 | 30,0 | 30x33 | 25 |
| bg 232ms tri HTex | M32x1,5 | 8,0 | 25,0 – 15,0 | 25,0 – 20,0 | 20,0 – 15,0 | 20,0 – 13,0 | 20,0 | 32,0 | 36x39,5 | 25 |
| bg 240ms tri HTex | M40x1,5 | 15,0 | 32,0 – 21,0 | 32,0 – 26,0 | 26,0 – 21,0 | 28,0 – 20,0 | 28,0 | 35,0 | 45x48 | 10 |
To download
Producer
Product code
blueglobe TRI HT EMC Ex eb / Ex tb
Series
Material
Nickel-plated Brass
Insert material
Silicone HT
Thread
M12
, M16
, M20
, M25
, M32
, M40
Sealing range in millimeters
5-8 mm
, 7-11 mm
, 9-14 mm
, 11-20 mm
, 15-25 mm
, 21-32 mm
Thread length in millimeters
5
, 6
, 6.5
, 7.5
, 8
, 15
Product height in millimetres
26
, 31
, 36
, 37.5
, 40
, 43
Product width in millimeters
18.9
, 22.2
, 26.5
, 33
, 39.5
, 48
Ingress Protection
IP66
, IP68
Application features
ATEX
, EMC
Colour
Unpainted
Insert color
Black
Temperature range
-55...+160°C
Certificate
EN 60423
, EN IEC 60079-0:2018
, EN 60079-7:2015 + A1:2018
, EAC – RU C-DE.AЖ58.B.01336/21
, CCC – 2021312313000362
