Pflitsch blueglobe TRI EMC Ex eb / Ex tb - cable gland
- blueglobe TRI EMC Ex eb / Ex tb - ATEX EMC cable gland with TPE sealing by Pflitsch. Suitable for hazardous areas thread: M12-M85, protection degree: IP68 (up to15 bar).
Pflitsch blueglobe TRI EMC Ex eb / Ex tb
ATEX cable gland made nickel-plated brass with an exceptionally wide clamping range. Suitable for hazardous areas. This product is available with threads from M12 to M85, offers sealing up to IP66, IP68 (up to 15 bar), and includes a sealing insert made of TPE.
Features of blueglobe TRI EMC Ex eb / Ex tb cable glands:
- Certified for use in explosive atmospheres (Ex eb / Ex tb)
- Nickel-plated brass version compliant with EN 60423
- Integrated HNBR O-ring ensures high sealing performance
- Protection class IP66 / IP68 up to 15 bar
- Operating temperature range: -20 °C to +60 °C

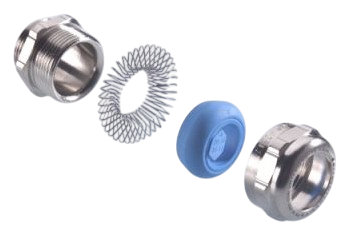

- TRI spring technology for excellent EMC shielding
- Available in stainless steel on request

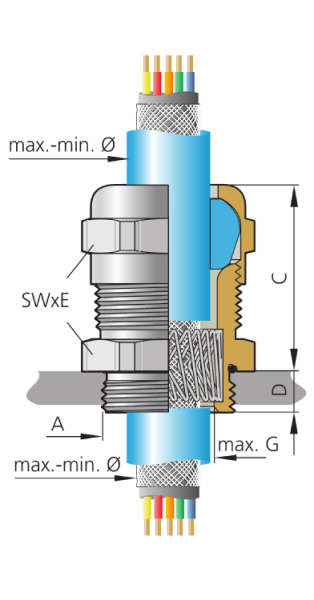

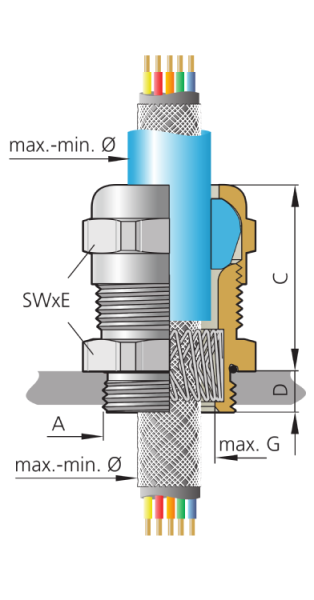

- Two mounting options: offset sheath or continuous sheath
Applications
- Hazardous areas (e.g. chemical, petrochemical industry)
- Automation and control systems in Ex environments
- EMC-compliant installations in ATEX zones
- Ex eb / Ex tb certified enclosures and junction boxes
- Power and data transmission in hazardous locations

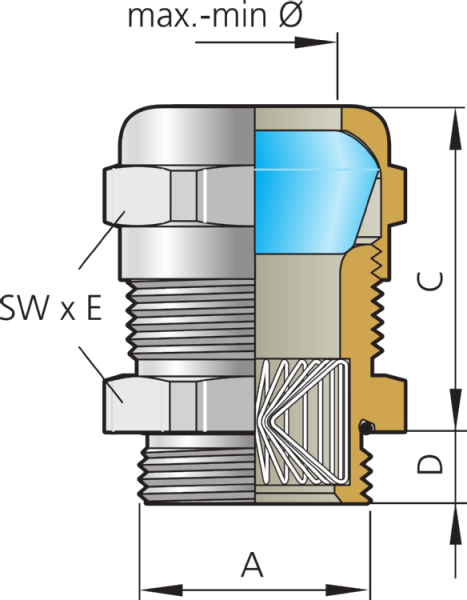

| Part No. | Thread A |
Thread length D [mm] | Sealing range max-min ø [mm] |
Sealing range without inlet max-min ø [mm] |
Sealing range with inlet max-min ø [mm] |
Screening range max-min ø [mm] |
PassageG[mm] | Mounting heightC [mm] | Spanner width SW x E [mm] | Packing |
|---|---|---|---|---|---|---|---|---|---|---|
| bg 212ms triex | M12x1,5 | 5,0 | 8,0–5,0 | 8,0–5,0 | 5,0–3,0 | 5,0 | 21,0 | 17x18,9 | 50 | |
| bg 216ms triex | M16x1,5 | 6,0 | 11,0–7,0 | 11,0–7,0 | 9,0–5,0 | 9,0 | 25,0 | 20x22,2 | 50 | |
| bg 220ms triex | M20x1,5 | 6,5 | 14,0–9,0 | 14,0–9,0 | 12,0–7,0 | 12,0 | 29,5 | 24x26,5 | 50 | |
| bg 225ms triex | M25x1,5 | 7,5 | 20,0–12,0 | 20,0–16,0 | 16,0–12,0 | 16,0-10,0 | 16,0 | 30,0 | 30x33 | 25 |
| bg 232ms triex | M32x1,5 | 8,0 | 25,0–17,0 | 25,0–20,0 | 20,0–17,0 | 20,0–13,0 | 20,0 | 32,0 | 36x39,5 | 25 |
| bg 240ms triex | M40x1,5 | 15,0 | 32,0–21,0 | 32,0–26,0 | 26,0–21,0 | 28,0–20,0 | 28,0 | 35,0 | 45x48 | 10 |
| bg 250ms triex | M50x1,5 | 15,0 | 42,0–32,0 | 42,0–35,0 | 35,0–32,0 | 37,0–28,0 | 37,0 | 39,0 | 57x61 | 5 |
| bg 263ms triex | M63x1,5 | 20,0 | 54,0–42,0 | 54,0–46,0 | 46,0–42,0 | 46,0–37,0 | 46,0 | 40,0 | 68x72 | 5 |
| bg 275ms triex | M75x1,5 | 20,0 | 65,0–55,0 | 65,0–58,0 | 58,0–55,0 | 58,0–56,0 | 58,0 | 47,0 | 81x87 | 5 |
| bg 285ms triex | M85x2,0 | 20,0 | 77,0–66,0 | 77,0–70,0 | 70,0–66,0 | 65,0–58,0 | 65,0 | 49,0 | 95x102 | 1 |
To download
Producer
Product code
blueglobe TRI EMC Ex eb / Ex tb
Series
Material
Nickel-plated Brass
Insert material
Thermoplastic elastomer - TPE
Thread
M12
, M16
, M20
, M25
, M32
, M40
, M50
, M63
, M75
, M85
Sealing range in millimeters
5-8 mm
, 7-11 mm
, 12-20 mm
, 17-25 mm
, 21-32 mm
, 32-42 mm
, 42-54 mm
, 55-65 mm
, 66-77 mm
Thread length in millimeters
5
, 6
, 6.5
, 7.5
, 8
, 15
, 20
Product height in millimetres
26
, 31
, 36
, 37.5
, 40
, 50
, 54
, 60
, 67
, 69
Product width in millimeters
18.9
, 22.2
, 26.5
, 33
, 39.5
, 48
, 61
, 72
, 87
, 102
Ingress Protection
IP66
, IP68
Application features
ATEX
, EMC
Colour
Unpainted
Insert color
Blue
Temperature range
-20...+60°C
Certificate
EN 60423
, EN 60529
, EN IEC 60079-0:2018
, EN 60079-7:2015 + A1:2018
, EN 60079-31:2014
, IECEx – IECEx PTB 10.0004X
, EAC – RU C-DE.AЖ58.B.01336/21
, CCC – 2021312313000348
, UKCA – CML 22UKEX3130X
