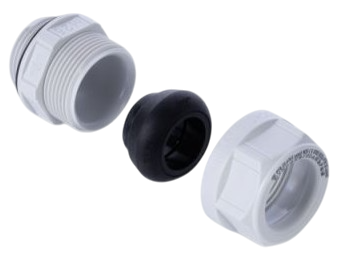

Pflitsch blueglobe PC HT Ex eb / Ex ta
ATEX cable gland made of polycarbonate with an exceptionally wide clamping range. Suitable for hazardous areas. This product is available with threads from M16 to M40, offers sealing up to IP66, IP68 (up to 10 bar, 1h) and includes a sealing insert made of silicone.
Features of blueglobe PC HT Ex eb / Ex ta cable glands:
- High-temperature sealing insert made of silicone HT
- Designed for hazardous areas – Ex eb and Ex ta
- Suitable for category 2G and 3D equipment
- Operating temperature range: -20°C to +60°C
- Protection class IP66 / IP68 (up to 10 bar)
- Certified according to ATEX and IECEx
- Made of polycarbonate – lightweight and durable
- Available in grey or black
- Available on request: 15 mm connection thread
Applications
- Chemical and refinery industries
- Devices used in hazardous (explosive) areas
- Process engineering and instrumentation
- Power and transportation systems
- Outdoor installations exposed to high temperatures
| Part No. | Thread A |
Thread length D [mm] | Sealing range with inlet max-min ø [mm] |
Sealing range without inlet max-min ø [mm] |
Mounting heightC [mm] | Spanner width SW x E [mm] | Packing |
|---|---|---|---|---|---|---|---|
| bg 216PC HTex | M16x1,5 | 6 | 7,0 – 6,0 | 10,0-7,0 | 25,0 | 20x22,2 | 50 |
| bg 220PC HTex | M20x1,5 | 6 | 9,0 – 6,0 | 14,0 - 9,0 | 25,0 | 20x22,2 | 50 |
| bg 225PC HTex | M25x1,5 | 6 | 16,5 – 12,5 | 20,0 – 16,0 | 25,0 | 20x22,2 | 50 |
| bg 232PC HTex | M32x1,5 | 6 | 20,0 – 15,0 | 25,0 – 20,0 | 25,0 | 20x22,2 | 25 |
| bg 240PC HTex | M40x1,5 | 6 | 26,0 – 20,0 | 32,0 – 26,0 | 25,0 | 20x22,2 | 10 |
To download
Producer
Product code
blueglobe PC HT Ex eb / Ex ta
Series
Material
Polycarbonate
Insert material
Silicone HT
Thread
M16
, M20
, M25
, M32
, M40
Sealing range in millimeters
6-7 mm
, 6-9 mm
, 12,5-16,5 mm
, 15-20 mm
, 20-26 mm
, 7-10 mm
, 9-14 mm
, 16-20 mm
, 20-25 mm
, 26-32 mm
Thread length in millimeters
6
Product height in millimetres
31
Product width in millimeters
22.2
Ingress Protection
IP66
, IP68
Application features
ATEX
Colour
Grey
Insert color
Gray
, Black
Temperature range
-20...+60°C
Certificate
EN 60423
