Pflitsch blueglobe HT AC Ex eb / Ex tb - cable gland for steel-armoured cables

  • Blueglobe HT AC Ex eb / Ex tb cable gland by Pflitsch, made of nickel-plated brass for use in potentially explosive zones, with HT silicone insert. Thread sizes M20 to M40, IP66 or IP68 protection rating (up to 15 bar).
Pflitsch blueglobe HT AC Ex eb / Ex tb - cable gland for steel-armoured cables
Pflitsch blueglobe HT AC Ex eb / Ex tb - cable gland for steel-armoured cables
Pflitsch blueglobe HT AC Ex eb / Ex tb - cable gland for steel-armoured cables
Pflitsch blueglobe HT AC Ex eb / Ex tb - cable gland for steel-armoured cables
Pflitsch blueglobe HT AC Ex eb / Ex tb - cable gland for steel-armoured cables
Pflitsch blueglobe HT AC Ex eb / Ex tb - cable gland for steel-armoured cables
Material: Nickel-plated Brass
Insert material: Silicone HT
Ingress Protection: IP66, IP68
Application features: ATEX
Temperature range: -55...+160°C
Ask about the product

Pflitsch blueglobe HT AC Ex eb / Ex tb

ATEX cable gland for steel-armoured cables, made nickel-plated brass with an exceptionally wide clamping range. Suitable for hazardous areas. This product is available with threads from M12 to M40, offers sealing up to IP66, IP68 (up to 15 bar), and includes a sealing insert made of TPE.


Features of blueglobe HT AC Ex eb / Ex tb:

  • Cable gland for steel-armoured cables
  • Effective shielding via external brass clamping ring
  • No need to trim, splay or thread the armouring precisely
  • Fast and simple assembly
  • Protection rating: IP66 / IP68 (up to 15 bar)
  • Operating temperature: -55°C to +160°C
  • Metric thread according to EN 60423
  • Delivered as complete gland with HT silicone sealing insert
  • Available on request: connection thread length 15 mm and in stainless steel

Applications

  • High-voltage cables
  • Power supply cables
  • Loose cable installations
  • Explosion-proof systems (Ex eb / Ex tb)
  • Industrial installations with shielded cable connections

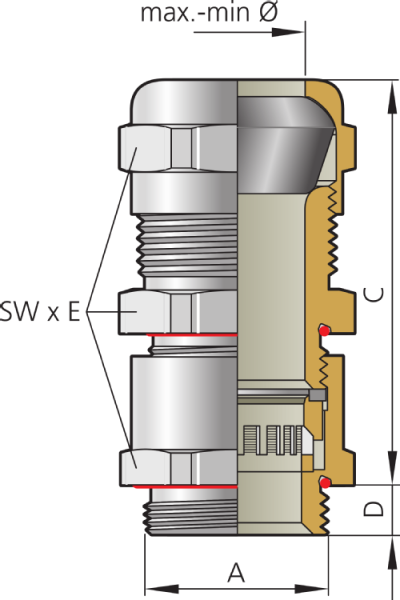

Part No. Thread

A		 Thread length

D

[mm]		 Sealing range

max-min ø

[mm]		 Sealing range without inlet

max-min ø

[mm]		 Sealing range with inlet

max-min ø

[mm]		 Clamping range

max-min ø

[mm]		 Mounting height

C

[mm]		 Spanner width

SW x E

[mm]		 Packing
220bg220msHTAC13ex M20x1,5 6,5 14,0 – 9,0 14,0 – 9,0 13,0 – 9,0 51,0 24x26,5 25
220bg225msHTAC15ex M20x1,5 6,5 20,0 – 11,0 20,0 – 16,0 16,0 – 11,0 15,0 – 10,0 51,0 30x33 25
225bg225msHTAC17ex M25x1,5 7,5 20,0 – 16,0 20,0 – 16,0 17,0 – 14,0 52,0 30x33 25
232bg232msHTAC22ex M32x1,5 8,0 25,0 – 20,0 25,0 – 20,0 23,0 – 19,0 59,0 36x39,5 10
232bg240msHTAC27ex M32x1,5 8,0 32,0 – 20,0 32,0 – 26,0 26,0 – 20,0 27,0 – 23,0 62,0 45x48 25
240bg240msHTAC31ex M40x1,5 8,0 32,0 – 26,0 32,0 – 26,0 31,0 – 28,0 62,0 45x48 10
To download
Producer
Pflitsch
Product code
blueglobe HT AC Ex eb / Ex tb
Series
blueglobe EX
Material
Nickel-plated Brass
Insert material
Silicone HT
Thread
M20
,
M25
,
M32
,
M40
Sealing range in millimeters
9-14 mm
,
11-20 mm
,
16-20 mm
,
20-25 mm
,
20-32 mm
,
26-32 mm
Thread length in millimeters
6.5
,
7.5
,
8
Product height in millimetres
57.5
,
59.5
,
67
,
70
Product width in millimeters
26.5
,
33
,
39.5
,
48
Ingress Protection
IP66
,
IP68
Application features
ATEX
Colour
Unpainted
Insert color
Black
Temperature range
-55...+160°C
Certificate
EN 60423
,
EN 60529
,
EN IEC 60079-0:2018
,
EN 60079-7:2015 + A1:2018
,
EN 60079-31:2014
,
IECEx – IECEx PTB 11.0019X
,
EAC – RU C-DE.AЖ58.B.01336/21
,
CCC – 2021312313000362
,
UKCA – CML 22UKEX3131X
