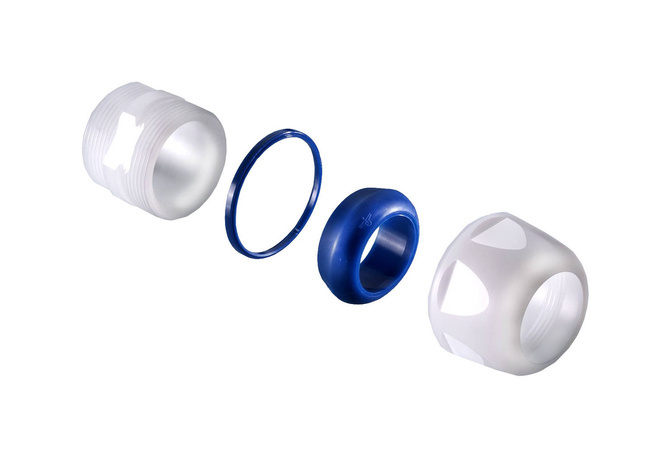

Pflitsch blueglobe CLEAN Plus HTS - plastic cable gland
- Pflitsch gland from the blueglobe CLEAN plus series, with a body made of FDA-compliant PA6 polyamide. It has a sealing insert made of silicone. It has a metric thread, protection class IP66/IP68 (up to 15 bar)/IP69.
Pflitsch blueglobe CLEAN Plus HTS
A gland made of PA6 polyamide (FDA-compliant) from Pflitsch in the blueglobe CLEAN plus series, dedicated to production meeting high hygiene requirements, such as in the food, pharmaceutical or chemical industries. The glands in this series are characterised by their high resistance to aggressive cleaning agents and ease of cleaning, as well as the use of Soft-Squeeze technology, standard for all blueglobe glands. In addition, they are distinguished by their very high ingress protection with IP66, IP68 (up to 15 bar) and IP69 ratings. The product is equipped with an silicone sealing insert. It allows operation in a temperature range from -20 to +110°C.
Features of blueglobe CLEAN Plus HTS:
- Hygienic design in accordance with EHEDG guidelines
- Body made of PA6 polyamide (FDA-compliant)
- Sealing insert made of HTS silicone
- High sealing classes: IP66, IP68 (up to 15 bar) and IP69/-K
- High cable strain relief thanks to the flexible ‘Soft Squeeze’ pressure zone, complying with EN 62444
- Resistant to aggressive cleaning and disinfecting agents (tested by Ecolab, among others)
- Fully compliant with CE, RoHS, FDA 21 CFR §177.2600 and EU 10/2011
- Operating range -20 °C ... +110 °C
Applications
- Food and beverage industry
- Pharmaceutical and chemical industry
- CIP/SIP washers
| Part No. | Thread A |
Thread length D [mm] |
Sealing range max–min ø [mm] |
Mounting height C [mm] |
Spanner width SW x E [mm] |
Packing |
|---|---|---|---|---|---|---|
| bg 216PA HTS cp | M16x1.5 | 9.0 | 9.0 – 7.0 | 25.0 | 14/22x24.9 | 5 |
| bg 220PA HTS cp | M20x1.5 | 9.0 | 12.0 – 10.0 | 30.0 | 18/26x28.9 | 5 |
| bg 225PA15 HTS cp | M25x1.5 | 10.0 | 15.0 – 12.0 | 30.0 | 24/32x34.9 | 5 |
| bg 225PA HTS cp | M25x1.5 | 10.0 | 18.0 – 15.0 | 30.0 | 24/32x34.9 | 5 |
| bg 232PA21 HTS cp | M32x1.5 | 11.0 | 21.0 – 19.0 | 31.0 | 30/38x40.9 | 5 |
| bg 232PA HTS cp | M32x1.5 | 11.0 | 23.0 – 21.0 | 31.0 | 30/38x40.9 | 5 |
To download
Producer
Product code
blueglobe CLEAN Plus HTS
Series
Material
Polyamide - PA6
Insert material
Silicone
Thread
M16
, M20
, M25
, M32
Sealing range in millimeters
7-9 mm
, 10-12 mm
, 12-15 mm
, 15-18 mm
, 19-21 mm
, 21-23 mm
Thread length in millimeters
9
, 10
, 11
Product height in millimetres
34
, 39
, 40
, 42
Product width in millimeters
24.9
, 28.9
, 34.9
, 40.9
Ingress Protection
IP66
, IP69
Application features
Detergent resistant
Colour
Unpainted
Insert color
Blue
Temperature range
-20...+110°C
Certificate
DIN EN 62444
, DIN EN 1672-2:2009
, CFR 21
, EHEDG
