Pflitsch blueglobe AC (for steel-armoured cables) - brass nickel-plated EMC cable gland with TPE sealing insert
- blueglobe AC (for steel-armoured cables)- brass nickel-plated EMC cable gland with TPE sealing is an EMC cable gland by Pflitsch. Effective against EMC radiation thread: M20-M85, protection degree: IP68 (up to15 bar).
Pflitsch blueglobe AC (for steel-armoured cables)

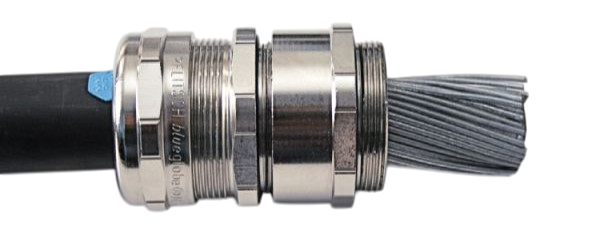

EMC cable gland made of nickel-plated brass with an exceptionally wide clamping range. This product is available with threads from M20 to M85, offers sealing up to IP68 (up to 15 bar), and includes a sealing insert made of TPE.
Features of blueglobe AC (for steel-armoured cables):
- Special design for steel-armoured cables
- Nickel-plated brass body
- Metric thread connection compliant with EN 60423
- HNBR O-ring sealing
- Protection rating IP68 up to 15 bar, Type 4X
- Strain relief up to class B
- Special versions: 15 mm thread (up to M63) and stainless steel (on request)
Applications:
- Industrial installations with armoured cables
- Systems requiring high mechanical resistance
- Applications in harsh environmental conditions
- Critical infrastructure and energy sector
- Mining and petrochemical industry

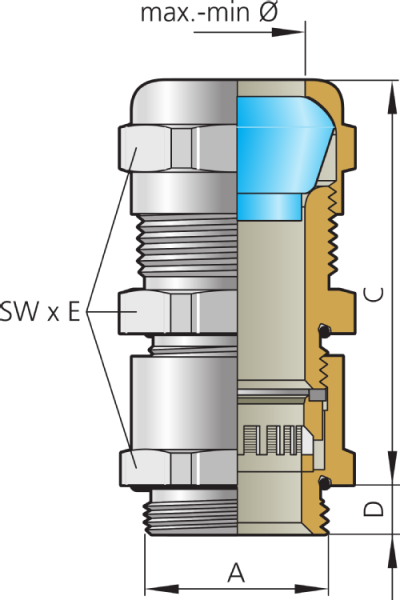

| Part No. | Thread A | Thread length D [mm] | Sealing range max–min ø [mm] | Sealing range without inlet max–min ø [mm] | Sealing range with inlet max–min ø [mm] | Clamping range max–min ø [mm] | Mounting height C [mm] | Spanner width SW x E [mm] | Packing |
|---|---|---|---|---|---|---|---|---|---|
| 220bg220msAC11 | M20x1,5 | 6,5 | 14,0–9,0 | 14,0–9,0 | 11,0–8,0 | 51,0 | 24x26,5 | 25 | |
| 220bg220msAC13 | M20x1,5 | 6,5 | 14,0–9,0 | 14,0–9,0 | 13,0–9,0 | 51,0 | 24x26,5 | 25 | |
| 220bg225msAC15 | M20x1,5 | 6,5 | 20,0–11,0 | 20,0–16,0 | 16,0–11,0 | 15,0–10,0 | 51,0 | 30x33 | 25 |
| 225bg225msAC17 | M25x1,5 | 7,5 | 20,0–16,0 | 20,0–16,0 | 17,0–14,0 | 52,0 | 30x33 | 25 | |
| 232bg232msAC23 | M32x1,5 | 8,0 | 25,0–20,0 | 25,0–20,0 | 23,0–19,0 | 59,0 | 36x39,5 | 10 | |
| 232bg240msAC25 | M32x1,5 | 8,0 | 32,0–20,0 | 32,0–26,0 | 26,0–20,0 | 25,0–21,0 | 62,0 | 45x48 | 10 |
| 232bg240msAC27 | M32x1,5 | 8,0 | 32,0–20,0 | 32,0–26,0 | 26,0–20,0 | 27,0–23,0 | 62,0 | 45x48 | 10 |
| 240bg240msAC31 | M40x1,5 | 8,0 | 32,0–26,0 | 32,0–26,0 | 31,0–28,0 | 62,0 | 45x48 | 10 | |
| 250bg250msAC36 | M50x1,5 | 10,0 | 42,0–31,0 | 42,0–35,0 | 35,0–31,0 | 36,0–30,0 | 65,0 | 57x61 | 10 |
| 250bg250msAC40 | M50x1,5 | 10,0 | 42,0–35,0 | 42,0–35,0 | 40,0–34,0 | 65,0 | 57x61 | 10 | |
| 263bg263msAC46 | M63x1,5 | 10,0 | 54,0–41,0 | 54,0–46,0 | 46,0–41,0 | 46,0–39,0 | 67,0 | 68x72 | 5 |
| 263bg263msAC51 | M63x1,5 | 10,0 | 54,0–46,0 | 54,0–46,0 | 51,0–45,0 | 70,0 | 68x72 | 5 | |
| 275bg275msAC61 | M75x1,5 | 15,0 | 65,0–54,0 | 65,0–58,0 | 58,0–54,0 | 61,0–50,0 | 86,0 | 81x87 | 5 |
| 285bg285msAC70 | M85x2,0 | 15,0 | 77,0–65,0 | 77,0–70,0 | 70,0–65,0 | 70,0–60,0 | 87,0 | 95x102 | 1 |
| 285bg285msAC78 | M85x2,0 | 15,0 | 77,0–65,0 | 77,0–70,0 | 70,0–65,0 | 74,0–70,0 | 89,0 | 95x102 | 1 |
To download
Producer
Product code
blueglobe AC (for steel-armoured cables)
Series
Material
Nickel-plated Brass
Insert material
Thermoplastic elastomer - TPE
Thread
M20
, M32
, M40
, M50
, M63
, M75
, M85
Sealing range in millimeters
9-14 mm
, 11-20 mm
, 16-20 mm
, 20-25 mm
, 20-32 mm
, 26-32 mm
, 31-42 mm
, 35-42 mm
, 41-54 mm
, 46-54 mm
, 54-65 mm
, 65-77 mm
Thread length in millimeters
6.5
, 7.5
, 8
, 10
, 15
Product height in millimetres
57.5
, 59.5
, 67
, 70
, 75
, 77
, 80
, 101
, 102
, 104
Product width in millimeters
26.5
, 33
, 39.5
, 48
, 61
, 72
, 87
, 102
Ingress Protection
IP68
Application features
EMC
, For armoured cables
Colour
Unpainted
Insert color
Blue
Certificate
EN 60423
Temperature range
-40...+130°C
