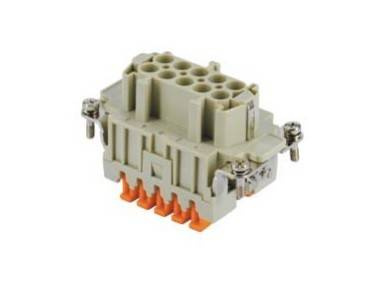

Ilme CSHF 10 - female industrial insert

  • Ilme CSHF 10 is industrial insert from Squich series. Product is size 57.27, can hold 10 poles + PE and work with a current of 16A and 500V.
Ilme CSHF 10 - female industrial insert
Number of pins: 10 + PE
Voltage: 500V
Electric current: 16A
Gender: Female
Termination method: Crimp termination
Compatible with: 10 B / 57.27
Contact size / Cable diameter: 26-14 AWG / 0.13 - 2.1 mm²
32,10 zł
/ pc. net
Easy return of products within 14 days from the date of purchase without giving reasons

Ilme CSHF 10

CSHF 10 is female industrial insert from Squich series. Product is size 57.27, can hold 10 poles + PE and work with a current of 16A and 500V. Ingress protection: IP20.

To download
Producer
Product code
CSHF 10
Series
Certificate
DNV-GL
,
BV
,
EAC
,
UL 1977 ECBT2.E235076
,
CSA-C22.2 No. 182.3 ECBT8.E235076
,
EN 61984:2009-06
,
CQC
,
UL 2237 PVVA2.E318390
,
CSA-C22.2 No. 182.3 PVVA8.E318390
Number of cycles
500
Number of pins
10 + PE
Material
Polycarbonate - PC UL 94 V-0
Voltage
500V
Electric current
16A
Gender
Female
Temperature range
-40...+125°C
Termination method
Crimp termination
Compatible with
10 B / 57.27
Signal
Electric
Contact size / Cable diameter
26-14 AWG / 0.13 - 2.1 mm²
