Ilme CR Q08E - coding pin

  • CR Q08E coding pin designed for CQ 08E inserts. Red colour product.
Ilme CR Q08E - coding pin
Colour: Red
Compatible with: 32.13 - CQA / MQA 08
0,60 zł
/ pc. excl. VAT
Easy return of products within 14 days from the date of purchase without giving reasons

Ilme CR Q08E

Coding pin for CQ 08E connector inserts (both male CQM 08E and female CQF 08E). Red colour product. The width of the pin is 14 mm, length is 3 mm and height is 2 mm.

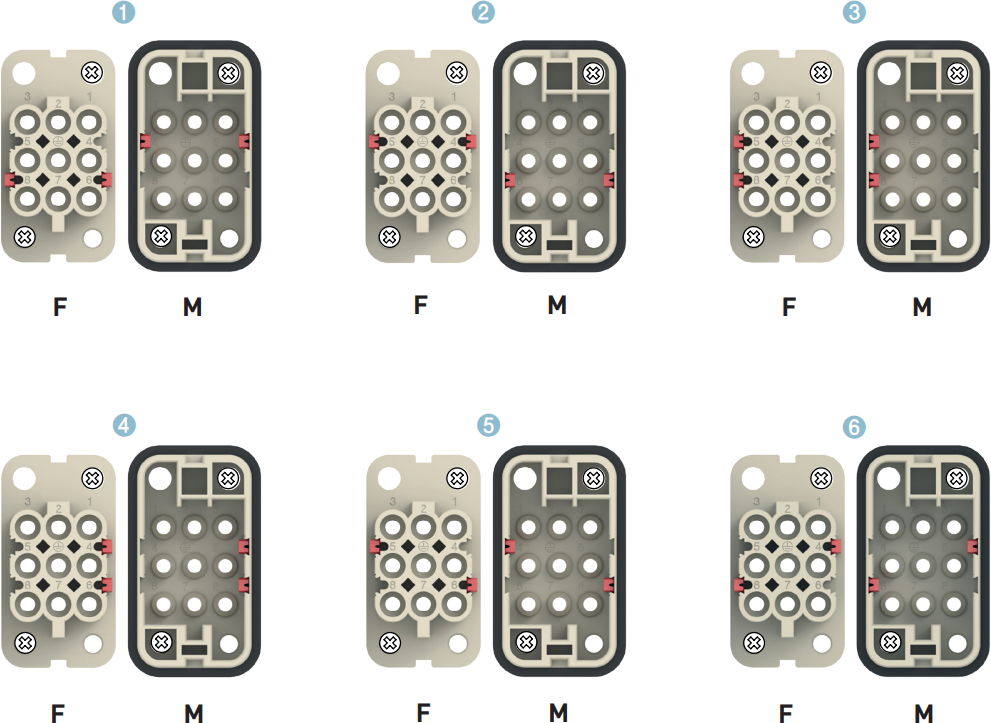

Thanks to the use of the coding pin, it is possible to obtain up to 6 different codes (see the figure below). 4 pins are required for connector coupling (two to be installed on each insert).

CR Q08E coding options

To download
Producer
Ilme
Product code
CR Q08E
Series
CQ
Product length in millimeters
3
Colour
Red
Compatible with
32.13 - CQA / MQA 08
Product width in millimeters
14
Product height in millimetres
2
