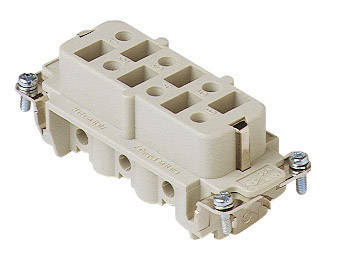

Ilme CPF 06 - female insert
- CPF 06 is a polycarbonate female insert, size 77.27. Equipped with 6 poles + PE, and screw terminal connection, the product can work with a current of 35 A and a voltage of 400/690 V. Made in RAL 7032 colour.
Ilme CPF 06
Polycarbonate CPF 06 female insert, size 77.27. The product from the Ilme CP line has 6 poles + PE and a screw terminal connection. It withstands a current of 35 A and a voltage of 400/690 V, and the rated impulse withstand voltage for the presented product is 6 kV. The tightness class of the insert is IP20 without enclosure (IP44/IP66/IP68/IP69 with enclosure). The operating temperature range is -40...+125°C. The product has a V-0 flammability class in accordance with the UL 94 standard. The insert is in RAL 7032 colour.
To download
Producer
Product code
CPF 06
Series
Certificate
DNV-GL
, EN 61984:2009-06
, CQC
, BV
, EAC
, UL ECBT2
, CSA
Number of cycles
500
Number of pins
6 + PE
Material
Polycarbonate - PC UL 94 V-0
Voltage
400/690V
Gender
Female
Contact size / Cable diameter
16-10 AWG / 1.3 - 5.3 mm²
Temperature range
-40...+125°C
Termination method
Screw termination
Electric current
35A
Signal
Electric
Compatible with
16 B / 77.27
