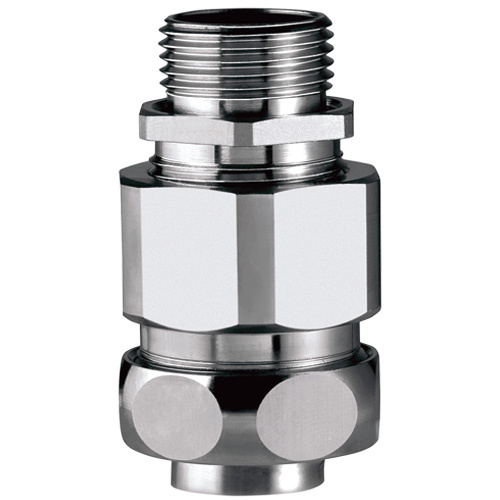

Flexa USZ-M - metal connector for corrugated tubings

  • USZ-M is a metal, straight Flexa connector made of nickel-plated brass with a metric external thread. The set includes a clamping sleeve [brass], seal [TPE], and O-ring [NBR
Flexa USZ-M - metal connector for corrugated tubings
Material: Nickel-plated Brass
Ingress Protection: IP40, IP54, IP67
Colour: Unpainted
Ask about the product

Flexa USZ-M

Flexa USZ-M is a simple metal connector with metric thread, made of nickel-plated brass, designed for SPR-PA, SPR-PU-F, SPR-PVC-AS, and SPR-PU-AS protective pipes. It provides IP67 protection (according to EN 60529). The set includes a clamping sleeve [brass], seal [TPE], and O-ring [NBR]. The operating temperature range of the connector is from -40°C to +100°C.



Connector features:

  • high water and dust resistance
  • cable and threaded connector lock
  • proper grounding
  • cable end covers
  • resistance to vibration and stress

Applications:

  • machine and equipment construction
  • automotive / railway industry
  • shipbuilding industry / automation / electrical installations

USZ-M - IP40, metric thread, compatible with SPR-AS, SPR-VA

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15016327112 10.0 M12 x 1.5 8.0 10.0 6.5 19.0 10.0 43.0 15 16 2.090 10
15016327116 14.0 M16 x 1.5 10.0 14.0 9.0 23.0 10.0 48.0 18 21 4.070 10
15016327120 17.0 M20 x 1.5 14.0 17.0 11.5 27.0 10.0 48.0 24 24 5.390 10
15016327020 21.0 M20 x 1.5 18.0 21.0 16.0 31.0 10.0 48.0 24 29 6.990 10
15016327125 21.0 M25 x 1.5 18.0 21.0 16.0 31.0 11.0 54.0 30 29 7.210 10
15016327025 27.0 M25 x 1.5 23.0 27.0 21.0 31.0 11.0 61.0 30 36 13.200 10
15016327132 27.0 M32 x 1.5 27.0 27.0 21.0 39.0 13.0 65.0 36 36 14.650 10
15016327140 36.0 M40 x 1.5 31.0 36.0 27.5 48.0 13.0 68.0 46 46 23.870 5
15016327150 45.0 M50 x 1.5 40.0 45.0 35.0 57.0 14.0 74.0 55 54 31.150 5
15016327163 56.0 M63 x 1.5 51.0 56.0 45.0 70.0 14.0 81.0 70 66 34.000 5

USZ-M - IP67, metric thread, compatible with SPR-PA, SPR-PU-F, SPR-PVC-AS, and SPR-PU-AS

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15016328112 10.0 M12 x 1.5 7.0 10.0 6.0 19.0 10.0 43.0 15 16 2.090 10
15016328116 14.0 M16 x 1.5 10.0 14.0 8.5 23.0 10.0 48.0 18 21 4.070 10
15016328120 17.0 M20 x 1.5 13.0 17.0 11.5 27.0 10.0 48.0 24 24 5.390 10
15016328020 21.0 M20 x 1.5 17.0 21.0 15.5 31.0 10.0 48.0 24 29 6.990 10
15016328125 21.0 M25 x 1.5 18.0 21.0 16.0 31.0 11.0 54.0 30 29 7.210 10
15016328025 27.0 M25 x 1.5 22.0 27.0 20.5 31.0 11.0 61.0 30 36 13.200 10
15016328132 27.0 M32 x 1.5 27.0 27.0 21.0 39.0 13.0 65.0 36 36 14.650 10
15016328140 36.0 M40 x 1.5 29.0 36.0 27.5 48.0 13.0 68.0 46 46 23.870 5
15016328150 45.0 M50 x 1.5 38.0 45.0 35.0 57.0 14.0 74.0 55 54 31.150 5
15016328163 56.0 M63 x 1.5 49.0 56.0 45.0 70.0 14.0 81.0 70 66 34.000 5

USZ-M - IP40, metric thread, compatible with FLEXAgraff-PU-AS, FLEXAgraff-PU-F

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15016327112 10.0 M12 x 1.5 8.0 10.0 6.5 19.0 10.0 43.0 15 16 2.090 10
15016339016 14.0 M16 x 1.5 12.0 14.0 9.0 23.0 10.0 48.0 18 21 4.070 10
15016327120 17.0 M20 x 1.5 14.0 17.0 11.5 27.0 10.0 48.0 24 24 5.390 10
15016327020 21.0 M20 x 1.5 18.0 21.0 16.0 31.0 10.0 48.0 24 29 6.990 10
15016327125 21.0 M25 x 1.5 18.0 21.0 16.0 31.0 11.0 54.0 30 29 7.210 10
15016339025 27.0 M25 x 1.5 24.0 27.0 21.0 39.0 11.0 61.0 30 36 13.200 10
15016339132 27.0 M32 x 1.5 27.0 27.0 21.0 39.0 13.0 65.0 36 36 14.650 10
15016328140 36.0 M40 x 1.5 31.0 36.0 27.5 48.0 13.0 68.0 46 46 23.870 5
15016327150 45.0 M50 x 1.5 40.0 45.0 35.0 57.0 14.0 74.0 55 54 31.150 5
15016327163 56.0 M63 x 1.5 51.0 56.0 45.0 70.0 14.0 81.0 70 66 34.000 5

USZ-M - IP67; OD45 IP 65, metric thread, compatible with FLEXAgraff-PU-AS, FLEXAgraff-PU-F

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15016328112 10.0 M12 x 1.5 7.0 10.0 6.0 19.0 10.0 43.0 15 16 2.090 10
15016327116 14.0 M16 x 1.5 11.0 14.0 7.5 23.0 10.0 48.0 18 21 4.070 10
15016328120 17.0 M20 x 1.5 13.0 17.0 11.5 27.0 10.0 48.0 24 24 5.390 10
15016328020 21.0 M20 x 1.5 17.0 21.0 15.5 31.0 10.0 48.0 24 29 6.990 10
15016340025 27.0 M25 x 1.5 23.0 27.0 20.5 39.0 11.0 61.0 30 36 13.200 10
15016328132 27.0 M32 x 1.5 27.0 27.0 21.0 39.0 13.0 65.0 36 36 14.650 10
15016328140 36.0 M40 x 1.5 29.0 36.0 27.5 48.0 13.0 68.0 46 46 23.870 5
15016328150 45.0 M50 x 1.5 38.0 45.0 35.0 57.0 14.0 74.0 55 54 31.150 5
15016328163 56.0 M63 x 1.5 49.0 56.0 45.0 70.0 14.0 81.0 70 66 34.000 5

USZ-M - IP54, metric thread, compatible with AIRflex-KUW-EDU

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15017328116 14.0 M16 x 1.5 10.0 14.0 8.5 23.0 10.0 48.0 18 21 4.070 10
15017335120 17.0 M20 x 1.5 12.0 17.0 12.5 27.0 10.0 48.0 24 24 5.390 10
15017335020 21.0 M20 x 1.5 15.0 21.0 16.0 31.0 10.0 48.0 24 29 6.990 10
15017335025 21.0 M25 x 1.5 18.0 21.0 16.0 31.0 11.0 54.0 30 29 7.210 10
15017335025 27.0 M25 x 1.5 23.0 27.0 21.0 31.0 11.0 61.0 30 36 13.200 10
15017335032 27.0 M32 x 1.5 27.0 27.0 21.0 39.0 13.0 65.0 36 36 14.650 10
15017328140 36.0 M40 x 1.5 29.0 36.0 27.5 48.0 11.0 39.0 46 45 23.870 10
15017335150 45.0 M50 x 1.5 37.0 45.0 35.0 57.0 12.0 42.0 55 54 31.150 5
15017335163 56.0 M63 x 1.5 48.0 56.0 45.0 70.0 12.0 46.0 65 66 34.000 5

USZ-M - IP40, metric thread, compatible with SPR-CU-AS and SPR-EDU-AS

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15017328112 10.0 M10 x 1.0 7.0 10.0 6.0 19.0 8.0 26.0 15 17 2.090 10
15017328116 14.0 M12 x 1.5 10.0 14.0 7.5 23.0 8.0 27.0 21 21 4.070 10
15017328120 17.0 M16 x 1.5 13.0 17.0 11.5 27.0 8.0 27.0 24 25 5.390 10
15017328020 21.0 M20 x 1.5 17.0 21.0 15.5 31.0 10.0 30.0 30 29 6.990 10
15017328025 27.0 M25 x 1.5 22.0 27.0 20.5 39.0 11.0 37.0 36 36 13.200 10
15017328032 36.0 M32 x 1.5 29.0 36.0 27.5 48.0 11.0 39.0 46 45 23.870 10
15017328140 45.0 M40 x 1.5 38.0 45.0 35.0 57.0 12.0 42.0 55 54 31.150 5
15017328150 56.0 M50 x 1.5 49.0 56.0 45.0 70.0 12.0 46.0 65 66 34.000 5

USZ-M - IP40, metric thread, compatible with FLEXAgraff-CU-AS

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15018328112 10.0 M10 x 1.0 7.0 10.0 6.0 19.0 8.0 26.0 15 17 2.090 10
15018327116 14.0 M12 x 1.5 11.0 14.0 9.0 23.0 8.0 27.0 21 21 4.070 10
15018328120 17.0 M16 x 1.5 13.0 17.0 11.5 27.0 8.0 27.0 24 25 5.390 10
15018328020 21.0 M20 x 1.5 17.0 21.0 15.5 31.0 10.0 30.0 30 29 6.990 10
15018340025 27.0 M25 x 1.5 22.0 27.0 20.5 39.0 11.0 37.0 36 36 13.200 10
15017340032 27.0 M32 x 1.5 27.0 27.0 21.0 39.0 13.0 65.0 36 36 14.650 10
15018328140 36.0 M40 x 1.5 29.0 36.0 27.5 48.0 13.0 68.0 46 46 23.870 5
15018328150 45.0 M50 x 1.5 38.0 45.0 35.0 57.0 14.0 74.0 55 54 31.150 5
15018328163 56.0 M63 x 1.5 49.0 56.0 45.0 70.0 14.0 81.0 70 66 34.000 5
To download
Producer
Flexa
Product code
USZ-M
Series
USZ-M
Thread
M10
,
M12
,
M16
,
M20
,
M25
,
M32
,
M40
,
M50
,
M63
Material
Nickel-plated Brass
Ingress Protection
IP40
,
IP54
,
IP67
Tubing outer diameter (mm)
10 mm
,
14 mm
,
17 mm
,
21 mm
,
27 mm
,
36 mm
,
45 mm
,
56 mm
Product width in millimeters
19
,
23
,
27
,
31
,
39
,
48
,
57
,
70
Product height in millimetres
26
,
27
,
30
,
37
,
39
,
42
,
43
,
46
,
48
,
54
,
61
,
65
,
68
,
74
,
81
Wysokość towaru w centymetrach
Temperature range
-40...+100°C
Colour
Unpainted
