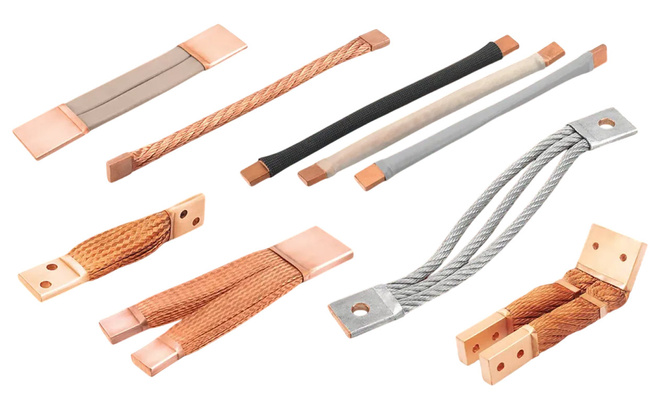

Druseidt - Highly flexible high current copper connections
- Druseidt - highly flexible high current copper connections.
Highly flexible high current copper connections by Druseidt are comprehensive current-carrying components for compensating vibrations, displacements and thermal expansion in power circuits. Made of rolled copper tapes or multi-wire copper cables, they offer exceptional flexibility while maintaining high current-carrying capacity and mechanical durability. The manufacturer's range covers a wide spectrum of technical possibilities for both standard and special solutions, with connection widths from 20 to 200 mm and cross-sections from 25 to 6000 mm².
Characteristics and design
Druseidt products are made of bare or tinned wires, braided as tapes or round strands. Their exceptional flexibility results from the use of very thin single wires with a diameter of 0.07 mm or 0.10 mm. Thanks to this, and the multilayer construction of braided tapes, they also feature a very large conductor surface, enabling the transfer of high currents.
Cable ends are crimped solderlessly from seamless sleeves made of E-copper/ETP copper under high pressure. The special crimping technology ensures a high degree of compression and forming, creating extremely compact contact areas. This results in the production of connections with exceptionally favourable and optimised contact and connection resistances.
Lower electrical resistance of the current-carrying element translates into lower electrical energy losses and improved ageing resistance of the component and current connection. Using these high-quality products minimises power losses and improves the service life of the electrical connection.
Range of Druseidt's highly flexible high current copper connections
Highly flexible copper current connectors from flat braids The most universal solution for high current transmission in demanding applications. They are characterised by high flexibility and easy adaptation to various connection configurations.
- cross-sections 25–4500 mm²
- E-copper braid
- optionally tinned
- rectangular ends
- possibility of insulation (PVC, silicone, fibreglass, heat-shrinkable tubes)
Air-cooled high-current cables from round copper strands
Designed for applications requiring lightweight construction, good flexibility and high durability. Used where variable mechanical movements and reliable connections are crucial.
- wire Ø 0.10 mm (standard) or 0.30 mm
- cable eyelet ends
- PVC or alternative insulation.
High-current cables with fire protection hose
Dedicated to installations in environments exposed to high temperatures, open flames and metal splashes. They are used, among others, in metallurgy, glass industry and power engineering.
- calcium silicate sleeves + silicone coating
- resistance up to +1100 °C (short-term)
- eyelet ends.
Adaptation possibilities
- Connections with 90° contact areas
- Various end widths
- Branches and additional current outlets
- Clamping devices (e.g. for electrodes)
- Connections made of multiple strands for greater mobility
- Angled and pre-formed designs
- Special insulations: silicone, fibreglass, heat-shrinkable
- Y-shapes and individual drillings (e.g. according to patterns I–III)
Typical applications
- Power generation and distribution (power plants, substations)
- Transformer–generator–busbar connections
- Stress compensation in busbar systems and switchboards
- Welding industry: welding guns, resistance welders
- High-temperature environments: metallurgical, glass, chemical, railway industry
