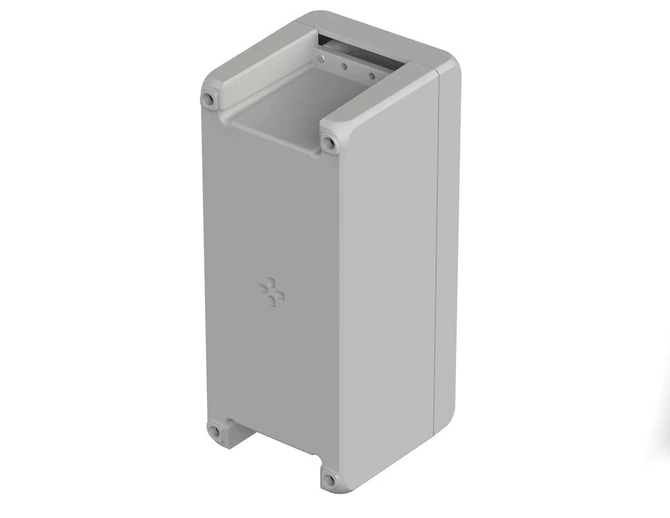

Bopla BA-S 180809 F-7035 (00164135)

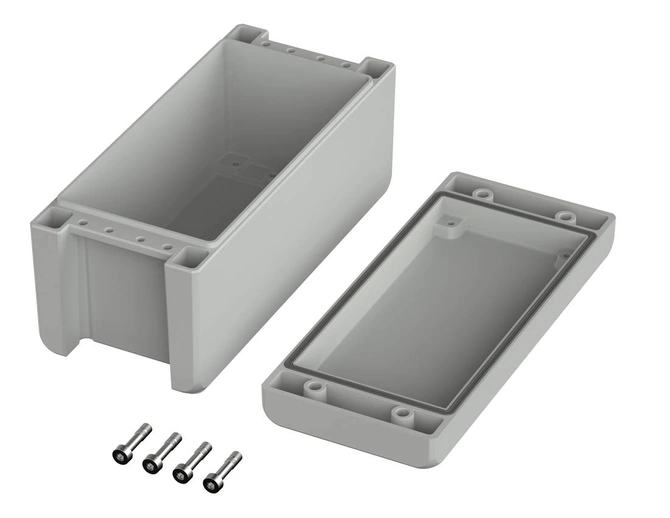

A modern, design-oriented industrial enclosure made of aluminum while maintaining high protection standards. Secured with screws. The cover features a recess for mounting flush displays and keyboards, while providing ample space on the sides for cable glands. A precisely installed neoprene gasket ensures a high degree of protection, IP 69 according to DIN EN 60529. It complies with R1 or R7 requirements according to DIN EN 45545-2 for hazard level HL3 and UL certification requirements. It has achieved an impact protection rating of IK07 according to IEC 62262. In terms of shape, the aluminum Bocube Alu enclosure line corresponds to the plastic Bocube enclosures, allowing for a consistent marketing image of devices. Custom colors, including unpainted enclosures, are available upon request. The package includes both the top and bottom of the enclosure along with mounting screws.

We separately provide custom-sized mast mounting brackets for enclosure installation on poles (mast mounting), along with steel clamps, mounting plates, DIN rails, pressure equalization valves, and handles for carrying the enclosure installed on the cover. If you are interested in these accessories, please feel free to contact us.
