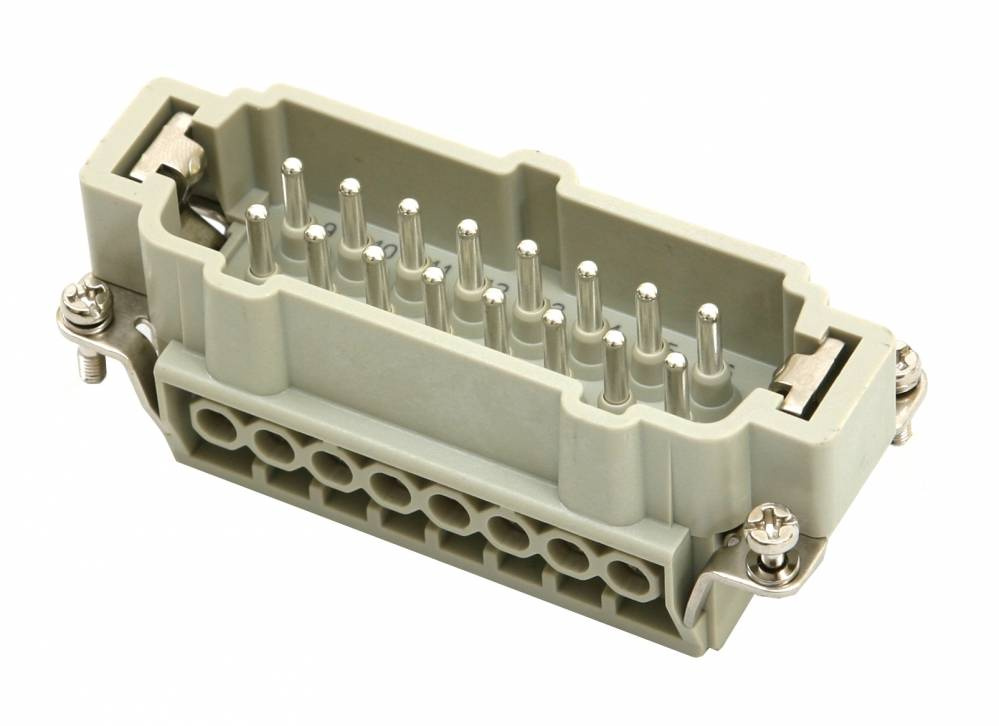

Harting 09 33 016 2601 - industrial connector insert

  • 09 33 016 2601 is a standard insert of Harting's rectangular connector. Male insert with screw termination. Rated current: ‌16A, size: 16 B, contacts: 16, conductor cross-section: 0.75 ... 2.5 mm². In RAL 7032 colour.
Harting 09 33 016 2601 - industrial connector insert
Number of pins: 16 + PE
Voltage: 500V
Gender: Male
Termination method: Screw termination
Compatible with: 16 B / 77.27
Electric current: 16A
41,26 zł
/ pc. net
Easy return of products within 14 days from the date of purchase without giving reasons

Harting 09 33 016 2601

Harting 09 33 016 2601 is a standard male rectangular connector insert. This product can work with a 16A and 500V current, has 16 fields for contacts and 16 B size. Conductor cross-section: 0.75 ... 2.5 mm². Operating temperature range: -40 ... +125 °C.

To download
Producer
Product code
09 33 016 2601
Series
Certificate
DNV-GL
,
EN 60664-1
,
IEC 61984
,
UL 1977 ECBT2.E235076
,
UL 2237 PVVA2.E318390
,
CSA-C22.2 No. 182.3 PVVA8.E318390
Number of cycles
Regular
Number of pins
16 + PE
Material
Polycarbonate - PC UL 94 V-0
Voltage
500V
Contact size / Cable diameter
18-14 AWG / 0.82 - 2.1 mm²
Gender
Male
Temperature range
-40...+125°C
Termination method
Screw termination
Compatible with
16 B / 77.27
Electric current
16A
Signal
Electric
