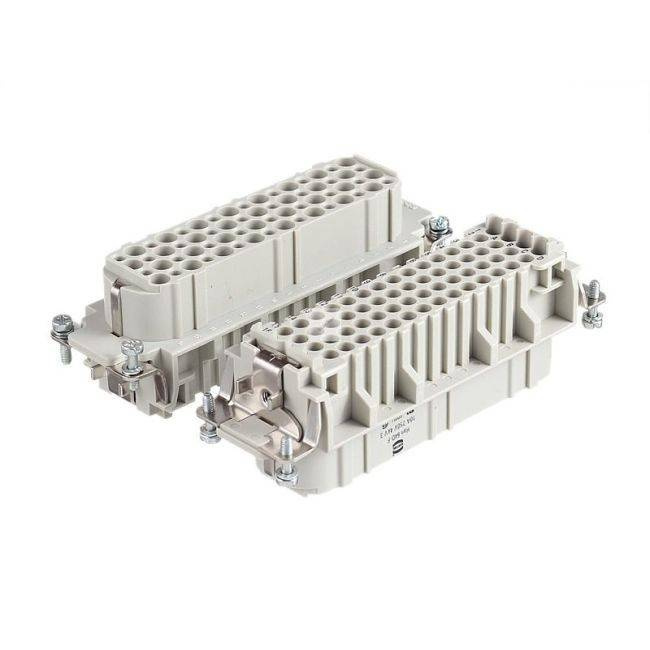

Harting 09 21 064 3101 - female insert

  • 09 21 064 3101 is a female 24B connector insert, made of polycarbonate. It has space for 64 contacts (including PE) and allows the use of a conductor with a cross-section of 0.14...2.5 mm². The maximum current which the cartridge can work with is 10 A.
Harting 09 21 064 3101 - female insert
Harting 09 21 064 3101 - female insert
Harting 09 21 064 3101 - female insert
Harting 09 21 064 3101 - female insert
Number of pins: 64 + PE
Voltage: 250V
Gender: Female
Termination method: Clamp termination
Electric current: 10A
Compatible with: 24 B / 104.27
56,15 zł
/ pc. net
Easy return of products within 14 days from the date of purchase without giving reasons

Harting 09 21 064 3101

Polycarbonate female crimp insert for industrial connector, size 24B. The product has space for 64 contacts with PE (sold separately) and allows the use of a conductor with a cross-section of 0.14...2.5 mm² (26-12 AWG). The product can operate with a current of 10 A and a voltage of 250 V. The rated impulse voltage of the product is 4 kV. The insert operating temperature range is -40 ... + 125°C (it has the V0 flammability class according to UL94). Color RAL 7032.

To download
Producer
Product code
09 21 064 3101
Series
Certificate
DNV-GL
,
EN 61984:2009-06
,
UL ECBT2
,
cUL ECBT8
,
EN 175301-801
,
IEC 61984
Number of cycles
500
Number of pins
64 + PE
Material
Polycarbonate - PC
Voltage
250V
Gender
Female
Contact size / Cable diameter
26-14 AWG / 0.13 - 2.1 mm²
Temperature range
-40...+125 degrees Celsius
Termination method
Clamp termination
Electric current
10A
Signal
Electric
Compatible with
24 B / 104.27
