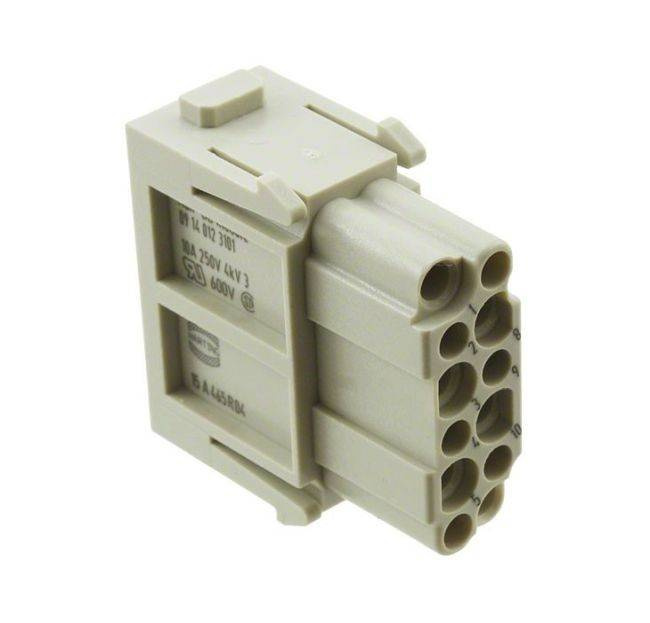

Harting 09 14 012 3101 - female module

  • 09 14 012 3101 is a female module from the Han-Modular series made of polycarbonate. It has 12 contacts. The permissible current parameters for the module are 10A and 250V.
Harting 09 14 012 3101 - female module
Number of pins: 12
Voltage: 250V
Gender: Female
Termination method: Crimp termination
Electric current: 10A
Compatible with: 1 module
13,15 zł
/ pc. net
Easy return of products within 14 days from the date of purchase without giving reasons
Harting 09 14 012 3101 - female module
Harting 09 14 012 3101 - female module

Harting 09 14 012 3101

Female module, made of polycarbonate in RAL 7032 colour. It contains 12 contacts and crimp termination. Enables the use of 0.14 ... 2.5 mm² cross-section conductor. Limiting temperature: -40 ... +125 degrees Celsius. The permissible current parameters for the module are 10A and 250V.

The manufacturer suggests not to use the presented component in new projects. In this case, we recommend using a successor (09 14 012 3102). If in doubt, please contact our sales department to select an alternative solution.

To download
Producer
Product code
09 14 012 3101
Certificate
DNV-GL
,
EN 60664-1
,
IEC 61984
,
UL 1977 ECBT2.E235076
,
UL 2237 PVVA2.E318390
,
CSA-C22.2 No. 182.3 PVVA8.E318390
Number of cycles
500
Number of pins
12
Material
Polycarbonate - PC
Voltage
250V
Gender
Female
Contact size / Cable diameter
26-14 AWG / 0.13 - 2.1 mm²
Temperature range
-40...+125 degrees Celsius
Termination method
Crimp termination
Electric current
10A
Signal
Electric
Compatible with
1 module
