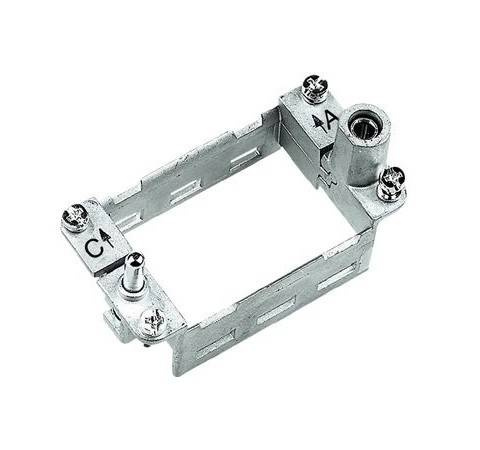

Harting 09 14 010 0303 - hinged frame

  • 09 14 010 0303 is a hinged frame for a modular industrial connector of size 10B. The frame is designed for three A ... C modules. The product made of zinc die-cast additionally allows the use of a PE conductor.
Harting 09 14 010 0303 - hinged frame
Compatible with: 10 B / 57.27
Termination method: Screw termination
57,36 zł
/ pc. net
Easy return of products within 14 days from the date of purchase without giving reasons
Harting 09 14 010 0303 - hinged frame
Harting 09 14 010 0303 - hinged frame

Harting 09 14 010 0303

Hinged frame for a modular rectangular connector of size 10B. Made of zinc die-cast. It is designed for three A ... C modules. It enables the use of a PE conductor with a 4 ... 10 mm² (power side) and 1 ... 2.5 mm² (signal side) cross-section. Limiting temperature: -40...+125 degrees Celsius.

The manufacturer suggests not to use the presented component in new projects. In this case, we recommend using a successor (09 14 010 0361). If in doubt, please contact our sales department to select an alternative solution.

To download
Producer
Product code
09 14 010 0303
Compatible with
10 B / 57.27
Termination method
Screw termination
