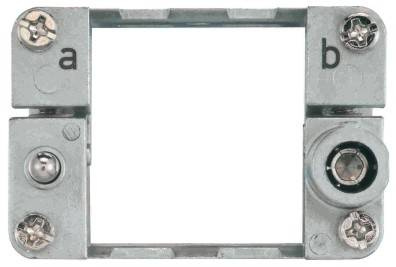

Harting 09 14 006 0313 - hinged frame

  • 09 14 006 0313 is a size 6B hinge frame for modular connectors. Accommodates two modules a ... b. Enables the use of a PE conductor with a cross-section of 4 ... 10 mm² (supply side) and 1 ... 2.5 mm² (signal side).
Harting 09 14 006 0313 - hinged frame
Compatible with: 6 B / 44.27
Termination method: Screw termination
16,61 €
/ pc. excl. VAT
20,43 € / pc. gross

Harting 09 14 006 0313

Hinge frame size 6B used in modular connectors. Made of zinc die-cast. It has space for two modules a ... b and enables the use of a PE conductor with a cross-section of 4 ... 10 mm² (supply side) and 1 ... 2.5 mm² (signal side). The product can operate in the temperature range -40...+125°C.

The manufacturer suggests not to use the presented component in new projects. In this case, we recommend using a successor (09 14 006 0371). If in doubt, please contact our sales department to select an alternative solution.

To download
Producer
Harting
Product code
09 14 006 0313
Series
Han-Modular
Compatible with
6 B / 44.27
Termination method
Screw termination
