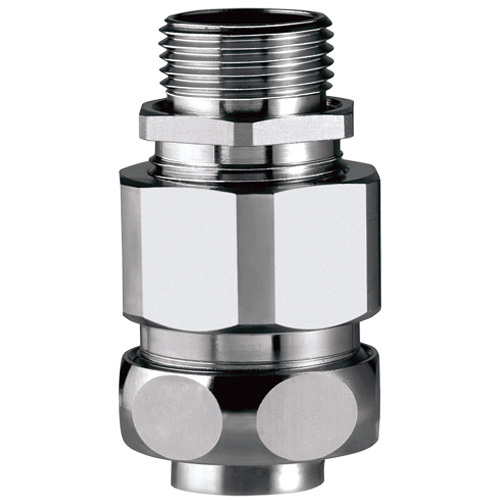

Flexa USZ-EX-M - metal connector for corrugated tubings

  • USZ-EX-M is a simple, safe metal connector made of nickel-plated brass with a metric external thread. The set includes a clamping sleeve [brass], seal [TPE], and O-ring [NBR], designed for use in Ex zones.
Flexa USZ-EX-M - metal connector for corrugated tubings
Material: Nickel-plated Brass
Ingress Protection: IP40
Colour: Unpainted
Ask about the product

Flexa USZ-EX-M

Flexa USZ-EX-M is a metal, straight, secure connector with a metric external thread, strain relief, containing a clamping sleeve [brass], seal [TPE], and O-ring [NBR], designed for use in Ex zones. The connector is made of nickel-plated brass. It provides IP40 protection (according to EN 60529). The operating temperature range of the connector is from -40°C to +100°C.


Connector features:

  • high water and dust resistance
  • cable and threaded connector lock
  • proper grounding
  • cable end covers
  • resistance to vibration and stress
  • increased safety “e” in accordance with EN 60079-0:2014, EN 60079-7:2016, EN 61241-0:2006, and EN 61241-1:2004

Applications:

  • machine and equipment construction
  • automotive/railway industry
  • shipbuilding industry
  • automation
  • electrical installations
  • applications in Ex zones in accordance with EN 1127-1

USZ-EX-M - IP40, metric thread, compatible with SPR-AS, SPR-VA (for EX areas)

FLEXA No. OD
[mm]		 Thread
type		 Clamping
Range
[mm]		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 WS3
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15023327120 17.0 M20 x 1.5 9.5-11.0 14.0 17.0 12.5 27.0 10.0 48.0 24 24 25 6.600 10
15023327020 21.0 M20 x 1.5 12.0-15.0 18.0 21.0 16.0 31.0 10.0 48.0 24 29 29 9.700 10
15023327125 21.0 M25 x 1.5 13.0-16.0 18.0 21.0 16.0 31.0 11.0 54.0 30 29 29 9.900 10
15023327132 27.0 M32 x 1.5 19.0-21.0 23.0 27.0 21.0 39.0 13.0 65.0 36 36 36 16.600 10

USZ-EX-M - IP40, metric thread, compatible with FLEXAgraff-PU-AS, FLEXAgraff-PU-F (for EX areas)

FLEXA No. OD
[mm]		 Thread
type		 Clamping
Range
[mm]		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 WS3
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15023327120 17.0 M20 x 1.5 9.5-11.0 14.0 17.0 12.5 27.0 10.0 48.0 24 24 25 6.600 10
15023327020 21.0 M20 x 1.5 12.0-15.0 18.0 21.0 16.0 31.0 10.0 48.0 24 29 29 9.700 10
15023327125 21.0 M25 x 1.5 13.0-16.0 18.0 21.0 16.0 31.0 11.0 54.0 30 29 29 9.900 10
15023339132 27.0 M32 x 1.5 19.0-21.0 24.0 27.0 21.0 39.0 13.0 65.0 36 36 36 16.600 10

USZ-EX-M - IP40, metric thread, compatible with SPR-CU-AS, SPR-EDU-AS (for EX areas)

FLEXA No. OD
[mm]		 Thread
type		 Clamping
Range
[mm]		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 WS3
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15024328120 17.0 M20 x 1.5 9.5-11.0 13.0 17.0 11.5 27.0 10.0 48.0 24 24 25 6.600 10
15023328020 21.0 M20 x 1.5 12.0-15.0 17.0 21.0 15.5 31.0 10.0 49.0 24 29 29 9.700 10
15024328125 21.0 M25 x 1.5 13.0-16.0 17.0 21.0 15.5 31.0 11.0 54.0 30 29 29 9.900 10
15024328132 27.0 M32 x 1.5 19.0-21.0 22.0 27.0 20.5 39.0 13.0 65.0 36 36 36 16.600 10
To download
Producer
Flexa
Product code
USZ-EX-M
Series
USZ-EX-M
Thread
M20
,
M25
,
M32
Material
Nickel-plated Brass
Ingress Protection
IP40
Tubing outer diameter (mm)
17 mm
,
21 mm
,
27 mm
Product width in millimeters
27
,
31
,
39
Product height in millimetres
48
,
49
,
54
,
65
Temperature range
-40...+100°C
Colour
Unpainted
