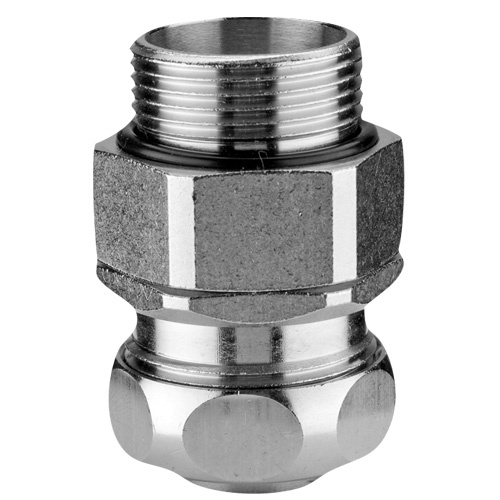

Flexa USDR-M - metal connector for corrugated tubings

  • USDR-M is a straight metal Flexa connector made of nickel-plated brass, with a turnable metric outer thread. It includes a ferrule, sealing, and an O-ring.
Flexa USDR-M - metal connector for corrugated tubings
Material: Nickel-plated Brass
Ingress Protection: IP40, IP54, IP67
Colour: Unpainted
Ask about the product

Flexa USDR-M

Flexa USDR-M is a metal, safety-type, straight connector with a turnable metric outer thread, designed for SPR-AS and SPR-VA protective conduits. It provides a protection class of IP40 (according to EN 60529). The connector body is made of nickel-plated brass. The set includes a ferrule (brass), sealing (TPE), and an O-ring (NBR). The operating temperature range of the connector is from -40°C to +125°C.



Connector features:

  • high tightness and dust-proofness
  • friction locking of conduit and screw connection
  • proper grounding
  • covering of conduit ends
  • vibration and tension-resistant

Applications:

  • machine and plant construction
  • automotive industry
  • railway industry
  • shipbuilding
  • automation
  • electrical installations

USDR-M - IP40, metric thread, compatible with SPR-AS, SPR-VA (Operating range: -40°C...+125°C)

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15013327012 10,0 M12 x 1,5 8,0 10,0 6,5 19,0 10,0 28,0 15 17 2,400 10
15013327016 14,0 M16 x 1,5 11,0 14,0 9,0 23,0 10,0 30,0 21 21 5,000 10
15013327020 17,0 M20 x 1,5 14,0 17,0 11,0 27,0 10,0 30,0 24 25 6,400 10
15013327025 21,0 M25 x 1,5 18,0 21,0 14,5 31,0 11,0 31,0 30 29 9,500 10
15013327032 27,0 M32 x 1,5 23,0 27,0 19,5 39,0 13,0 38,0 36 36 14,900 10
15013327040 36,0 M40 x 1,5 31,0 36,0 27,5 48,0 13,0 42,0 46 45 23,900 2
15013327050 45,0 M50 x 1,5 40,0 45,0 35,5 57,0 14,0 50,0 55 54 36,200 2
15013327063 56,0 M63 x 1,5 51,0 56,0 45,0 70,0 14,0 54,0 70 66 61,000 2

USDR-M - IP67, metric thread, compatible with SPR-PA, SPR-PU-F, SPR-PVC-AS, SPR-PU-AS (Operating range: -40°C...+125°C)

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15013328012 10,0 M12 x 1,5 7,0 10,0 6,0 19,0 10,0 28,0 15 17 2,400 10
15013328016 14,0 M16 x 1,5 10,0 14,0 8,5 23,0 10,0 30,0 21 21 5,000 10
15013328020 17,0 M20 x 1,5 13,0 17,0 11,5 27,0 10,0 30,0 24 25 6,400 10
15013328025 21,0 M25 x 1,5 17,0 21,0 15,5 31,0 11,0 31,0 30 29 9,500 10
15013328032 27,0 M32 x 1,5 22,0 27,0 20,5 39,0 13,0 38,0 36 36 14,900 10
15013328040 36,0 M40 x 1,5 29,0 36,0 27,5 48,0 13,0 42,0 46 45 23,900 2
15013328050 45,0 M50 x 1,5 38,0 45,0 35,0 57,0 14,0 50,0 55 54 36,200 2
15013328063 56,0 M63 x 1,5 49,0 56,0 45,0 70,0 14,0 54,0 70 66 61,000 2

USDR-M - IP40, metric thread, compatible with FLEXAgraff-PU-AS, FLEXAgraff-PU-F (Operating range: -40°C...+125°C)

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15013327012 10,0 M12 x 1,5 8,0 10,0 6,5 19,0 10,0 28,0 15 17 2,400 10
15013339016 14,0 M16 x 1,5 12,0 14,0 9,0 23,0 10,0 30,0 21 21 5,000 10
15013327020 17,0 M20 x 1,5 14,0 17,0 11,0 27,0 10,0 30,0 24 25 6,400 10
15013327025 21,0 M25 x 1,5 18,0 21,0 14,5 31,0 11,0 31,0 30 29 9,500 10
15013339032 27,0 M32 x 1,5 24,0 27,0 21,0 39,0 13,0 38,0 36 36 14,900 10
15013327040 36,0 M40 x 1,5 31,0 36,0 27,5 48,0 13,0 42,0 46 45 23,900 2
15013327050 45,0 M50 x 1,5 40,0 45,0 35,5 57,0 14,0 50,0 55 54 36,200 2
15013327063 56,0 M63 x 1,5 51,0 56,0 45,0 70,0 14,0 54,0 70 66 61,000 2

USDR-M - IP67; OD45 IP65, metric thread, compatible with FLEXAgraff-PU-AS, FLEXAgraff-PU-F (Operating range: -40°C...+125°C)

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15013328012 10,0 M12 x 1,5 7,0 10,0 6,0 19,0 10,0 28,0 15 17 2,400 10
15013327016 14,0 M16 x 1,5 11,0 14,0 9,0 23,0 10,0 30,0 21 21 5,000 10
15013328020 17,0 M20 x 1,5 13,0 17,0 11,5 27,0 10,0 30,0 24 25 6,400 10
15013328025 21,0 M25 x 1,5 17,0 21,0 15,5 31,0 11,0 31,0 30 29 9,500 10
15013340032 27,0 M32 x 1,5 23,0 27,0 20,5 39,0 13,0 38,0 36 36 14,900 10
15013328040 36,0 M40 x 1,5 29,0 36,0 27,5 48,0 13,0 42,0 46 45 23,900 2
15013328050 45,0 M50 x 1,5 38,0 45,0 35,0 57,0 14,0 50,0 55 54 36,200 2
15013328063 56,0 M63 x 1,5 49,0 56,0 45,0 70,0 14,0 54,0 70 66 61,000 2

USDR-M - IP54, metric thread, compatible with AIRflex-KUW-EDU (Operating range: -40°C...+250°C)

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15014328016 14,0 M16 x 1,5 10,0 14,0 8,5 23,0 10,0 30,0 21 21 5,000 10
15014335020 17,0 M20 x 1,5 12,0 17,0 11,0 27,0 10,0 30,0 24 25 6,400 10
15014335025 21,0 M25 x 1,5 15,0 21,0 14,5 31,0 11,0 31,0 30 29 9,500 10
15014335032 27,0 M32 x 1,5 20,0 27,0 19,5 39,0 13,0 38,0 36 36 14,900 10
15013328040 36,0 M40 x 1,5 29,0 36,0 27,5 48,0 13,0 42,0 46 45 23,900 2
15014335050 45,0 M50 x 1,5 37,0 45,0 35,0 57,0 14,0 50,0 55 54 36,200 2
15014335063 56,0 M63 x 1,5 48,0 56,0 45,0 70,0 14,0 54,0 70 66 61,000 2

USDR-M - IP40, metric thread, compatible with SPR-CU-AS, SPR-EDU-AS (Operating range: -40°C...+250°C)

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15014328012 10,0 M12 x 1,5 7,0 10,0 6,0 19,0 10,0 28,0 15 17 2,400 10
15014328016 14,0 M16 x 1,5 10,0 14,0 8,5 23,0 10,0 30,0 21 21 5,000 10
15014328020 17,0 M20 x 1,5 13,0 17,0 11,5 27,0 10,0 30,0 24 25 6,400 10
15014328025 21,0 M25 x 1,5 17,0 21,0 15,5 31,0 11,0 31,0 30 29 9,500 10
15014328032 27,0 M32 x 1,5 22,0 27,0 20,5 39,0 13,0 38,0 36 36 14,900 10
15014328040 36,0 M40 x 1,5 29,0 36,0 27,5 48,0 13,0 42,0 46 45 23,900 2
15014328050 45,0 M50 x 1,5 38,0 45,0 35,0 57,0 14,0 50,0 55 54 36,200 2
15014328063 56,0 M63 x 1,5 51,0 56,0 45,0 70,0 14,0 54,0 70 66 61,000 2

USDR-M - IP40, metric thread, compatible with FLEXAgraff-CU-AS (Operating range: -40°C...+250°C)

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15014328012 10,0 M12 x 1,5 7,0 10,0 6,0 19,0 10,0 28,0 15 17 2,400 10
15014327016 14,0 M16 x 1,5 11,0 14,0 9,0 23,0 10,0 30,0 21 21 5,000 10
15014328020 17,0 M20 x 1,5 13,0 17,0 11,5 27,0 10,0 30,0 24 25 6,400 10
15014328025 21,0 M25 x 1,5 17,0 21,0 15,5 31,0 11,0 31,0 30 29 9,500 10
15014340032 27,0 M32 x 1,5 23,0 27,0 20,5 39,0 13,0 38,0 36 36 14,900 10
15014328040 36,0 M40 x 1,5 29,0 36,0 27,5 48,0 13,0 42,0 46 45 23,900 2
15014328050 45,0 M50 x 1,5 38,0 45,0 35,0 57,0 14,0 50,0 55 54 36,200 2
15014328063 56,0 M63 x 1,5 51,0 56,0 45,0 70,0 14,0 54,0 70 66 61,000 2
To download
Producer
Flexa
Product code
USDR-M
Series
USDR-M
Thread
M12
,
M16
,
M20
,
M25
,
M32
,
M40
,
M63
,
M50
Material
Nickel-plated Brass
Ingress Protection
IP40
,
IP54
,
IP67
Tubing outer diameter (mm)
10 mm
,
14 mm
,
17 mm
,
21 mm
,
27 mm
,
36 mm
,
45 mm
,
56 mm
Product width in millimeters
19
,
23
,
27
,
31
,
39
,
48
,
57
,
70
Product height in millimetres
28
,
30
,
31
,
38
,
42
,
50
,
54
Temperature range
-40...+125°C
,
-40...+250°C
Colour
Unpainted
