Flexa USB-M - metal connector for corrugated tubings

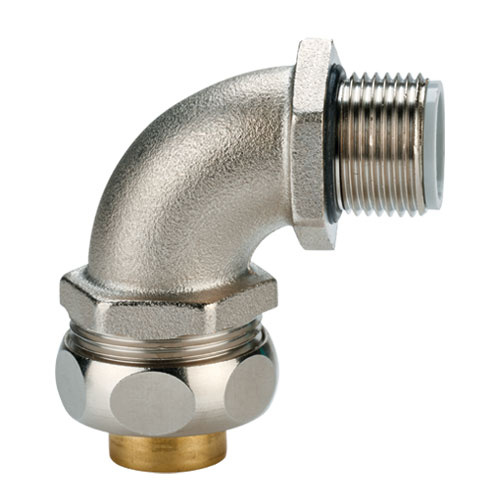

  • USB-M is a metal, secure angle connector (90°) made of nickel-plated brass with a metric external thread. The set includes a clamping sleeve [brass], seal, and O-ring [NBR].
Flexa USB-M - metal connector for corrugated tubings
Material: Nickel-plated Brass
Ingress Protection: IP40, IP67; OD45 IP 65, IP67
Colour: Unpainted
Ask about the product

Flexa USB-M

Flexa USB-M is a metal, secure angle connector (90°) with external metric thread, made of nickel-plated brass. The set includes a clamping sleeve [brass], seal, and O-ring [NBR]. It is designed for FLEXAgraff-PU-AS / FLEXAgraff-PU-F protective pipes. It provides high water and dust resistance with an IP67 protection rating (according to EN 60529); for OD45, the protection rating is IP65. It operates in a temperature range from -40°C to +100°C.



Connector features:

  • high water and dust resistance
  • clamp locking of the conduit and threaded connector
  • proper grounding
  • conduit end covers
  • resistance to vibration and stress

Applications:

  • machine and equipment construction
  • automotive/railway industry
  • shipbuilding industry
  • automation/electrical installations

USB-M - IP40, metric thread, compatible with SPR-AS / SPR-VA (Temperature range: -40°C ... +100°C)

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15025327016 17,0 M16 x 1,5 14,0 17,0 10,4 27,0 11,5 47,2 25 16,400 25
15025327020 21,0 M20 x 1,5 18,0 21,0 14,0 31,5 13,0 53,9 29 28,000 25
15025327025 27,0 M25 x 1,5 23,0 27,0 20,0 39,0 15,0 64,2 36 43,200 10
15025327032 36,0 M32 x 1,5 31,0 36,0 26,0 48,0 15,0 73,7 45 66,000 10
15025327040 45,0 M40 x 1,5 40,0 45,0 34,0 57,0 16,0 86,5 54 110,000 10
15025327050 56,0 M50 x 1,5 51,0 56,0 41,0 70,0 18,0 101,7 66 160,000 2

USB-M - IP40, metric thread, compatible with FLEXAgraff-AS / FLEXAgraff-VA (Temperature range: -40°C ... +100°C)

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15025327016 17,0 M16 x 1,5 14,0 17,0 10,4 27,0 11,5 47,2 25 16,400 25
15025327020 21,0 M20 x 1,5 18,0 21,0 14,0 31,5 13,0 53,9 29 28,000 25
15025339025 27,0 M25 x 1,5 24,0 27,0 20,0 39,0 15,0 64,2 36 43,200 10
15025327032 36,0 M32 x 1,5 31,0 36,0 26,0 48,0 15,0 73,7 45 66,000 10
15025327040 45,0 M40 x 1,5 40,0 45,0 34,0 57,0 16,0 86,5 54 110,000 10
15025327050 56,0 M50 x 1,5 51,0 56,0 41,0 70,0 18,0 101,7 66 160,000 2

USB-M - IP67; dla OD45 IP65, metric thread, compatible with FLEXAgraff-PU-AS / FLEXAgraff-PU-F (Temperature range: -40°C ... +100°C)

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15025328016 17,0 M16 x 1,5 13,0 17,0 10,4 27,0 11,5 47,2 25 16,000 25
15025328020 21,0 M20 x 1,5 17,0 21,0 14,0 31,5 13,0 53,9 29 28,000 25
15025340025 27,0 M25 x 1,5 23,0 27,0 20,0 39,0 15,0 64,2 36 43,200 10
15025328032 36,0 M32 x 1,5 29,0 36,0 26,0 48,0 15,0 73,7 45 66,000 10
15025328040 45,0 M40 x 1,5 38,0 45,0 34,0 57,0 16,0 86,5 54 110,000 10
15025328050 56,0 M50 x 1,5 49,0 56,0 41,0 70,0 18,0 101,7 66 160,000 2

USB-M - IP67, metric thread, compatible with SPR-PA / SPR-PU-AS / SPR-PU-F / SPR-PVC-AS (Temperature range: -40°C ... +100°C)

FLEXA No. OD
[mm]		 Thread
type		 Conduit
ID		 Conduit
OD		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS
[mm]		 Weight
[kg/100]		 PU
[pcs.]
15025328016 17,0 M16 x 1,5 13,0 17,0 10,4 27,0 11,5 47,2 25 16,000 25
15025328020 21,0 M20 x 1,5 17,0 21,0 14,0 31,5 13,0 53,9 29 28,000 25
15025328025 27,0 M25 x 1,5 22,0 27,0 20,0 39,0 15,0 64,2 36 43,200 10
15025328032 36,0 M32 x 1,5 29,0 36,0 26,0 48,0 15,0 73,7 45 66,000 10
15025328040 45,0 M40 x 1,5 38,0 45,0 34,0 57,0 16,0 86,5 54 110,000 10
15025328050 56,0 M50 x 1,5 49,0 56,0 41,0 70,0 18,0 101,7 66 160,000 2
To download
Producer
Flexa
Product code
USB-M
Series
USB
Thread
M16
,
M20
,
M25
,
M32
,
M40
,
M50
Material
Nickel-plated Brass
Ingress Protection
IP40
,
IP67; OD45 IP 65
,
IP67
Tubing outer diameter (mm)
17 mm
,
21 mm
,
27 mm
,
36 mm
,
45 mm
,
56 mm
Product width in millimeters
27
,
31,5
,
39
,
48
,
57
,
70
Product height in millimetres
47,2
,
53,9
,
64,2
,
73,7
,
86,5
,
101,7
Temperature range
-40...+100°C
Colour
Unpainted
