Flexa US-FOOD - metric thread connector
- US-FOOD is a straight connector with metric thread, made from stainless steel.
Flexa US-FOOD

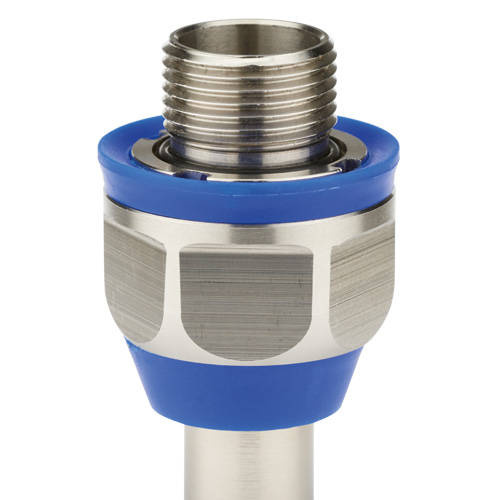

US-FOOD is a straight connector with a metric thread, made from stainless steel. It has a protection degree of IP 68/IP 69K and an operating temperature range of -40°C...+125°C. The product is equipped with a nickle-plated brass ferrule and a PA 6 sealing. It has an O-ring (OR) made from NBR. The connector is designed for AIRflex-GRS-FOOD and LIQUID-TIGHT-FOOD tubings.
Connector features:
- food-safe
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration- and tension proof
- IP 68 approved acc. to EN 60529 | IP 69K approved acc. to DIN 40050-9 [internal audit] up to 40 bar, 80° C
| FLEXA No. | OD [mm] |
Thread type | Conduit ID [mm] |
Conduit OD [mm] |
Ø I [mm] |
Ø B [mm] |
C [mm] |
D [mm] |
WS1 [mm] |
WS2 [mm] |
Weight [kg/100] |
PU [pcs] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10680800020 | 1/2 inch | M20 x 1.5 | 16,0 | 21,0 | 14,0 | 34,0 | 7,5 | 48,5 | 30 | 14 | 7,040 | 10 |
| 10680800125 | 1/2 inch | M25 x 1.5 | 16,0 | 21,0 | 14,0 | 41,0 | 7,5 | 49,5 | 36 | 14 | 11,510 | 10 |
| 10680800025 | 3/4 inch | M25 x 1.5 | 21,0 | 27,0 | 18,0 | 41,0 | 7,5 | 58,0 | 36 | 19 | 10,010 | 5 |
| 10680800032 | 1 inch | M32 x 1.5 | 24,5 | 33,0 | 24,4 | 53,0 | 7,5 | 68,0 | 46 | 25 | 19,325 | 5 |
| 10680800040 | 1 1/4 inch | M40 x 1.5 | 35,0 | 42,0 | 32,0 | 61,0 | 7,5 | 80,0 | 54 | 32 | 29,295 | 2 |
To download
Producer
Product code
US-FOOD
Series
Thread
M20
, M25
, M32
, M40
Material
Stainless steel
Ingress Protection
IP66
, IP69K
Tubing outer diameter (mm)
21 mm
, 27 mm
, 33 mm
, 42 mm
Product width in millimeters
34
, 41
, 53
, 61
Product height in millimetres
48.5
, 49.5
, 58
, 68
, 80
Temperature range
-40...+125°C
Colour
Unpainted
