Flexa TED - PTFE gasket for FLEXAgraff-SI-ASF connectors
- TED is a PTFE gasket designed for FLEXAgraff-SI-ASF connectors, providing high temperature and chemical resistance in the range from -60°C to +300°C.
Flexa TED

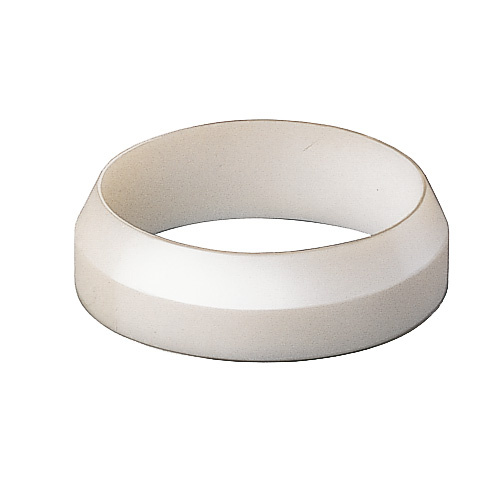

TED is a conical gasket made of high-quality PTFE (polytetrafluoroethylene). It is specially designed for use with FLEXAgraff-SI-ASF couplings, ensuring effective sealing in demanding conditions. It is characterized by exceptional resistance to a wide range of temperatures, from -60°C to +300°C, and high chemical resistance, typical for PTFE. The product meets CE, RoHS, and REACH requirements.
Seal features:
- Made of PTFE (polytetrafluoroethylene)
- Exceptional resistance to a wide range of temperatures (from -60°C to +300°C)
- High chemical resistance
- Effective and reliable sealing
- Specially designed for FLEXAgraff-SI-ASF couplings
- Compliance with CE, RoHS, and REACH standards
- Available in various sizes (from ØD 13.0 to 61.0 mm)
Applications:
- Installations requiring high thermal resistance
- Chemically aggressive environments
- Systems with FLEXAgraff-SI-ASF couplings
- Industries requiring reliable seals (e.g., chemical, petrochemical, energy)
| FLEXA No. | OD [mm] |
Ø D [mm] |
Ø d [mm] |
L [mm] |
Weight [kg/100] |
PU [pcs.] |
|---|---|---|---|---|---|---|
| 15030013010 | 13.0 | 10.3 | 6.0 | 0.054 | 50 | |
| 15030013014 | 17.0 | 14.3 | 6.0 | 0.070 | 50 | |
| 15030013017 | 21.0 | 17.3 | 6.0 | 0.120 | 50 | |
| 15030013021 | 25.0 | 21.3 | 7.0 | 0.160 | 50 | |
| 15030013027 | 32.0 | 27.4 | 9.5 | 0.400 | 25 | |
| 15030013036 | 41.0 | 36.4 | 9.5 | 0.480 | 25 | |
| 15030013045 | 50.0 | 45.4 | 9.5 | 0.600 | 20 | |
| 15030013056 | 61.0 | 56.5 | 9.5 | 0.800 | 10 |
To download
Producer
Product code
TED
Series
Material
Teflon - PTFE
Tubing outer diameter (mm)
13 mm
, 17 mm
, 21 mm
, 23 mm
, 25 mm
, 32 mm
, 41 mm
, 50 mm
, 61 mm
Tubing inner diameter (mm)
10,3 mm
, 14,3 mm
, 17,3 mm
, 21,3 mm
, 27.4 mm
, 36,4 mm
, 45,4 mm
, 56,5 mm
Product height in millimetres
7
, 9,5
, 6
Temperature range
-60°C...+300°C
Colour
Unpainted
