Flexa SPR-CU-AS - protective conduit

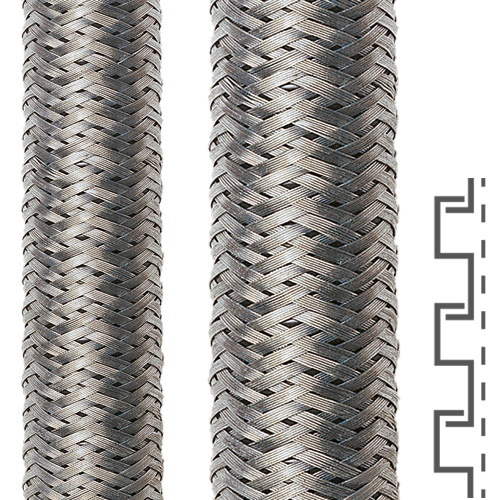

- Flexa SPR-CU-AS position is a metal, galvanized steel, strip wound protective conduit, sheathed in tinned copper wire braiding. “S” profile, unpainted.
Flexa SPR-CU-AS
Flexa SPR-CU-AS position is a metal, galvanized steel, strip wound protective conduit, sheathed in tinned copper wire braiding. “S” profile, unpainted.
Tubing features:
- high tensile, torsional, and bending strength
- highly flexible
- no fraying of the conduit
Applications:
- Optoelectronics
- Shipbuilding
- Automation
- Electrical installations
- Sensor Technology
- Hazardous areas to EN 60079-14 and EN 61241-14
- Machinery and equipment
- Automotive
- Railway
| FLEXA No. | Colour | OD [mm] |
ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|
| 14016701007 | Copper | 10.0 | 7.0 | 10.0 | 16 | 40 | 0.120 | 50 |
| 14016701010 | Copper | 14.0 | 10.0 | 14.0 | 22 | 55 | 0.180 | 50 |
| 14016701013 | Copper | 17.0 | 13.0 | 17.0 | 30 | 75 | 0.230 | 50 |
| 14016701017 | Copper | 21.0 | 17.0 | 21.0 | 38 | 95 | 0.350 | 50 |
| 14016701022 | Copper | 27.0 | 22.0 | 27.0 | 45 | 115 | 0.510 | 50 |
| 14016701029 | Copper | 36.0 | 29.0 | 36.0 | 65 | 160 | 0.750 | 25 |
| 14016701038 | Copper | 45.0 | 38.0 | 45.0 | 80 | 200 | 1.000 | 25 |
| 14016701049 | Copper | 56.0 | 49.0 | 56.0 | 100 | 250 | 1.350 | 25 |
To download
Producer
Product code
SPR-CU-AS
Series
Material
Galvanized steel
, Tinned copper
Temperature range
-50...+250°C
Tubing inner diameter (mm)
7,0 x 10,0 mm
, 10.0 x 14.0 mm
, 13,0 x 17,0 mm
, 17,0 x 21 mm
, 22,0 x 27,0 mm
, 29,0 x 36,0 mm
, 38,0 x 45,0 mm
, 49,0 x 56,0 mm
Tubing outer diameter (mm)
10 mm
, 14 mm
, 17 mm
, 21 mm
, 27 mm
, 36 mm
, 45 mm
, 56 mm
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Colour
Unpainted
Application features
EMC
Certificate
DIN EN IEC 61386-23
, EN 60079-14
, EN 50289-1-6
, EN 61241-14
