Flexa RQY - connector for corrugated tubings
- RQY is a Flexa Y-type distributor designed for conduits. The product is made of polyamide (PA) or TPE and equipped with a quick connector (FLEXAquick distributor technology).
Flexa RQY

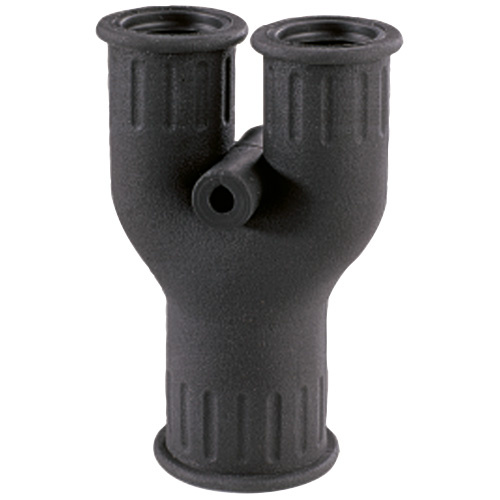

Flexa RQY is a plastic Y-type distributor from the FLEXAquick® system, designed for connecting three ROHRflex® protective pipes. It provides a high degree of protection (IP66, IP68, and IP69K, depending on the variant). The connector body is made of polyamide (PA) or TPE (depending on the variant), which is resistant to oils, gasoline, and a wide range of acids and solvents. The product is a single-piece design and allows for quick pipe installation by simply sliding it on. The operating temperature range of the connector is from -40/50°C to +120°C.
Connector features
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- machine and plant constructions
- automotive
- railway industry
- shipbuilding
- automation
- electrical installations
RQY-PA - Y-type distributor, quick-type connector, IP68/IP69K, railway certifications EN 45545-2 and NFPA130, temperature range -50°C ... +120°C, PA material
| FLEXA No. | Colour | OD [mm] |
Ø B1 [mm] |
Ø B2 [mm] |
D [mm] |
C [mm] |
Ø F [mm] |
E [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|---|
| 15020032201 | Black | OD1 - 13,0 / OD2 - 2 x 10,0 | 20,0 | 17,0 | 69,0 | 36,0 | 5,5 | 23,5 | 1,600 | 10 |
| 15020032202 | Black | OD1 - 13,0 / OD2 - 2 x 13,0 | 20,0 | 20,0 | 70,5 | 42,0 | 5,5 | 23,5 | 1,800 | 10 |
| 15020032203 | Black | OD1 - 15,8 / OD2 - 2 x 13,0 | 23,0 | 20,0 | 71,0 | 42,0 | 5,5 | 29,0 | 2,000 | 10 |
| 15020032204 | Black | OD1 - 15,8 / OD2 - 2 x 15,8 | 23,0 | 23,0 | 80,0 | 48,0 | 5,5 | 29,0 | 2,200 | 10 |
| 15020032206 | Black | OD1 - 21,2 / OD2 - 2 x 15,8 | 29,5 | 23,0 | 87,5 | 49,0 | 6,5 | 27,0 | 3,300 | 10 |
| 15020032208 | Black | OD1 - 28,5 / OD2 - 2 x 21,2 | 37,0 | 29,5 | 100,0 | 62,5 | 6,5 | 37,0 | 5,500 | 10 |
| 15020032209 | Black | OD1 - 34,5 / OD2 - 2 x 28,5 | 44,0 | 37,0 | 106,0 | 77,5 | 6,5 | 43,0 | 7,700 | 10 |
| 15020032210 | Black | OD1 - 42,5 / OD2 - 2 x 34,5 | 52,0 | 44,0 | 125,0 | 98,0 | 6,5 | 45,0 | 11,700 | 10 |
| 15020032211 | Black | OD1 - 54,5 / OD2 - 2 x 42,5 | 64,0 | 52,0 | 129,5 | 110,0 | 6,5 | 62,0 | 15,500 | 5 |
| 15020032001 | Grey | OD1 - 13,0 / OD2 - 2 x 10,0 | 20,0 | 17,0 | 69,0 | 36,0 | 5,5 | 23,5 | 1,600 | 10 |
| 15020032002 | Grey | OD1 - 13,0 / OD2 - 2 x 13,0 | 20,0 | 20,0 | 70,5 | 42,0 | 5,5 | 23,5 | 1,800 | 10 |
| 15020032003 | Grey | OD1 - 15,8 / OD2 - 2 x 13,0 | 23,0 | 20,0 | 71,0 | 42,0 | 5,5 | 29,0 | 2,000 | 10 |
| 15020032004 | Grey | OD1 - 15,8 / OD2 - 2 x 15,8 | 23,0 | 23,0 | 80,0 | 48,0 | 5,5 | 29,0 | 2,200 | 10 |
| 15020032006 | Grey | OD1 - 21,2 / OD2 - 2 x 15,8 | 29,5 | 23,0 | 87,5 | 50,8 | 6,5 | 27,0 | 3,300 | 10 |
| 15020032008 | Grey | OD1 - 28,5 / OD2 - 2 x 21,2 | 37,0 | 29,5 | 100,0 | 62,5 | 6,5 | 37,0 | 5,500 | 10 |
| 15020032009 | Grey | OD1 - 34,5 / OD2 - 2 x 28,5 | 44,0 | 37,0 | 106,0 | 77,5 | 6,5 | 43,0 | 7,700 | 10 |
| 15020032010 | Grey | OD1 - 42,5 / OD2 - 2 x 34,5 | 52,0 | 44,0 | 125,0 | 98,0 | 6,5 | 45,0 | 11,700 | 10 |
| 15020032011 | Grey | OD1 - 54,5 / OD2 - 2 x 42,5 | 64,0 | 52,0 | 129,5 | 110,0 | 6,5 | 62,0 | 15,500 | 5 |
RQY - Y-type distributor, IP66, temperature range -40°C ... +120°C, TPE material
| FLEXA No. | Colour | OD [mm] |
Ø B1 [mm] |
Ø B2 [mm] |
D [mm] |
C [mm] |
Ø F [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|
| 15020033205 | Black | OD1 - 10,0 / OD2 - 2 x 10,0 | 17,5 | 17,5 | 54,5 | 36,5 | 4,0 | 0,630 | 10 |
| 15020033206 | Black | OD1 - 21,2 / OD2 - 2 x 15,8 | 29,5 | 25,0 | 75,0 | 52,0 | 4,0 | 2,600 | 10 |
| 15020033213 | Black | OD1 - 28,5 / OD2 - 2 x 15,8 | 36,5 | 25,0 | 75,0 | 52,0 | 4,0 | 2,800 | 10 |
| 15020033212 | Black | OD1 - 18,5 / OD2 - 2 x 18,5 | 26,5 | 26,5 | 81,0 | 54,5 | 4,0 | 2,200 | 10 |
| 15020033207 | Black | OD1 - 21,2 / OD2 - 2 x 21,2 | 29,5 | 29,5 | 82,5 | 62,5 | 4,0 | 2,900 | 10 |
| 15020033208 | Black | OD1 - 28,5 / OD2 - 2 x 21,2 | 36,5 | 29,5 | 81,5 | 61,5 | 4,0 | 3,500 | 10 |
| 15020033209 | Black | OD1 - 34,5 / OD2 - 2 x 28,5 | 42,5 | 36,5 | 86,0 | 79,0 | 4,0 | 5,200 | 10 |
| 15020033210 | Black | OD1 - 42,5 / OD2 - 2 x 34,5 | 52,5 | 42,5 | 98,5 | 89,0 | 4,0 | 6,500 | 10 |
| 15020033211 | Black | OD1 - 54,5 / OD2 - 2 x 42,5 | 65,0 | 52,5 | 116,0 | 109,5 | 4,0 | 11,600 | 5 |
| 15020033005 | Grey | OD1 - 10,0 / OD2 - 2 x 10,0 | 17,5 | 17,5 | 54,5 | 36,5 | 4,0 | 0,630 | 10 |
| 15020033006 | Grey | OD1 - 21,2 / OD2 - 2 x 15,8 | 29,5 | 25,0 | 75,0 | 52,0 | 4,0 | 2,600 | 10 |
| 15020033007 | Grey | OD1 - 21,2 / OD2 - 2 x 21,2 | 29,5 | 29,5 | 82,5 | 62,5 | 4,0 | 2,900 | 10 |
| 15020033008 | Grey | OD1 - 28,5 / OD2 - 2 x 21,2 | 36,5 | 29,5 | 81,5 | 61,5 | 4,0 | 3,500 | 10 |
| 15020033009 | Grey | OD1 - 34,5 / OD2 - 2 x 28,5 | 42,5 | 36,5 | 86,0 | 79,0 | 4,0 | 5,200 | 10 |
To download
Producer
Product code
RQY
Series
Thread
/
Material
Polyamide
, Thermoplastic elastomer - TPE
Ingress Protection
IP69K
, IP68
, IP66
Tubing outer diameter (mm)
13
, 10
, 15,8
, 18.5
, 21,2
, 28.5
, 34,5
, 42,5
, 54,5
Product width in millimeters
17
, 17.5
, 20
, 23
, 25
, 26.5
, 29.5
, 36,5
, 37
, 42.5
, 44
, 52
, 52.5
, 64
, 65
Product height in millimetres
54.5
, 69
, 70.5
, 71
, 75
, 80
, 81
, Wysokość towaru w centymetrach
81,5
, 82,5
, 86
, 87.5
, 98,5
, 100
, 106
, 116
, 125
, 129,5
Temperature range
-40...+120°C
, -50...+120°C
Colour
Black
, Grey
