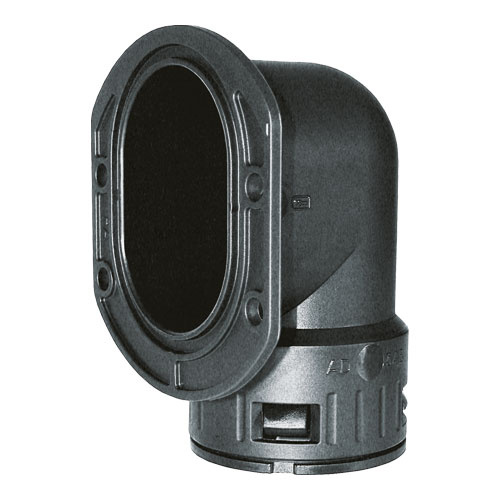

Flexa RQW-F - connector for corrugated tubings

  • RQW-F is a Flexa brand flange designed for tubings connectors. The product is made of polyamide (PA) and equipped with a quick connector (FLEXAquick flange technology).
Flexa RQW-F - connector for corrugated tubings
Material: Polyamide
Ingress Protection: IP68
Colour: Black
Ask about the product

Flexa RQW-F

Flexa RQW-F is a plastic collar from the FLEXAquick® system, designed for all metric connectors with external threads in accordance with EN 60423. It provides a high degree of protection (IP68). It is made of polyamide (PA), which is resistant to oils, gasoline, and a wide range of acids and solvents. The operating temperature range of the connector is from -40°C to +120°C.



Connector features

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • machine and plant constructions
  • automation
  • electrical installations

RQW-F - plastic flange, IP68, railway certifications EN 45545-2 and NFPA130, for connectors with metric thread

FLEXA No. Colour OD
[mm]		 Ø A
[mm]		 B
[mm]		 C
[mm]		 D
[mm]		 H
[mm]		 Ø
[mm]		 Ø G
[mm]		 F
[mm]		 E
[mm]		 Weight
[kg|100]		 PU
[pcs.]
15020077216Black21,220,046,042,036,05,529,536,070,02,10010
15020077221Black28,527,065,561,053,06,637,045,085,54,20010
15020077229Black34,533,067,077,054,036,06,644,050,0110,06,50010
15020077236Black42,538,085,084,573,030,06,652,064,5104,07,80010
15020077248Black54,550,086,0100,073,030,06,664,076,0121,08,90010
15020077016Grey21,220,046,042,036,05,529,536,070,02,10010
15020077021Grey28,527,065,561,053,06,637,045,085,54,20010
15020077029Grey34,533,067,077,054,036,06,644,050,0110,06,50010
15020077036Grey42,538,085,084,573,030,06,652,064,5104,07,80010
15020077048Grey54,550,086,0100,073,030,06,664,076,0121,08,90010
To download
Producer
Flexa
Product code
RQW-F
Series
RQW-F
Thread
/
Material
Polyamide
Ingress Protection
IP68
Tubing outer diameter (mm)
21,2
,
28.5
,
34,5
,
42,5
,
54,5
Product width in millimeters
36
,
45
,
50
,
64,5
,
76
Product height in millimetres
70
,
85.5
,
110
,
104
,
121
Temperature range
-40...+120°C
Colour
Black
