Flexa RQW - connector for corrugated tubings

RQW is a angled connector designed for ROHRflex corrugated plastic tubings. The product is made of polyamide (PA) and nickel-platted brass, equipped with a quick coupler (FLEXAquick elbow technology).

Flexa RQW - connector for corrugated tubings

Material: Polyamide

Ingress Protection: IP69K, IP68, IP66

Colour: Black, Grey

Our price:

Quantity:

Flexa RQW

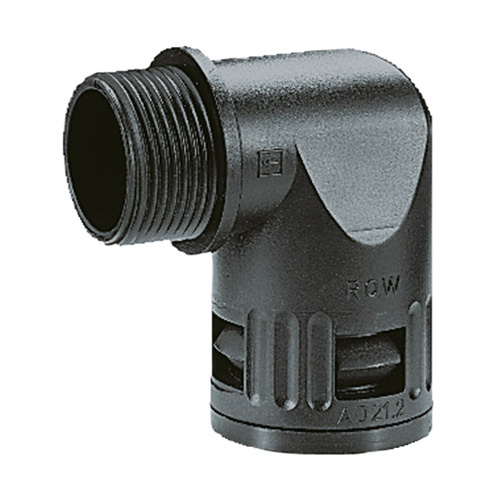

Flexa RQW is a 90° plastic elbow connector from the FLEXAquick® elbow system, designed for ROHRflex® protective pipes. It provides a high degree of protection, IP66, IP68 and IP69K. The connector body is made of polyamide (PA), which is resistant to oils and gasoline, as well as a wide range of acids and solvents. The product has a one-piece design with an external plastic thread and an integrated snap-in sleeve with a seal. The operating temperature range of the connector is from -40°C to +120°C.

Connector features

resistant against oil and benzine
widely resistant to acids and solvents
free of silicone, cadmium, halogen

Applications

machine and plant constructions
automotive
railway industry
shipbuilding
automation
electrical installations

RQW-M - IP68/IP69K, railway certifiactions EN 45545-2 and NFPA130, metric thread, 90° connector

FLEXA No.	Colour	OD [mm]	Thread type	Ø I [mm]	Ø B [mm]	C [mm]	E [mm]	F [mm]	Ø D [mm]	Weight [kg\|100]	PU [pcs.]
15020064210	Black	10,0	M10 x 1,0	6,0	17,0	12,0	33,5	34,5	16,0	0,600	50
15020064212	Black	13,0	M12 x 1,5	8,0	20,0	10,0	36,0	34,0	20,0	0,760	50
15020036216	Black	13,0	M16 x 1,5	12,0	20,0	12,0	36,0	36,5	20,0	0,720	50
15020064216	Black	15,8	M16 x 1,5	12,0	23,0	12,0	42,0	40,5	24,5	1,080	50
15020036220	Black	15,8	M20 x 1,5	15,5	23,0	13,0	42,0	41,5	24,5	1,060	50
15020064220	Black	21,2	M20 x 1,5	14,8	29,5	13,0	50,0	49,0	27,0	2,000	50
15020036225	Black	21,2	M25 x 1,5	18,0	29,5	13,0	50,0	49,0	29,5	1,940	50
15020064225	Black	28,5	M25 x 1,5	19,0	37,0	13,0	57,0	57,0	34,0	3,120	25
15020036232	Black	28,5	M32 x 1,5	24,0	37,0	15,0	57,0	59,0	37,0	3,040	25
15020064232	Black	34,5	M32 x 1,5	24,0	44,0	15,0	67,5	65,0	43,0	4,800	10
15020036240	Black	34,5	M40 x 1,5	32,0	44,0	15,0	67,5	67,0	45,0	4,400	10
15020064240	Black	42,5	M40 x 1,5	32,0	52,0	15,0	83,0	72,0	51,5	7,000	10
15020036250	Black	42,5	M50 x 1,5	39,0	52,0	15,5	83,0	74,5	55,0	7,300	10
15020064250	Black	54,5	M50 x 1,5	39,0	64,0	15,0	94,0	84,0	64,0	11,400	5
15020036263	Black	54,5	M63 x 1,5	53,0	64,0	16,0	94,0	85,5	68,0	10,800	5
15020064010	Grey	10,0	M10 x 1,0	6,0	17,0	12,0	33,5	34,5	16,0	0,600	50
15020064012	Grey	13,0	M12 x 1,5	8,0	20,0	10,0	36,0	40,0	20,0	0,760	50
15020036016	Grey	13,0	M16 x 1,5	12,0	20,0	12,0	36,0	36,5	20,0	0,720	50
15020064016	Grey	15,8	M16 x 1,5	12,0	23,0	12,0	42,0	40,5	24,5	1,080	50
15020036020	Grey	15,8	M20 x 1,5	15,5	23,0	13,0	42,0	41,5	24,5	1,060	50
15020064020	Grey	21,2	M20 x 1,5	14,8	29,5	13,0	50,0	49,0	27,0	2,000	50
15020036025	Grey	21,2	M25 x 1,5	18,0	29,5	13,0	50,0	49,0	29,5	1,940	50
15020064025	Grey	28,5	M25 x 1,5	19,0	37,0	13,0	57,0	57,0	34,0	3,120	25
15020036032	Grey	28,5	M32 x 1,5	24,0	37,0	15,0	57,0	59,0	37,0	3,040	25
15020064032	Grey	34,5	M32 x 1,5	24,0	44,0	15,0	67,5	65,0	43,0	4,800	10
15020036040	Grey	34,5	M40 x 1,5	32,0	44,0	15,0	67,5	67,0	45,0	4,400	10
15020064040	Grey	42,5	M40 x 1,5	32,0	52,0	15,0	83,0	72,0	51,5	7,000	10
15020036050	Grey	42,5	M50 x 1,5	39,0	52,0	15,5	83,0	74,5	55,0	7,300	10
15020064050	Grey	54,5	M50 x 1,5	39,0	64,0	15,0	94,0	84,0	64,0	11,400	5
15020036063	Grey	54,5	M63 x 1,5	53,0	64,0	16,0	94,0	85,5	68,0	10,800	5

RQW-P - IP68/IP69K, railway certifiactions EN 45545-2 and NFPA130, PG thread, 90° connector

FLEXA No.	Colour	OD [mm]	Thread type	Ø I [mm]	Ø B [mm]	C [mm]	E [mm]	F [mm]	Ø D [mm]	Weight [kg\|100]	PU [pcs.]
15020028207	Black	10,0	PG7	7,0	17,0	9,5	34,0	33,0	16,0	0,560	50
15020028209	Black	13,0	PG9	12,0	20,0	10,0	37,0	34,0	20,0	0,680	50
15020029211	Black	13,0	PG11	14,0	20,0	10,0	39,0	34,0	23,0	0,780	50
15020029213	Black	13,0	PG13,5	15,5	20,0	10,0	41,0	35,0	25,0	0,860	50
15020028211	Black	15,8	PG11	14,5	24,5	10,0	42,0	37,5	24,5	1,000	50
15020028213	Black	18,5	PG13,5	13,5	26,5	13,0	46,0	47,0	27,0	1,400	50
15020028216	Black	21,2	PG16	18,0	29,5	13,0	48,0	48,0	27,0	1,800	50
15020028221	Black	28,5	PG21	24,0	37,0	13,0	57,0	58,0	34,0	2,840	25
15020028229	Black	34,5	PG29	32,0	44,0	15,0	67,5	65,0	43,0	4,200	10
15020028236	Black	42,5	PG36	39,5	52,0	15,0	83,0	72,0	51,5	7,200	10
15020028248	Black	54,5	PG48	48,5	64,0	16,0	96,0	84,0	65,0	10,200	5
15020028007	Grey	10,0	PG7	7,0	17,0	9,5	34,0	33,0	16,0	0,560	50
15020028009	Grey	13,0	PG9	12,0	20,0	10,0	37,0	34,0	20,0	0,680	50
15020028011	Grey	15,8	PG11	14,5	24,5	10,0	42,0	37,5	24,5	1,000	50
15020028013	Grey	18,5	PG13,5	13,5	26,5	13,0	46,0	47,0	27,0	1,400	50
15020028016	Grey	21,2	PG16	18,0	29,5	13,0	48,0	48,0	27,0	1,800	50
15020028021	Grey	28,5	PG21	24,0	37,0	13,0	57,0	58,0	34,0	2,840	25
15020028029	Grey	34,5	PG29	32,0	44,0	15,0	67,5	65,0	43,0	4,200	10
15020028036	Grey	42,5	PG36	39,5	52,0	15,0	83,0	72,0	51,5	7,200	10
15020028048	Grey	54,5	PG48	48,5	64,0	16,0	96,0	84,0	65,0	10,200	5

RQW-C - IP68/IP69K, railway certifiactions EN 45545-2 and NFPA130, CTG thread, 90° connector

FLEXA No.	Colour	OD [mm]	Thread type	Ø I [mm]	Ø B [mm]	C [mm]	E [mm]	F [mm]	Ø D [mm]	Weight [kg\|100]	PU [pcs.]
15020053201	Black	13,0	CTG G 16 / 1/2"	15,0	20,0	14,0	40,0	40,0	27,0	0,980	50
15020053202	Black	15,8	CTG G 16 / 1/2"	15,0	23,0	14,0	42,0	43,0	27,0	1,120	50
15020053203	Black	21,2	CTG G 16 / 1/2"	15,0	29,5	14,0	51,0	48,0	27,0	2,000	50
15020053204	Black	28,5	CTG G 22 / 3/4"	20,5	37,0	13,0	57,0	57,0	34,0	3,000	25
15020053205	Black	34,5	CTG G 28 / 1"	25,0	44,0	16,0	67,5	66,5	43,0	4,900	10
15020053206	Black	42,5	CTG G 36 / 1/4"	35,0	52,0	18,0	83,0	76,0	52,0	7,500	10
15020053207	Black	54,5	CTG G 54 / 2"	52,0	64,0	18,0	96,0	89,5	66,0	11,100	5

RQW-N - IP68/IP69K, railway certifiactions EN 45545-2 and NFPA130, NPT thread, 90° connector

FLEXA No.	Colour	OD [mm]	thread size NPT	Ø I [mm]	Ø B [mm]	C [mm]	E [mm]	F [mm]	Ø D [mm]	Weight [kg\|100]	PU [pcs.]
15020057201	Black	10,0	1/4 inch	8,5	17,0	10,0	34,0	33,0	16,0	0,400	50
15020057202	Black	13,0	1/4 inch	10,0	20,0	10,5	36,0	35,0	20,0	0,600	50
15020057204	Black	15,8	3/8"	12,5	26,0	12,0	44,0	44,0	24,5	0,800	50
15020057205	Black	15,8	1/2 inch	14,0	23,5	12,0	42,0	40,5	26,0	1,100	50
15020057206	Black	21,2	1/2 inch	16,0	29,5	13,0	51,0	48,5	27,0	1,880	50
15020039221	Black	28,5	3/4 inch	21,0	37,0	14,0	57,5	57,0	34,0	3,040	25
15020039228	Black	34,5	1 inch	28,0	44,0	16,0	67,5	67,5	43,0	4,800	10
15020057207	Black	42,5	1 1/4 inch	35,0	52,0	18,0	83,0	76,0	52,0	6,900	10
15020057208	Black	42,5	1 1/2 inch	36,5	54,0	16,5	83,0	76,0	56,0	7,350	10
15020057209	Black	54,5	1 1/2 inch	41,0	64,0	18,0	95,0	87,0	64,5	11,800	5
15020057210	Black	54,5	2 inch	52,0	66,0	21,0	100,0	90,0	65,0	10,900	5

RQW1-M - IP66, conically sealed, metric thread, 90° connector

FLEXA No.	Colour	OD [mm]	Thread type	Ø I [mm]	Ø B [mm]	C [mm]	E [mm]	F [mm]	Ø D [mm]	Weight [kg\|100]	PU [pcs.]
15020051210	Black	10,0	M10 x 1,0	6,0	17,0	12,0	33,5	34,5	16,0	0,570	50
15020051212	Black	13,0	M12 x 1,5	8,0	20,0	10,0	36,0	34,0	20,0	0,780	50
15020051216	Black	13,0	M16 x 1,5	12,0	20,0	12,0	36,0	36,5	20,0	0,720	50
15020051218	Black	15,8	M16 x 1,5	12,0	23,0	12,0	42,0	40,5	24,5	1,120	50
15020051220	Black	15,8	M20 x 1,5	15,5	23,0	13,0	42,0	41,5	24,5	1,100	50
15020051219	Black	18,5	M20 x 1,5	13,5	26,5	13,0	46,0	47,0	27,0	1,600	50
15020051222	Black	21,2	M20 x 1,5	14,8	29,5	13,0	50,0	49,0	27,0	2,020	50
15020051225	Black	21,2	M25 x 1,5	18,0	29,5	13,0	50,0	49,0	29,5	1,980	50
15020051228	Black	28,5	M25 x 1,5	18,0	37,0	13,0	57,0	57,0	34,0	3,080	25
15020051232	Black	28,5	M32 x 1,5	24,0	37,0	15,0	57,0	59,0	37,0	3,040	25
15020051234	Black	34,5	M32 x 1,5	24,0	44,0	15,0	67,5	65,0	43,0	4,900	10
15020051240	Black	34,5	M40 x 1,5	32,0	44,0	15,0	67,5	67,0	45,0	4,400	10
15020051242	Black	42,5	M40 x 1,5	33,0	52,0	15,0	81,0	72,0	51,5	7,300	10
15020051250	Black	42,5	M50 x 1,5	39,0	52,0	15,5	83,0	74,5	55,0	7,300	10
15020051254	Black	54,5	M50 x 1,5	39,0	64,0	15,0	94,0	84,0	64,0	12,100	5
15020051263	Black	54,5	M63 x 1,5	53,0	64,0	16,0	94,0	85,5	68,0	10,600	5
15020051010	Grey	10,0	M10 x 1,0	6,0	17,0	12,0	33,5	34,5	16,0	0,4570	50
15020051012	Grey	13,0	M12 x 1,5	8,0	20,0	10,0	36,0	34,0	20,0	0,780	50
15020051016	Grey	13,0	M16 x 1,5	12,0	20,0	12,0	36,0	36,5	20,0	0,720	50
15020051018	Grey	15,8	M16 x 1,5	12,0	23,0	12,0	42,0	40,5	24,5	1,120	50
15020051020	Grey	15,8	M20 x 1,5	15,5	23,0	13,0	42,0	41,5	24,5	1,100	50
15020051019	Grey	18,5	M20 x 1,5	13,5	26,5	13,0	46,0	47,0	27,0	1,600	50
15020051022	Grey	21,2	M20 x 1,5	14,8	29,5	13,0	50,0	49,0	27,0	2,020	50
15020051025	Grey	21,2	M25 x 1,5	18,0	29,5	13,0	50,0	49,0	29,5	1,980	50
15020051028	Grey	28,5	M25 x 1,5	18,0	37,0	13,0	57,0	57,0	34,0	3,080	25
15020051032	Grey	28,5	M32 x 1,5	24,0	37,0	15,0	57,0	59,0	37,0	3,040	25
15020051034	Grey	34,5	M32 x 1,5	24,0	44,0	15,0	67,5	65,0	43,0	4,900	10
15020051040	Grey	34,5	M40 x 1,5	32,0	44,0	15,0	67,5	67,0	45,0	4,400	10
15020051042	Grey	42,5	M40 x 1,5	33,0	52,0	15,0	81,0	72,0	51,5	7,300	10
15020051050	Grey	42,5	M50 x 1,5	39,0	52,0	15,5	83,0	74,5	55,0	7,300	10
15020051054	Grey	54,5	M50 x 1,5	39,0	64,0	15,0	94,0	84,0	64,0	11,200	5
15020051063	Grey	54,5	M63 x 1,5	53,0	64,0	16,0	94,0	85,5	68,0	10,600	5
15020751212	Black	13,0	M12 x 1,5	8,0	20,0	10,0	36,0	34,0	20,0	0,780	10
15020751216	Black	20,0	M16 x 1,5	12,0	20,0	12,0	36,0	36,5	20,0	0,720	10
15020751220	Black	15,8	M20 x 1,5	15,5	23,0	13,0	42,0	41,5	24,5	1,100	10
15020751225	Black	21,2	M25 x 1,5	18,0	29,5	13,0	50,0	49,0	29,5	1,980	10
15020751232	Black	28,5	M32 x 1,5	24,0	37,0	15,0	57,0	59,0	37,0	3,040	10
15020751240	Black	34,5	M40 x 1,5	32,0	44,0	15,0	67,5	67,0	45,0	4,400	2
15020751250	Black	42,5	M50 x 1,5	39,0	52,0	15,5	83,0	74,5	55,0	7,300	2
15020751263	Black	54,5	M63 x 1,5	53,0	64,0	16,0	94,0	85,5	68,0	10,600	2

RQW1-P - IP66, conically sealed, PG thread, 90° connector

FLEXA No.	Colour	OD [mm]	Thread type	Ø I [mm]	Ø B [mm]	C [mm]	E [mm]	F [mm]	Ø D [mm]	Weight [kg\|100]	PU [pcs.]
15020050207	Black	10,0	PG7	7,0	17,0	10,0	34,0	33,0	16,0	0,560	50
15020050209	Black	13,0	PG9	12,0	20,0	10,0	37,0	34,0	20,0	0,700	50
15020050211	Black	15,8	PG11	15,5	23,0	10,0	42,0	37,5	24,5	1,040	50
15020050213	Black	18,5	PG13,5	13,5	26,5	13,0	46,0	47,0	27,0	1,400	50
15020050216	Black	21,2	PG16	18,0	29,5	13,0	50,0	48,0	27,0	1,860	50
15020050221	Black	28,5	PG21	24,0	37,0	13,0	56,0	58,0	34,0	2,800	25
15020050229	Black	34,5	PG29	32,0	44,0	15,0	67,5	65,0	43,0	4,200	10
15020050236	Black	42,5	PG36	36,5	52,0	15,0	83,0	72,0	51,5	7,200	10
15020050248	Black	54,5	PG48	48,5	64,0	16,0	96,0	84,0	65,0	10,200	5
15020050007	Grey	10,0	PG7	7,0	17,0	10,0	34,0	33,0	16,0	0,560	50
15020050009	Grey	13,0	PG9	12,0	20,0	10,0	37,0	34,0	20,0	0,700	50
15020050011	Grey	15,8	PG11	15,5	23,0	10,0	42,0	37,5	24,5	1,040	50
15020050013	Grey	18,5	PG13,5	13,5	26,5	13,0	46,0	47,0	27,0	1,400	50
15020050016	Grey	21,2	PG16	18,0	29,5	13,0	50,0	48,0	27,0	1,860	50
15020050021	Grey	28,5	PG21	24,0	37,0	13,0	56,0	56,0	34,0	2,800	25
15020050029	Grey	34,5	PG29	32,0	44,0	15,0	67,5	65,0	43,0	4,200	10
15020050036	Grey	42,5	PG36	36,5	52,0	15,0	83,0	72,0	51,5	7,200	10
15020050048	Grey	54,5	PG48	48,5	64,0	16,0	96,0	84,0	65,0	10,200	5

RQW1-N - IP66, conically sealed, NPT thread, 90° connector

FLEXA No.	Colour	OD [mm]	thread size NPT	Ø I [mm]	Ø B [mm]	C [mm]	E [mm]	F [mm]	Ø D [mm]	Weight [kg\|100]	PU [pcs.]
15727015205	Black	15,8	NPT 1/2"	16,0	26,0	11,0	42,0	40,5	26,0	1,100	50
15727021205	Black	21,2	NPT 1/2"	16,0	29,5	13,0	51,0	48,5	27,0	1,600	50
15727028214	Black	28,5	NPT 3/4"	21,0	37,0	14,0	57,5	57,0	34,0	3,000	25
15727034210	Black	34,5	NPT 1"	28,0	44,0	16,0	67,5	66,0	43,0	4,650	10
15727042217	Black	42,5	NPT 1 1/4"	35,0	52,0	18,0	83,0	76,0	52,0	5,100	10
15727054209	Black	54,5	NPT 1 1/2"	41,0	64,0	18,0	95,0	87,0	64,5	11,870	5
