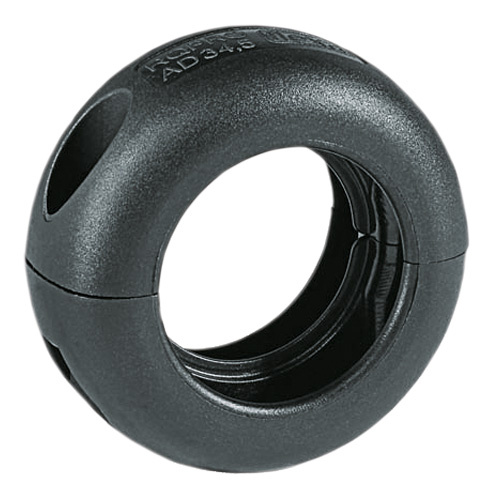

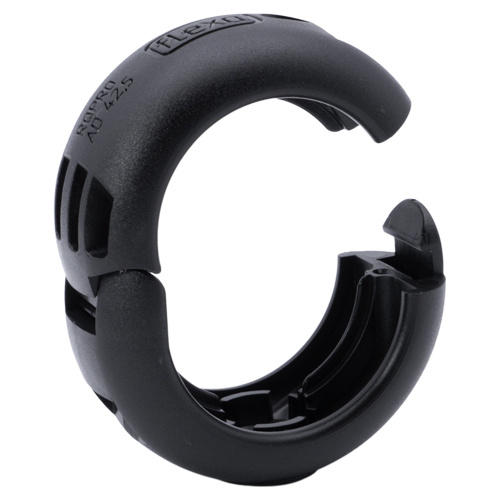

Flexa RQPRO/RQPRO-S - protector for conduits
- RQPRO is a plug-in and screw-type or screwless (RQPRO-S) cover designed to protect ROHRflex corrugated conduits. It is intended for static and dynamic applications inside and outside railway carriages. Automation and robotics.
Flexa RQPRO/RQPRO-S
RQPRO is a plug-in and screw-type or screwless (RQPRO-S) cover made of polyamide (PA), designed to protect ROHRflex corrugated conduits. It is intended for static and dynamic applications inside and outside railway carriages. Operating temperature range: -50°C to +120°C. The cover is available in black.
Product features:
- free of silicone, cadmium, halogen,
- self-extinguishing,
- fit for high mechanical stress,
- impact-resistant,
- The set includes a stainless steel screw with a self-locking nut for the RQPRO connector.
Applications:
- machine and plant constructions
- automotive
- railway industry
- shipbuilding
- automation
- electrical installations
RQPRO - cable cover, EN 45545-2 and NFPA130 railway certifications, PA material, stainless steel screw with self-locking nut included
| FLEXA No. | Colour | OD [mm] |
Ø A [mm] |
B [mm] |
C [mm] |
D [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|
| 15524021200 | Black | 21,2 | 45,0 | 22,0 | 31,0 | 0 | 2,330 | 25 |
| 15524028200 | Black | 28,5 | 52,0 | 26,0 | 39,0 | 0 | 2,900 | 25 |
| 15524034200 | Black | 34,5 | 58,0 | 26,0 | 45,0 | 0 | 3,270 | 10 |
| 15524042200 | Black | 42,5 | 66,0 | 30,0 | 54,0 | 0 | 4,050 | 10 |
| 15524054200 | Black | 54,5 | 77,0 | 30,0 | 65,0 | 0 | 4,900 | 5 |
| 15524079200 | Black | 79,2 | 108,0 | 60,0 | 90,9 | 30,0 | 14,550 | 5 |
RQPRO-S - cable protection, EN 45545-2 and NFPA130 railway certifications, PA material, screwless
| FLEXA No. | Colour | OD [mm] |
Ø A [mm] |
B [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|
| 15524042201 | Black | 42,5 | 66,0 | 30,0 | 4,050 | 10 |
To download
Producer
Product code
RQPRO/RQPRO-S
Series
Thread
None
Compatible with
RQMR
, FLEXAquick
Material
Polyamide
Tubing outer diameter (mm)
21,2
, 28.5
, 34,5
, 42,5
, 54,5
, 79,2
Product width in millimeters
45
, 52
, 58
, 66
, 77
, 108
Product height in millimetres
22
, 30
, 26
, 60
Temperature range
-50...+120°C
Colour
Black
