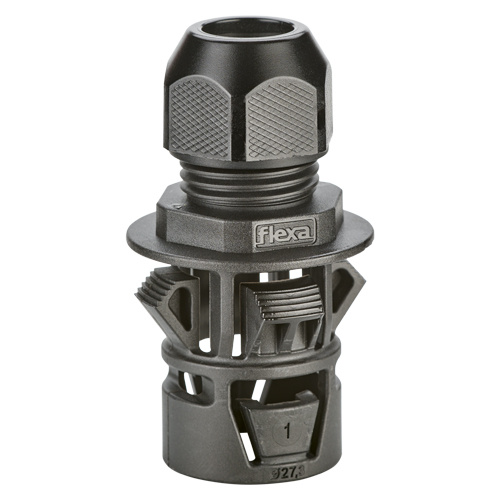

Flexa RQLG1Z-S - connector for corrugated tubings
- RQLG1Z-S a connector designed for ROHRflex corrugated plastic tubings. The product is made of polyamide (PA), equipped with a quick coupler (FLEXAquick straight technology).
Flexa RQLG1Z-S
The RQLG1Z-S conduit fitting by Flexa is a lightweight plastic connector designed for use with ROHRflex conduit systems. Its extended external thread makes it ideal for installations in enclosures with thicker walls. The polyamide (PA) body ensures durability, while the FLEXAquick snap-in mechanism allows for fast, tool-free assembly. The product offers a protection rating of IP66.
Connector features
- for quick assembly without counter nut
- for wall thicknesses from 1 to 4 mm
- free of silicone, cadmium, halogen
- self-extinguishing
- fit for high mechanical stress
- impact-resistant
Applications
- Facade- and window construction
- machine and plant constructions
- electrical installations
RQLG1Z-S - IP66, plug-type connection with strain relief
| FLEXA No. | Colour | OD [mm] |
Klemmbereich [mm] |
Ø I [mm] |
Ø B [mm] |
D [mm] |
WS1 [mm] |
WS2 [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|---|
| 15116021208 | Black | 21,2 | 3,5–8,0 | 27,3 | 37,0 | 65,0 | 24 | 27 | 1,870 | 50 |
| 15116021213 | Black | 21,2 | 7,0–13,0 | 27,3 | 37,0 | 65,0 | 24 | 27 | 1,870 | 50 |
