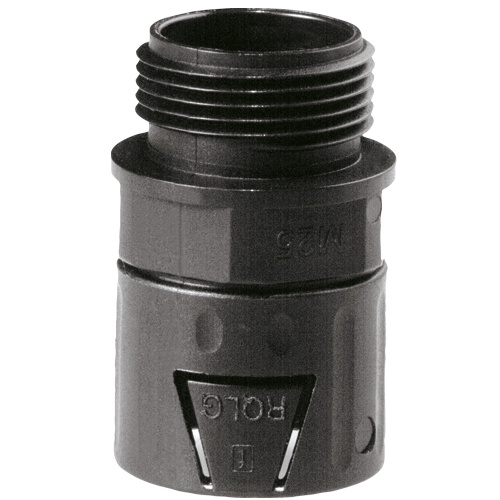

Flexa RQLG - connector for corrugated tubings

  • RQLG a connector designed for ROHRflex corrugated plastic tubings. The product is made of polyamide (PA), equipped with a quick coupler (FLEXAquick technology).
Flexa RQLG - connector for corrugated tubings
Material: Polyamide
Ingress Protection: IP65
Colour: Black
Ask about the product

Flexa RQLG

RQLG is a Flexa brand connector designed for conduits. Made of durable polyamide (PA), it is highly resistant to mechanical and environmental factors. The operating temperature range is from -40°C to +120°C. The degree of protection is IP65 for each connector in this series. The product is equipped with an integrated snap-in sleeve with a conical seal. The connector, based on FLEXAquick quick-connect technology, is designed for ROHRflex conduits.



Connector features

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • machine and plant constructions
  • automotive
  • automation
  • electrical installations

RQLG1-M - IP65, UL 1696 E86359 certified, metric thread

FLEXA No. Colour OD
[mm]		 Thread type Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
1515100212Black10.0M12 x 1.57.017.011.034.5160.50050
1515103216Black13.0M16 x 1.510.020.011.037.0180.68050
1515105220Black18.5M20 x 1.512.524.011.038.0220.90050
1515101822Black18.5M20 x 1.514.026.013.040.0271.00050
1515108225Black21.2M25 x 1.514.029.513.045.5271.20050
1515102122Black21.2M20 x 1.514.029.513.045.5271.20050
1515108225Black28.5M25 x 1.517.033.016.048.5301.50050
1515108232Black34.5M32 x 1.518.836.013.049.0351.70025
1515108233Black34.5M32 x 1.518.836.013.049.0351.70025
1515103420Black34.5M40 x 1.526.044.015.055.0432.70025
1515104240Black42.5M40 x 1.526.044.015.055.0432.70025
1515104250Black42.5M50 x 1.535.052.016.061.0534.30010
1515104250Black54.5M50 x 1.535.052.016.061.0534.30010
15151054263Black54.5M63 x 1.545.064.016.068.0665.90010


RQLG1-M - IP65, UL 1696 E86359 certified, PG thread

FLEXA No. Colour OD
[mm]		 Thread type Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
1555100207Black10.0PG77.017.012.034.5160.50050
1555103209Black13.0PG910.020.012.037.0180.68050
1555105211Black15.8PG1112.524.012.038.0220.80050
1555108213Black18.5PG13.514.026.013.040.0271.00050
1555108216Black21.2PG1614.029.513.045.5271.20050
1555108221Black28.5PG2118.036.015.049.0351.50025
1555103429Black34.5PG2926.044.015.054.0432.70025
1555104236Black42.5PG3635.052.016.061.0534.30010
1555105248Black54.5PG4845.064.016.068.0665.90010


RQLG1-M - IP65, UL 1696 E86359 certified, NPT thread

FLEXA No. Colour OD
[mm]		 Thread type Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
1575105205Black15.8NPT 1/2"12.423.713.038.0220.90050
1575102205Black21.2NPT 1/2"14.029.513.045.5271.20050
1575108224Black28.5NPT 3/4"18.837.012.547.0341.70025
1575104210Black34.5NPT 1"25.046.015.051.0432.50025

To download
Producer
Flexa
Product code
RQLG
Series
RQLG
Thread
M12
,
M16
,
M20
,
M25
,
M32
,
M40
,
M50
,
M63
,
PG 07
,
PG 09
,
PG 11
,
PG 13.5
,
PG 16
,
PG 21
,
PG 29
,
PG 36
,
PG 48
,
NPT 1/2"
,
NPT 3/4"
,
NPT 1"
Material
Polyamide
Ingress Protection
IP65
Tubing outer diameter (mm)
10
,
13
,
15.8 mm
,
18.5
,
21.2 mm
,
28,5 mm
,
34.5 mm
,
42.5 mm
,
54.5 mm
Product width in millimeters
17
,
20
,
24
,
26
,
29.5
,
36
,
44
,
52
,
64
,
23,7
,
37
,
46
Product height in millimetres
34.5
,
37
,
38
,
40
,
45.5
,
49
,
54
,
61
,
68
,
47
,
51
Temperature range
-40...+120°C
Colour
Black
