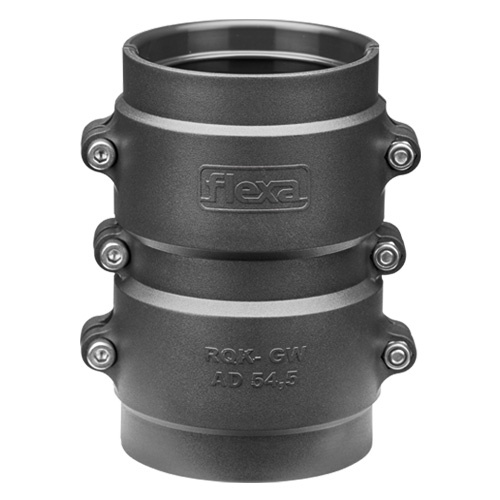

Flexa RQK-GW-PA - repair sleeve
- RQK-GW-PA is a Flexa repair sleeve consisting of two halves with a built-in TPE seal, which can be fastened with self-locking screws and can be installed on both sides.
Flexa RQK-GW-PA
RQK-GW-PA is a Flexa repair sleeve consisting of two halves with a built-in TPE seal, which can be fastened with self-locking screws and can be mounted on both sides. The body is made of polyamide (PA) and provides IP68/IP69K tightness.
Repair sleeve features:
- Retrofit installation and repair of existing protective conduit systems for fine and coarse profile
- simple mounting and dismounting with self-locking screws
- free of silicone, cadmium, halogen
- self-extinguishing
- fit for high mechanical stress
- impact-resistant
- especially for static and dynamic applications indoor and outdoor of railway cars
Applications
- for static and dynamic applications indoor and outdoor of railway cars
- heavy machine and plant constructions
- insulated electrical installations for application rules machine and plant constructions acc. to DIN EN 60204
RQK-GW-PA- IP68/IP69K, railway certifications EN 45545-2 and NFPA130, body made of PA and TPE sealing
| FLEXA No. | Colour | OD [mm] |
Ø B1 [mm] |
Ø B2 [mm] |
Ø I [mm] |
D [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|
| 15609042242 | Black | OD1 42,5, OD2, 42,5 | 71,0 | 71,0 | 33,0 | 80,0 | 10,0 | 1 |
| 15609054254 | Black | OD1 54,5, OD2, 54,5 | 82,0 | 82,0 | 47,0 | 100,0 | 14,2 | 1 |
