Flexa RQK - connector for corrugated tubings
- RQK is a Flexa brand connector designed for conduits. The product is made of polyamide (PA) or TPE and equipped with a quick connector (FLEXAquick distributor technology).
Flexa RQK
Flexa RQK is a plastic connector from the FLEXAquick® system, designed for connecting two ROHRflex® protective pipes. It provides a high degree of protection: IP66, IP68, and IP69K (depending on the variant). The connector body is made of polyamide (PA) or TPE (depending on the variant), which is resistant to oils, gasoline, and a wide range of acids and solvents. The product is a single-piece design and allows for quick pipe installation by simply sliding it on. The operating temperature range of the connector is from -40/50°C to +120°C.
Connector features
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- machine and plant constructions
- automotive
- railway industry
- shipbuilding
- automation
- electrical installations

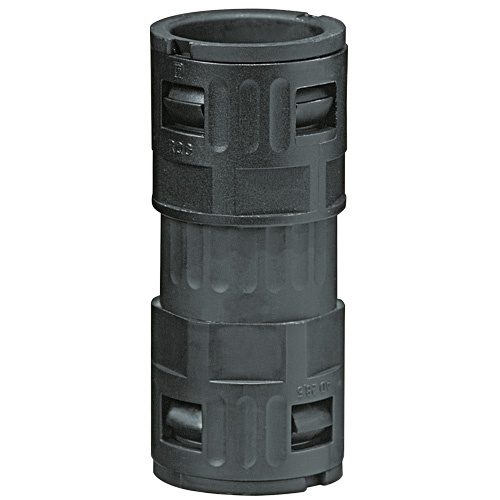

RQK-PA - quick-type connector, IP68/IP69K, railway certifications EN 45545-2 and NFPA130, temperature range -50°C ... +120°C, PA material
| FLEXA No. | Colour | OD [mm] |
Ø B1 [mm] |
Ø B2 [mm] |
Ø I [mm] |
D [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|
| 15602021221 | Black | OD1 - 21,2 / OD2 - 21,2 | 29,5 | 29,5 | 17,0 | 80,0 | 2,600 | 10 |
| 15602028228 | Black | OD1 - 28,5 / OD2 - 28,5 | 37,0 | 37,0 | 23,5 | 86,5 | 3,500 | 10 |
| 15602034234 | Black | OD1 - 34,5 / OD2 - 34,5 | 44,0 | 44,0 | 30,0 | 91,5 | 4,700 | 10 |
| 15602042242 | Black | OD1 - 42,5 / OD2 - 42,5 | 52,0 | 52,0 | 36,5 | 145,5 | 11,200 | 10 |
| 15602054254 | Black | OD1 - 54,5 / OD2 - 54,5 | 64,0 | 64,0 | 47,0 | 172,5 | 19,900 | 10 |

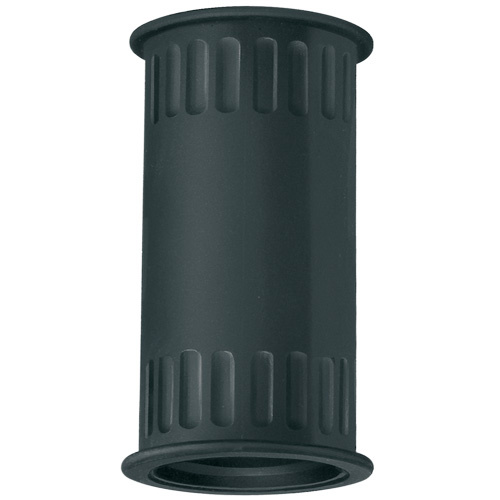

RQK - connector, IP66, temperature range -40°C ... +120°C, TPE material
| FLEXA No. | Colour | OD [mm] |
Ø B1 [mm] |
Ø B2 [mm] |
D [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|
| 15020066210 | Black | OD1 - 10,0 / OD2 - 10,0 | 17,5 | 17,5 | 33,5 | 0,300 | 10 |
| 15020066207 | Black | OD1 - 13,0 / OD2 - 13,0 | 20,0 | 20,0 | 36,5 | 0,370 | 10 |
| 15020066208 | Black | OD1 - 15,8 / OD2 - 15,8 | 23,0 | 23,0 | 44,5 | 0,500 | 10 |
| 15020066209 | Black | OD1 - 18,5 / OD2 - 18,5 | 26,5 | 26,5 | 48,0 | 0,800 | 10 |
| 15020066201 | Black | 2 x OD 21,2 | 29,5 | 29,5 | 46,0 | 0,800 | 10 |
| 15020066202 | Black | OD1 - 28,5 / OD2 - 28,5 | 36,5 | 36,5 | 46,0 | 1,100 | 10 |
| 15020066203 | Black | OD1 - 34,5 / OD2 - 34,5 | 45,0 | 45,0 | 48,0 | 2,000 | 10 |
| 15020066204 | Black | OD1 - 42,5 / OD2 - 42,5 | 55,0 | 55,0 | 60,0 | 4,000 | 10 |
| 15020066205 | Black | OD1 - 54,5 / OD2 - 54,5 | 67,5 | 67,5 | 70,0 | 6,100 | 10 |
To download
Producer
Product code
RQK
Series
Thread
/
Material
Polyamide
, Thermoplastic elastomer - TPE
Ingress Protection
IP69K
, IP68
, IP66
Tubing outer diameter (mm)
10
, 13
, 15,8
, 18.5
, 21,2
, 28.5
, 34,5
, 42,5
, 54,5
Product width in millimeters
17.5
, 20
, 23
, 26.5
, 36,5
, 45
, 55
, 67,5
Product height in millimetres
33.5
, 36.5
, 44.5
, 48
, 46
, 60
, 70
, 80
, 86,5
, 91.5
, 145,5
, 172,5
Temperature range
-40...+120°C
, -50...+120°C
Colour
Black
