Flexa RQGR - connector for corrugated tubings
- RQGST is a Flexa brand connector designed for conduits. The product is made of polyamide (PA) and equipped with a quick-type connector (FLEXAquick technology).
Flexa RQGST

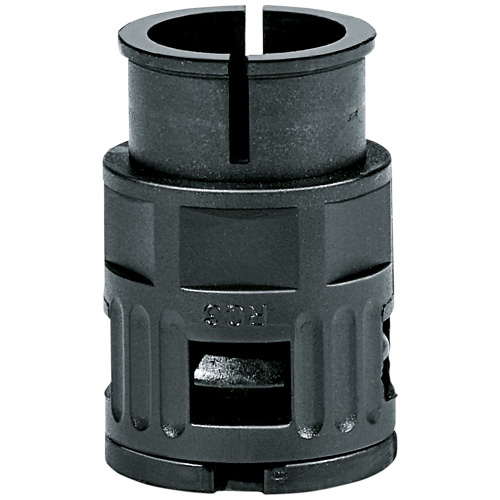

Flexa RQGST is a plastic connector from the FLEXAquick® system, designed for ROHRflex® conduits. It provides a high degree of protection (IP68 and IP69K). The connector body is made of polyamide (PA), which is resistant to oils, gasoline, and a wide range of acids and solvents. The product has a clamp for conduits. The operating temperature range of the connector is from -40°C to +120°C.
Connector features
- to connect with metric solid installation tube
- incl. conduit clamp
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- machine and plant constructions
- automotive
- railway industry
- shipbuilding
- automation
- electrical installations
RQGST - IP68/IP69K, railway certifications EN 45545-2 and NFPA130, conduit clamp
| FLEXA No. | OD [mm] |
Colour | Connecting pipe Ø [mm] |
Ø I [mm] |
Ø B [mm] |
C [mm] |
D [mm] |
WS [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|---|
| 15604015216 | 15,8 | Black | 16,0 | 12,5 | 23,0 | 13,0 | 41,0 | 21 | 0,750 | 50 |
| 15604021220 | 21,2 | Black | 20,0 | 17,0 | 29,5 | 13,0 | 45,0 | 27 | 1,150 | 50 |
| 15604028225 | 28,5 | Black | 25,0 | 20,5 | 37,0 | 15,0 | 49,5 | 34 | 1,700 | 25 |
| 15604034232 | 34,5 | Black | 32,0 | 25,5 | 44,0 | 15,0 | 52,5 | 40 | 2,200 | 25 |
| 15604042240 | 42,5 | Black | 40,0 | 32,0 | 52,0 | 15,5 | 54,5 | 49 | 3,100 | 25 |
| 15604054250 | 54,5 | Black | 50,0 | 42,5 | 64,0 | 16,0 | 55,5 | 60 | 4,000 | 10 |
To download
Producer
Product code
RQGST
Series
Thread
/
Material
Polyamide
Ingress Protection
IP69K
, IP68
Tubing outer diameter (mm)
15,8
, 21,2
, 28.5
, 34,5
, 42,5
, 54,5
Product width in millimeters
23
, 29.5
, 37
, 44
, 52
, 64
Product height in millimetres
41
, 45
, 49.5
, 52.5
, 54.5
, 55,5
Temperature range
-50...+120°C
Colour
Black
