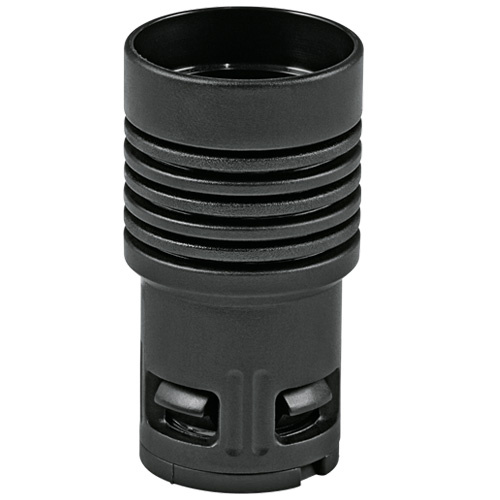

Flexa RQGR - connector for corrugated tubings
- RQGR is a Flexa brand connector designed for conduits. The product is made of polyamide (PA) and equipped with a quick-type connector (FLEXAquick technology).
Flexa RQGR
Flexa RQGR is a plastic connector from the FLEXAquick® system, designed for ROHRflex® protective pipes. It provides a high degree of protection (IP68 and IP69K). The connector body is made of polyamide (PA), which is resistant to oils, gasoline, and a wide range of acids and solvents. The product is a single-piece design and allows for quick pipe installation by simply sliding it on. The operating temperature range of the connector is from -50°C to +120°C.
Connector features
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- machine and plant constructions
- automotive
- railway industry
- shipbuilding
- automation
- electrical installations
RQGR - IP68/IP69K, railway certifications EN 45545-2 and NFPA130
| FLEXA No. | Colour | OD [mm] |
Ø B [mm] |
Ø I [mm] |
D [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|
| 15601010221 | Black | OD1 10,0, OD2 21,2 | 17,0 | 8,0 | 58,0 | 0,800 | 10 |
| 15601010228 | Black | OD1 10,0, OD2 28,5 | 17,0 | 7,0 | 63,0 | 1,600 | 10 |
| 15601013215 | Black | OD1 13,0, OD2 15,8 | 20,0 | 10,0 | 56,0 | 0,900 | 10 |
| 15601013221 | Black | OD1 13,0, OD2 21,2 | 20,0 | 10,0 | 60,5 | 0,900 | 10 |
| 15601013228 | Black | OD1 13,0, OD2 28,5 | 20,0 | 10,0 | 62,5 | 1,500 | 10 |
| 15601015221 | Black | OD1 15,8, OD2 21,2 | 23,0 | 14,0 | 60,5 | 1,200 | 10 |
| 15601015228 | Black | OD1 15,8, OD2 28,5 | 23,0 | 12,5 | 63,0 | 1,600 | 10 |
| 15601015234 | Black | OD1 15,8, OD2 34,5 | 23,0 | 13,5 | 60,0 | 1,700 | 10 |
| 15601021228 | Black | OD1 21,2, OD2 28,5 | 29,5 | 17,0 | 65,0 | 2,140 | 10 |
| 15601021234 | Black | OD1 21,2, OD2 34,5 | 29,5 | 17,0 | 64,0 | 2,000 | 10 |
| 15601021242 | Black | OD1 21,2, OD2 42,5 | 29,5 | 17,0 | 70,5 | 3,600 | 10 |
| 15601021254 | Black | OD1 21,2, OD2 54,5 | 29,5 | 17,0 | 86,0 | 4,000 | 5 |
| 15601028234 | Black | OD1 28,5, OD2 34,5 | 37,0 | 23,5 | 70,0 | 3,200 | 10 |
| 15601028242 | Black | OD1 28,5, OD2 42,5 | 37,0 | 23,5 | 78,0 | 3,700 | 10 |
| 15601028254 | Black | OD1 28,5, OD2 54,5 | 37,0 | 23,5 | 81,5 | 4,200 | 5 |
| 15601034242 | Black | OD1 34,5, OD2 42,5 | 44,0 | 30,0 | 75,0 | 3,800 | 10 |
| 15601034254 | Black | OD1 34,5, OD2 54,5 | 44,0 | 30,0 | 83,0 | 4,400 | 5 |
| 15601042254 | Black | OD1 42,5, OD2 54,5 | 52,0 | 39,0 | 84,0 | 4,500 | 5 |
To download
Producer
Product code
RQGR
Series
Thread
/
Material
Polyamide
Ingress Protection
IP69K
, IP68
Tubing outer diameter (mm)
10
, 13
, 15,8
, 21,2
, 28.5
, 34,5
, 42,5
, 54,5
Product width in millimeters
17
, 20
, 23
, 29.5
, 37
, 44
, 52
Product height in millimetres
56
, 58
, 60
, 60.5
, 62.5
, 63
, 64
, 65
, 70
, 70.5
, 86
, 78
, 81,5
, 75
, 83
, 84
Temperature range
-50...+120°C
Colour
Black
