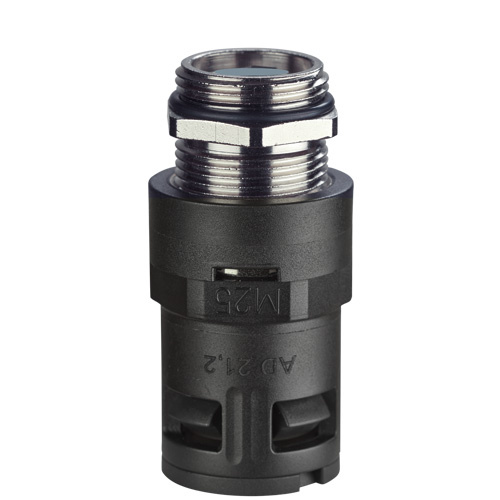

Flexa RQGKZE-M- connector for corrugated tubings
- RQGKZE-M a connector designed for ROHRflex corrugated plastic tubings. The product is made of polyamide (PA), equipped with a quick coupler (FLEXAquick technology).
Flexa RQGKZE-M
RQGKZE-M is a conduit fitting by Flexa, designed for use with ROHRflex protective conduit systems. It features a metric external thread made of nickel-plated brass and a body made of durable PA material. Supports electromagnetic compatibility (EMC), enabling effective shielding and signal protection from interference..The fitting ensures a high protection rating of IP68/IP69K, making it suitable for harsh industrial environments. Thanks to FLEXAquick technology, it allows for fast and tool-free installation. The product complies with EN 45545-2 (hazard level HL3) and NFPA 130 standards, enabling its use in railway and other demanding applications.
Connector features
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- high torque of thread connection
- optimal held and sealing of cables at the same time
Applications
- machine and plant constructions
- automotive
- railway industry
- shipbuilding
- automation
- electrical installations
- EMC applications
RQGKZE-M - EMC, IP68/IP69K, railway certifications EN 45545-2 and NFPA130, metric thread
| FLEXA No. | Colour | OD [mm] |
Thread type | Klemmbereich [mm] |
Ø I [mm] |
Ø B [mm] |
C [mm] |
D [mm] |
WS1 [mm] |
WS2 [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1511013216 | Black | 13.0 | M16 x 1.5 | 5.0–8.5 | 8.5 | 24.0 | 5.0 | 55.0 | 22 | 17 | 3.440 | 50 |
| 1511052200 | Black | 15.8 | M20 x 1.5 | 7.5–10.0 | 11.0 | 27.0 | 6.0 | 61.0 | 25 | 22 | 3.500 | 50 |
| 1511052220 | Black | 21.2 | M20 x 1.5 | 10.0–12.5 | 12.5 | 33.0 | 6.5 | 63.0 | 25 | 22 | 6.470 | 25 |
| 1511002125 | Black | 21.2 | M25 x 1.5 | 9.0–16.0 | 15.5 | 33.0 | 7.0 | 70.0 | 31 | 27 | 6.880 | 25 |
| 1511028225 | Black | 28.5 | M25 x 1.5 | 10.0–16.0 | 15.5 | 41.0 | 7.0 | 71.0 | 31 | 27 | 7.200 | 25 |
| 151100343232 | Black | 34.5 | M32 x 1.5 | 14.5–20.5 | 21.0 | 48.0 | 8.0 | 79.0 | 46 | 34 | 11.200 | 25 |
| 1511004240 | Black | 42.5 | M40 x 1.5 | 21.0–26.0 | 27.0 | 57.3 | 8.0 | 89.0 | 55 | 43 | 18.900 | 10 |
| 15110045250 | Black | 54.5 | M50 x 1.5 | 25.0–35.0 | 35.5 | 68.0 | 9.0 | 122.0 | 65 | 65 | 31.470 | 10 |
| 15110054263 | Black | 54.5 | M63 x 1.5 | 32.0–41.5 | 41.5 | 73.0 | 10.0 | 124.0 | 65 | 65 | 39.460 | 10 |
To download
Producer
Product code
RQGKZE-M
Series
Thread
M16
, M20
, M25
, M32
, M40
, M50
, M63
Material
Polyamide
, Nickel-plated Brass
Ingress Protection
IP68
, IP69K
Tubing outer diameter (mm)
13
, 15,8
, 21,2
, 28.5
, 34,5
, 42,5
, 54,5
Product width in millimeters
24
, 27
, 33
, 42,8
, 48
, 57,3
, 68
, 73
Product height in millimetres
55
, 61
, 64
, 69
, 71
, 79
, 106
, 122
, 124
Temperature range
-50...+120°C
Colour
Black
