Flexa RQGKZAE-M- connector for corrugated tubings

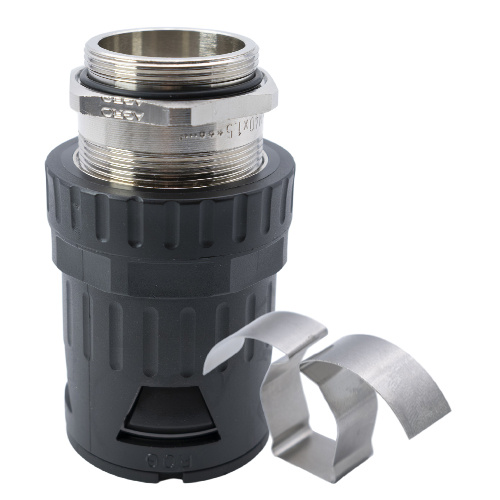

  • RQGKZAE-M a connector designed for ROHRflex corrugated plastic tubings. The product is made of polyamide (PA), equipped with a quick coupler (FLEXAquick-Progress technology).
Flexa RQGKZAE-M- connector for corrugated tubings
Material: Polyamide , Nickel-plated Brass
Ingress Protection: IP68, IP69K
Colour: Black
Ask about the product

Flexa RQGKZAE-M

The Flexa RQGKZAE-M conduit connector is a compact solution designed for ROHRflex systems, offering protection (IP68/IP69K) and resistance to harsh operating conditions. Equipped with a PA 6 plastic body and a metric external thread made of nickel-plated brass, the connector enables quick, tool-free installation thanks to FLEXAquick®-Progress® – easy connect technology. The snap-in sleeve with a built-in contact spring ensures effective EMC shielding and secure cable fastening. The product operates in a temperature range from -50°C to +120°C and meets the requirements of EN 45545-2 (HL3) and NFPA 130 standards.



Connector features

  • rational tubing assembly due to one-piece connector with push-in lock for corrugated tubings with coarse and fine profile
  • the integrated Progress® EMC easyCONNECT cable gland ensures full installation control and compensates for tolerances in the shield thicknesses for secure shield tapping
  • the spring system enables good and secure shield contact both with partially stripped shielding cables and with fully exposed cable shields
  • free of silicone, cadmium and halogen
  • self-extinguishing
  • high torque of thread connection
  • optimal held and sealing of cables at the same time
  • REACH and RoHS compliant
  • the sealing insert of the tension load complies with EN45545-3 with E30 classification

Applications

  • Railway
  • Automation
  • Machinery and equipment

RQGKZAE-M - EMC, IP68/IP69K, railway certifications EN 45545-2 and NFPA130, metric thread

FLEXA No.ColourOD
[mm]		Thread typeClamp range 1
[mm]		Clamp range 2
[mm]		Ø I
[mm]		Ø B
[mm]		C
[mm]		D
[mm]		WS1
[mm]		WS2
[mm]		Weight
[kg|100]		PU
[pcs.]
1511905216Black15.8M16 x 1.56.0–8.08.0–10.510.723.05.057.023183.27850
1511925216Black15.8M16 x 1.56.0–8.08.0–10.510.723.010.062.023183.40650
1511902220Black21.2M20 x 1.58.0–11.011.0–15.015.133.06.063.030245.68250
1511922220Black21.2M20 x 1.58.0–11.011.0–15.015.133.010.067.030246.05850
1511902825Black28.5M25 x 1.512.5–16.016.0–20.520.641.07.070.0393010.25825
1511922825Black28.5M25 x 1.512.5–16.016.0–20.520.641.011.074.0393010.73325
151190343232Black34.5M32 x 1.517.0–21.021.0–25.526.044.08.077.0413615.28125
1511923432Black34.5M32 x 1.517.0–21.021.0–25.526.044.013.082.0413616.75625
1511904240Black42.5M40 x 1.524.0–28.528.5–33.033.258.08.088.0554625.83810
1511924240Black42.5M40 x 1.524.0–28.528.5–33.033.258.013.093.0554627.40510
15119054250Black54.5M50 x 1.533.0–37.037.0–42.042.568.09.0104.0655530.76210
15119254250Black54.5M50 x 1.533.0–37.037.0–42.042.568.014.0109.0655532.35610
15119054263Black54.5M63 x 1.540.0–46.046.0–52.052.279.010.0123.0657056.10410
15119254263Black54.5M63 x 1.540.0–46.046.0–52.052.279.014.0127.0657058.85110
To download
Producer
Flexa
Product code
RQGKZAE-M
Series
RQGKZAE-M
Thread
M16
,
M20
,
M25
,
M32
,
M40
,
M50
,
M63
Material
Polyamide
,
Nickel-plated Brass
Ingress Protection
IP68
,
IP69K
Tubing outer diameter (mm)
15,8
,
21,2
,
28.5
,
34,5
,
42,5
,
54,5
Product width in millimeters
23
,
33
,
41
,
44
,
58
,
68
,
79
Product height in millimetres
57
,
62
,
66
,
70
,
72
,
76
,
77
,
82
,
101
,
106
,
119
,
124
,
123
,
127
Temperature range
-50...+120°C
Colour
Black
