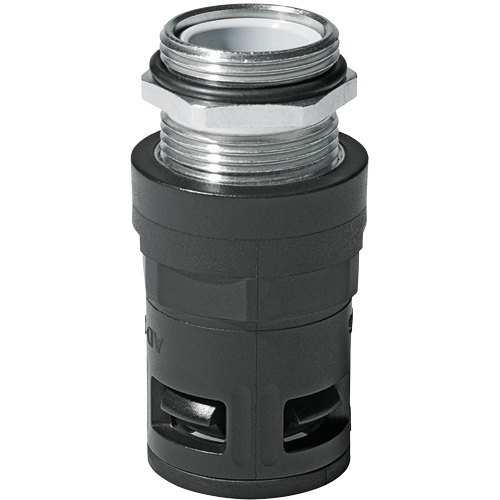

Flexa RQGKZA-M- connector for corrugated tubings

  • RQGKZA-M a connector designed for ROHRflex corrugated plastic tubings. The product is made of polyamide (PA), equipped with a quick coupler (FLEXAquick-Progress technology).
Flexa RQGKZA-M- connector for corrugated tubings
Material: Polyamide , Nickel-plated Brass
Ingress Protection: IP68, IP69K
Colour: Black
Ask about the product

Flexa RQGKZA-M

The RQGKZA-M connector by Flexa is a compact solution designed for ROHRflex systems, offering high sealing performance (IP68/IP69K) and resistance to demanding operating conditions. It features a PA plastic body and an external metric thread made of nickel-plated brass. Thanks to FLEXAquick®-Progress® technology, the fitting enables quick, tool-free installation and ensures a durable, sealed connection – combining a snap-in sleeve with a threaded locking system. The product operates in a wide temperature range from -50°C to +120°C and complies with railway standards EN 45545-2 (HL3) and NFPA 130.



Connector features

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • high torque of thread connection
  • optimal held and sealing of cables at the same time
  • one-piece terminal block for isolation gentle fixation
  • REACH and RoHS compliant
  • The sealing insert of the tension load complies with EN45545-3 with E30 classification

Applications

  • Railway
  • Automation
  • Machinery and equipment

RQGKZA-M - IP68/IP69K, railway certifications EN 45545-2 and NFPA130, metric thread

FLEXA No. Colour OD
[mm]		 Thread type Clamp range 1
[mm]		 Clamp range 2
[mm]		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg|100]		 PU
[pcs.]
15114013216Black13,0M16 x 1,54,5–6,06,124,05,050,023182,87650
15114113216Black13,0M16 x 1,56,0–8,08,124,05,050,023182,84250
15114213216Black13,0M16 x 1,54,5–6,06,124,010,055,023183,25050
15114313216Black13,0M16 x 1,56,0–8,08,124,010,055,023183,21250
15114015216Black15,8M16 x 1,56,0–8,08,0–10,510,723,05,053,021182,99450
15114215216Black15,8M16 x 1,56,0–8,08,0–10,510,723,010,058,021183,36450
15114015220Black15,8M20 x 1,56,0–8,08,029,06,056,027244,95050
15114115220Black15,8M20 x 1,58,0–11,011,329,06,056,027244,95050
15114215220Black15,8M20 x 1,56,0–8,08,029,010,060,027245,32250
15114315220Black15,8M20 x 1,58,0–11,011,329,010,060,027245,23450
15114021220Black21,2M20 x 1,58,0–11,011,0–15,015,133,06,061,030245,75750
15114221220Black21,2M20 x 1,58,0–11,011,0–15,015,133,010,065,030246,12950
15114021225Black21,2M25 x 1,59,5–12,512,536,07,066,034308,32525
15114121225Black21,2M25 x 1,512,5–16,016,536,07,066,034308,14425
15114221225Black21,2M25 x 1,59,5–12,512,536,011,070,034308,79925
15114321225Black21,2M25 x 1,512,5–16,016,536,011,070,034308,61925
15114028225Black28,5M25 x 1,512,5–16,016,0–20,520,641,07,067,039309,56325
15114228225Black28,5M25 x 1,512,5–16,016,0–20,520,641,011,071,0393010,04025
15114028232Black28,5M32 x 1,514,0–17,017,043,08,070,0413613,19525
15114128232Black28,5M32 x 1,517,0–21,021,243,08,070,0413612,93125
15114228232Black28,5M32 x 1,514,0–17,017,043,013,075,0413614,09925
15114328232Black28,5M32 x 1,517,0–21,021,243,013,075,0413613,83525
15114034232Black34,5M32 x 1,517,0–21,021,0–25,526,044,08,073,0413613,42125
15114234232Black34,5M32 x 1,517,0–21,021,0–25,526,044,013,078,0413614,32525
15114034240Black34,5M40 x 1,520,0–24,024,049,08,078,0474619,75425
15114134240Black34,5M40 x 1,524,0–28,528,749,08,083,0474619,32625
15114234240Black34,5M40 x 1,520,0–24,024,049,013,078,0474621,02125
15114334240Black34,5M40 x 1,524,0–28,528,749,013,083,0474620,59325
15114042240Black42,5M40 x 1,524,0–28,528,5–33,033,258,08,094,0554623,80610
15114242240Black42,5M40 x 1,524,0–28,528,5–33,033,258,013,099,0554625,07210
15114042250Black42,5M50 x 1,529,0–33,033,263,09,099,0555529,55710
15114142250Black42,5M50 x 1,533,0–37,037,063,09,099,0555529,04910
15114242250Black42,5M50 x 1,529,0–33,033,263,014,0104,0555531,16110
15114342250Black42,5M50 x 1,533,0–37,033,263,014,0104,0555530,65310
15114054250Black54,5M50 x 1,533,0–37,037,0–42,042,568,09,0110,0655531,58710
15114254250Black54,5M50 x 1,533,0–37,037,0–42,042,568,014,0115,0655533,19110
15114054263Black54,5M63 x 1,535,0–40,040,079,010,0117,0657053,35810
15114154263Black54,5M63 x 1,540,0–46,046,379,010,0117,0657052,27710
15114254263Black54,5M63 x 1,535,0–40,040,079,014,0121,0657055,75910
15114354263Black54,5M63 x 1,540,0–46,046,379,014,0121,0657054,57810

To download
Producer
Flexa
Product code
RQGKZA-M
Series
RQGKZA-M
Thread
M16
,
M20
,
M25
,
M32
,
M40
,
M50
,
M63
Material
Polyamide
,
Nickel-plated Brass
Ingress Protection
IP68
,
IP69K
Tubing outer diameter (mm)
13
,
15,8
,
21,2
,
28.5
,
34,5
,
42,5
,
54,5
Product width in millimeters
24
,
23
,
29
,
33
,
36
,
41
,
43
,
44
,
49
,
58
,
63
,
68
,
79
Product height in millimetres
50
,
55
,
53
,
58
,
56
,
60
,
61
,
65
,
66
,
70
,
67
,
71
,
75
,
73
,
78
,
83
,
94
,
99
,
104
,
110
,
115
,
117
,
121
Temperature range
-50...+120°C
Colour
Black
