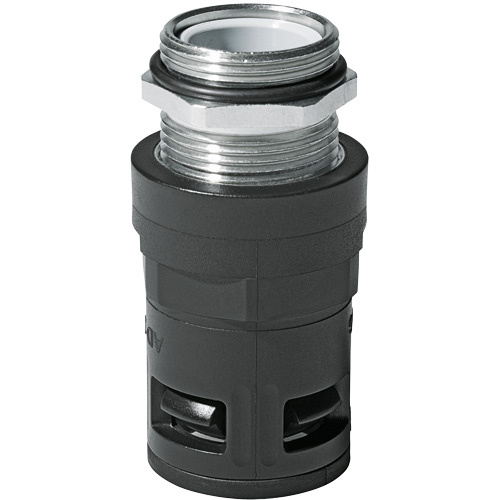

Flexa RQGKZ- connector for corrugated tubings

  • RQGKZ a connector designed for ROHRflex corrugated plastic tubings. The product is made of polyamide (PA), equipped with a quick coupler (FLEXAquick technology).
Flexa RQGKZ- connector for corrugated tubings
Material: Polyamide , Nickel-plated Brass
Ingress Protection: IP68, IP69K
Colour: Black
Ask about the product

Flexa RQGKZ

The RQGKZ is a connector from Flexa designed for use with ROHRflex conduit systems. Connector is made of durable PA plastic, offering a high protection rating of IP68/IP69K. Thanks to the integrated snap-in sleeve and FLEXAquick quick-connection technology, it enables fast and tool-free installation. The RQGKZ is built for demanding environments exposed to moisture, dust, and high pressure. It meets the requirements of the EN 45545-2 railway fire safety standard (hazard level HL3), making it suitable for industrial and railway applications.



Connector features

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • high torque of thread connection

Applications

  • machine and plant constructions
  • automotive
  • railway industry
  • shipbuilding
  • automation
  • electrical installations

RQGKZ-M - IP68/IP69K, railway certifications EN 45545-2 and NFPA130, metric thread

FLEXA No. Colour OD
[mm]		 Thread type Klemmbereich
[mm]		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg|100]		 PU
[pcs.]
1510010212Black10.0M12 x 1.53.0–5.36.520.05.051.018142.20050
1510013216Black13.0M16 x 1.55.0–8.58.524.06.056.022173.33050
1510052200Black15.8M20 x 1.57.5–10.011.027.06.060.025224.92050
1510052220Black21.2M20 x 1.510.0–12.512.533.06.063.025226.48025
1510022125Black21.2M25 x 1.59.0–16.015.533.07.070.031277.60025
1510028225Black28.5M25 x 1.59.0–16.015.533.07.070.031277.60025
1510028232Black34.5M32 x 1.512.0–19.020.042.88.073.0413410.12025
1510034324Black34.5M40 x 1.519.0–20.527.048.08.083.0464316.80025
1510042240Black42.5M40 x 1.519.0–26.027.048.08.083.0464316.80025
1510042250Black42.5M50 x 1.525.0–35.035.560.09.0110.0555528.80010
15100645263Black54.5M63 x 1.532.0–41.541.573.010.0124.0656533.46010


RQGKZ-P - IP68/IP69K, railway certifications EN 45545-2 and NFPA130, PG thread

FLEXA No. Colour OD
[mm]		 Thread type Klemmbereich
[mm]		 Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS1
[mm]		 WS2
[mm]		 Weight
[kg|100]		 PU
[pcs.]
1550010207Black10.0PG73.0–6.06.820.55.050.018141.75050
1550013209Black13.0PG94.0–7.58.524.06.056.522172.60050
1550051211Black15.8PG114.0–9.511.027.06.057.025203.50050
1550050216Black21.2PG169.0–13.014.833.06.565.030245.15025
1550028221Black28.5PG2111.5–17.018.541.07.073.039308.48025
1550034329Black34.5PG2919.0–23.025.548.58.075.0464012.82025
1550042236Black42.5PG3625.0–33.034.558.09.0103.5555017.90010
1550054248Black54.5PG4835.0–43.044.068.010.0120.0656433.90010

To download
Producer
Flexa
Product code
RQGKZ
Series
RQGKZ
Thread
M12
,
M16
,
M20
,
M25
,
M32
,
M40
,
M50
,
M63
,
PG 07
,
PG 09
,
PG 11
,
PG 16
,
PG 21
,
PG 29
,
PG 36
,
PG 48
Material
Polyamide
,
Nickel-plated Brass
Ingress Protection
IP68
,
IP69K
Product width in millimeters
20
,
20,5
,
24
,
27
,
33
,
42,8
,
48
,
57,3
,
60
,
68
,
73
,
41
,
48.5
,
58
Tubing outer diameter (mm)
10
,
13
,
15,8
,
21,2
,
28.5
,
34,5
,
42,5
,
54,5
Product height in millimetres
51
,
50
,
55
,
61
,
64
,
69
,
71
,
73
,
79
,
106
,
110
,
122
,
124
,
56.5
,
57
,
65
,
75
,
103
,
120
Temperature range
-50...+120°C
Colour
Black
