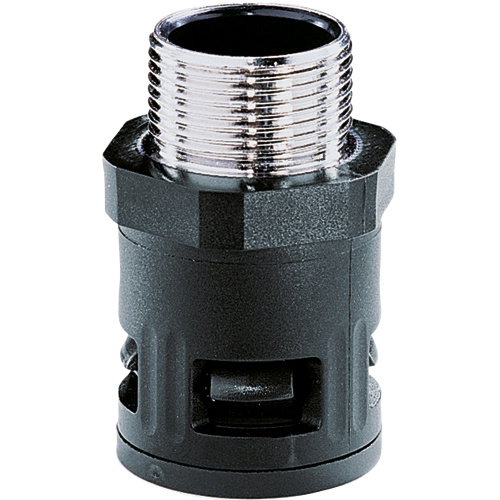

Flexa RQGKST - connector for corrugated tubings
- RQGKST a connector designed for ROHRflex corrugated plastic tubings. The product is made of polyamide (PA), equipped with a quick coupler (FLEXAquick technology).
Flexa RQGKST
RQGKST is a cable gland by Flexa designed for ROHRflex conduit systems. This straight version, featuring a thread made of nickel-plated brass and PA plastic, combines durability with resistance to harsh operating conditions. The operating temperature range is from -50°C to +120°C. The IP68/IP69K protection rating ensures a secure seal even in demanding environments. The product includes an integrated snap-in sleeve with sealing, as well as a sealing set (O-ring and flat gasket). The FLEXAquick quick-connect technology enables tool-free installation. The product complies with EN 45545-2 (HL3).
Connector features
- rational tubing assembly due to one-piece connector with push-in lock for corrugated tubings with coarse and fine profile
- simple dismounting by displacing the snap-in sleeve
- smallest out dimensions to be used under confined conditions
- free of silicone, cadmium and halogen
- self-extinguishing
- fit for high mechanical stress
- impact-resistant
- high torque of thread connection
Applications
- Railway
- Electrical installations
- Machinery and equipment
RQGKST-M - IP68/IP69K, railway certificates EN 45545-2 and NPFA130, metric thread
| FLEXA No. | Colour | OD [mm] |
Thread type | Ø I [mm] |
Ø B [mm] |
Ø B1 [mm] |
C [mm] |
D [mm] |
WS [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1510799203 | Black | 15.8 | M20 x 1.5 | 16.5 | 23.0 | 29.0 | 12.0 | 43.0 | 27 | 2.30 | 50 |
| 1510799204 | Black | 21.2 | M32 x 1.5 | 22.0 | 29.5 | 41.0 | 14.0 | 50.5 | 39 | 5.60 | 50 |
| 1510799201 | Black | 34.5 | M40 x 1.5 | 35.0 | 44.0 | 50.0 | 17.0 | 60.5 | 46 | 9.00 | 10 |
| 1510799202 | Black | 42.5 | M50 x 1.5 | 43.0 | 52.0 | 60.7 | 17.0 | 62.5 | 58 | 14.5 | 10 |
| 1510799205 | Black | 54.5 | M63 x 1.5 | 55.5 | 64.0 | 75.0 | 17.0 | 67.5 | 72 | 19.0 | 10 |
RQGKST-M - IP68/IP69K, railway certificates EN 45545-2 and NPFA130, PG thread
| FLEXA No. | Colour | OD [mm] |
Thread type | Ø I [mm] |
Ø B [mm] |
Ø B1 [mm] |
C [mm] |
D [mm] |
WS [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15020974229 | Black | 28.5 | PG29 | 29.0 | 37.0 | 48.0 | 14.0 | 46.0 | 46 | 7.200 | 25 |
To download
Producer
Product code
RQGKST
Series
Thread
M20
, M32
, M40
, M50
, M63
, PG 29
Material
Polyamide
, Nickel-plated Brass
Ingress Protection
IP68
, IP69K
Tubing outer diameter (mm)
15.8 mm
, 21.2 mm
, 34.5 mm
, 42.5 mm
, 54.5 mm
Product width in millimeters
23
, 29.5
, 44
, 52
, 64
, 37
Product height in millimetres
43
, 46
, 50.5
, 60.5
, 62.5
, 67,5
Temperature range
-50...+120°C
Colour
Black
