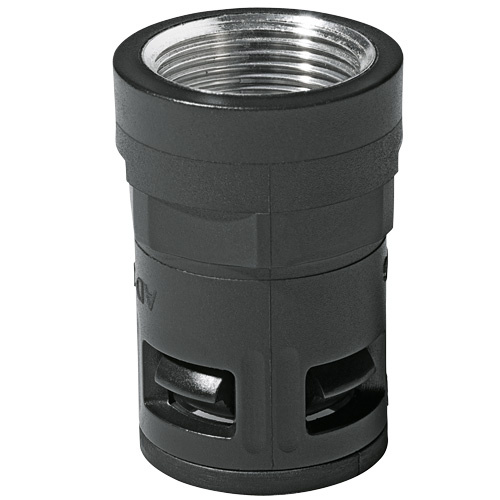

Flexa RQGK - connector for corrugated tubings

  • RQGK a connector designed for ROHRflex corrugated plastic tubings. The product is made of polyamide (PA), equipped with a quick coupler (FLEXAquick technology).
Flexa RQGK - connector for corrugated tubings
Flexa RQGK - connector for corrugated tubings
Flexa RQGK - connector for corrugated tubings
Flexa RQGK - connector for corrugated tubings
Material: Polyamide , Nickel-plated Brass
Ingress Protection: IP68, IP69K
Colour: Black
Ask about the product

Flexa RQGK

RQGK is a cable gland from Flexa designed for conduits from the ROHRflex line. The straight version features an external thread made of nickel-plated brass and a PA plastic body, combining durability with resistance to harsh operating conditions. The operating temperature range is from -50°C to +120°C. The IP68/IP69K protection rating ensures reliable sealing even in environments exposed to dust, moisture, and high pressure. The gland is equipped with an integrated snap-in sleeve with sealing, and comes with a set of seals: O-ring (OR) and flat sealing (FRH). The FLEXAquick quick-connection technology enables easy and fast tool-free installation. The product complies with EN 45545-2 (Hazard Level 3).



Connector features

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • high torque of thread connection

Applications

  • machine and plant constructions
  • automotive
  • railway industry
  • shipbuilding
  • automation
  • electrical installations

RQGK-M - IP68/IP69K, railway certificates EN 45545-2 and NPFA130, metric thread

FLEXA No. Colour OD
[mm]		 Thread type Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
15107012012Black10.0M12 x 1.57.020.010.038.5181.0850
15107013212Black13.0M16 x 1.510.023.011.039.0201.1650
15107013216Black13.0M16 x 1.58.525.012.042.0231.1250
15107015215Black15.8M16 x 1.510.027.012.043.5251.0450
15107015220Black18.5M20 x 1.511.029.013.043.5271.050
15107018225Black21.2M20 x 1.511.029.513.044.0271.250
15107021225Black21.2M25 x 1.515.036.014.048.0301.750
15107028225Black28.5M25 x 1.515.036.014.048.0301.725
15107028232Black28.5M32 x 1.520.041.015.050.5352.825
15107032232Black28.5M32 x 1.520.041.015.050.5352.825
15107032240Black34.5M32 x 1.524.044.015.052.0424.825
151070343240Black34.5M40 x 1.527.550.017.064.0486.825
15107042240Black42.5M40 x 1.532.058.017.070.0559.0510
15107042250Black42.5M50 x 1.538.060.017.075.06014.510
15107045250Black42.5M50 x 1.538.062.017.075.06014.710
15107045263Black54.5M63 x 1.545.064.017.080.06620.010
15107045263Black54.5M63 x 1.549.570.017.081.07222.710
15107013216Black13.0M16 x 1.58.525.012.042.0231.1250
151070343240Black34.5M40 x 1.527.550.017.064.0486.825
15107021225Black21.2M25 x 1.515.036.014.048.0301.750
15107032240Black34.5M32 x 1.524.044.015.052.0424.825
15107042240Black42.5M40 x 1.532.058.017.070.0559.0510
15107028232Black28.5M32 x 1.520.041.015.050.5352.825
15107015215Black15.8M16 x 1.510.027.012.043.5251.0450
15107015220Black18.5M20 x 1.511.029.013.043.5271.050
15107028225Black28.5M25 x 1.515.036.014.048.0301.725
15107032232Black28.5M32 x 1.520.041.015.050.5352.825
15107045250Black42.5M50 x 1.538.062.017.075.06014.710
15107012012Black10.0M12 x 1.57.020.010.038.5181.0850
15107018225Black21.2M20 x 1.511.029.513.044.0271.250


RQGK-P - IP68/IP69K, railway certificates EN 45545-2 and NPFA130, PG thread

FLEXA No. Colour OD
[mm]		 Thread type Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
15020074207Black10.0PG77.020.010.038.0180.9850
15020074209Black13.5PG98.524.012.042.0221.5850
15020074211Black15.8PG1111.027.012.044.0252.250
15020074213Black18.5PG13.512.529.012.046.0252.350
15020074216Black21.2PG1616.033.013.051.0312.8825
15020074221Black28.5PG2120.041.014.055.0395.925
15020074229Black34.5PG2927.548.014.059.0467.225
15020074236Black42.5PG3636.063.017.066.06013.010
15020074248Black54.5PG4847.574.017.068.07020.410


RQGK2-M - IP68/IP69K, certyfikaty kolejowe EN 45545-2 I NPFA130, gwint wewnętrzny metryczny

FLEXA No. Colour OD
[mm]		 Thread type Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
15008012012Black10.0M12 x 1.57.020.07.538.5181.50050
15008013216Black13.0M16 x 1.58.524.09.042.0222.42050
15008015220Black15.8M20 x 1.512.027.09.043.5253.14050
15008018220Black21.2M20 x 1.515.033.011.050.0304.80025
15008021225Black21.2M25 x 1.516.033.011.051.0312.88025
15008028225Black28.5M25 x 1.518.043.011.053.0415.98025
15008032232Black28.5M32 x 1.520.048.013.057.0466.80025
150080343240Black34.5M40 x 1.524.050.017.064.0486.30025
15008042240Black42.5M40 x 1.532.058.017.070.0559.05010
15008042250Black42.5M50 x 1.539.060.017.075.06014.70010
15008045250Black42.5M50 x 1.539.062.017.075.06018.00010
15008045263Black54.5M63 x 1.547.574.017.095.56518.60010


RQGK2-P - IP68/IP69K, certyfikaty kolejowe EN 45545-2 I NPFA130, gwint wewnętrzny PG

FLEXA No. Colour OD
[mm]		 Thread type Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 D
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
15020074207Black10.0PG77.020.010.038.0180.9850
15020074209Black13.5PG98.524.012.042.0221.5850
15020074211Black15.8PG1111.027.012.044.0252.250
15020074213Black18.5PG13.512.529.012.046.0252.350
15020074216Black21.2PG1616.033.013.051.0312.8825
15020074221Black28.5PG2120.041.014.055.0395.925
15020074229Black34.5PG2927.548.014.059.0467.225
15020074236Black42.5PG3636.063.017.066.06013.010
15020074248Black54.5PG4847.574.017.068.07020.410

To download
Producer
Flexa
Product code
RQGK
Series
RQGK
Thread
M12
,
M16
,
M20
,
M25
,
M32
,
M40
,
M50
,
M63
,
PG 07
,
PG 09
,
PG 11
,
PG 13.5
,
PG 16
,
PG 21
,
PG 36
,
PG 48
,
PG 29
Material
Polyamide
,
Nickel-plated Brass
Ingress Protection
IP68
,
IP69K
Tubing outer diameter (mm)
10
,
13
,
15,8
,
21,2
,
28.5
,
34,5
,
42,5
,
54,5
,
18.5
Product width in millimeters
20
,
24
,
25
,
27
,
29
,
29.5
,
34
,
37
,
44
,
41
,
50
,
58
,
68
,
74
,
33
,
48
,
63
,
43
,
49
,
60
,
79
,
59
Product height in millimetres
38.5
,
38
,
33.5
,
40
,
35
,
42
,
42.5
,
36.5
,
43.5
,
37.5
,
48
,
44
,
49
,
54
,
47
,
56.5
,
57
,
52
,
64
,
55
,
76
,
67
,
68
,
88
,
80
,
81
Wysokość towaru w centymetrach
,
47.5
,
51
,
59
,
50
,
53
,
60
,
62
,
95
,
95,5
,
41
,
43
,
45
,
85
,
98
Temperature range
-50...+120°C
Colour
Black
