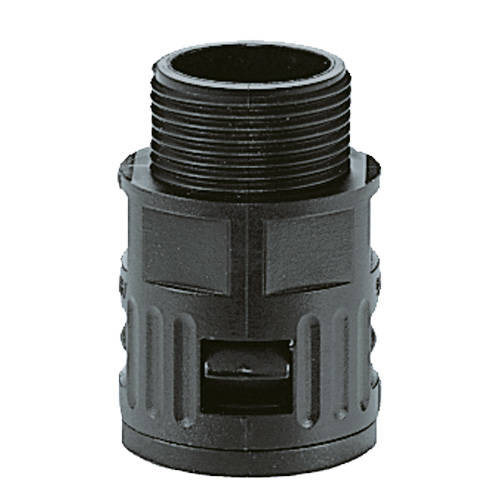

Flexa RQG - connector for corrugated tubings

RQG a connector designed for ROHRflex corrugated plastic tubings. The product is made of polyamide (PA), equipped with a quick coupler (FLEXAquick technology).

Flexa RQG - connector for corrugated tubings

Material: Polyamide

Ingress Protection: IP66, IP68, IP69K

Colour: Black, Grey

Our price:

Quantity:

Flexa RQG

RQG is a Flexa brand connector designed for conduits. Made of durable polyamide (PA), it is highly resistant to mechanical and environmental factors. The operating temperature range is from -40°C to +120°C. The degree of protection can be IP66, IP68, or IP69K, depending on the specific RQG connector series, allowing the solution to be tailored to the application's requirements in terms of dust and water resistance. The product is equipped with an integrated snap-in sleeve with a seal. The connector, based on FLEXAquick quick-connect technology, is designed for ROHRflex conduits.

Connector features

resistant against oil and benzine
widely resistant to acids and solvents
free of silicone, cadmium, halogen

Applications

machine and plant constructions
automotive
railway industry
shipbuilding
automation
electrical installations

RQG-M - IP68/IP69K, EN45545-2 and NFPA130 railway certifications, metric thread

FLEXA No.	OD [mm]	Colour	Thread type	Ø I [mm]	Ø B [mm]	C [mm]	D [mm]	WS [mm]	Weight [kg/100]	PU [pcs]
15020037210	10,0	Black	M10 x 1,0	6,0	17,0	11,5	34,5	16	0,400	50
15020065203	10,0	Black	M12 x 1,5	7,0	20,0	11,5	34,5	16	0,400	50
15020037212	13,0	Black	M12 x 1,5	7,0	20,0	12,0	37,0	18	0,520	50
15020065205	13,0	Black	M16 x 1,5	10,0	20,0	11,5	37,0	18	0,540	50
15020037216	15,8	Black	M16 x 1,5	11,0	23,0	11,5	39,0	21	0,700	50
15020065207	15,8	Black	M20 x 1,5	12,0	25,0	13,0	39,0	21	0,760	50
15020037218	18,5	Black	M20 x 1,5	13,5	26,0	13,0	42,0	24	0,800	50
15020037220	21,2	Black	M20 x 1,5	15,0	29,5	13,0	44,5	27	1,120	50
15020065209	21,2	Black	M25 x 1,5	17,0	29,5	13,0	44,5	27	1,240	50
15020037225	28,5	Black	M25 x 1,5	19,5	37,0	13,0	47,0	34	1,680	25
15020065211	28,5	Black	M32 x 1,5	23,5	37,0	15,0	49,0	34	1,800	25
15020037232	34,5	Black	M32 x 1,5	25,5	44,0	15,0	51,0	40	2,400	25
15020037238	34,5	Black	M40 x 1,5	30,5	48,5	15,0	44,5	40	2,560	25
15020037240	42,5	Black	M40 x 1,5	32,0	58,0	17,0	76,0	55	5,800	25
15020037245	42,5	Black	M50 x 1,5	37,5	63,0	17,0	76,0	60	6,720	25
15020037250	54,5	Black	M50 x 1,5	42,5	68,0	17,0	88,0	65	8,300	10
15020037263	54,5	Black	M63 x 1,5	49,0	74,0	17,0	88,0	70	10,150	10
15020037010	10,0	Grey	M10 x 1,0	6,0	17,0	11,5	34,5	16	0,400	50
15020065003	10,0	Grey	M12 x 1,5	7,0	20,0	11,5	34,5	16	0,400	50
15020037012	13,0	Grey	M12 x 1,5	7,0	20,0	12,0	37,0	18	0,520	50
15020037016	15,8	Grey	M16 x 1,5	11,0	23,0	11,5	39,0	21	0,700	50
15020065007	15,8	Grey	M20 x 1,5	12,0	25,0	13,0	39,0	21	0,760	50
15020037018	18,5	Grey	M20 x 1,5	13,5	26,0	13,0	42,0	24	0,800	50
15020037020	21,2	Grey	M20 x 1,5	15,0	29,5	13,0	44,5	27	1,120	50
15020065009	21,2	Grey	M25 x 1,5	17,0	29,5	13,0	44,5	27	1,240	50
15020037025	28,5	Grey	M25 x 1,5	19,5	37,0	13,0	47,0	34	1,680	25
15020065011	28,5	Grey	M32 x 1,5	23,5	37,0	15,0	49,0	34	1,800	25
15020037032	34,5	Grey	M32 x 1,5	25,5	44,0	15,0	51,0	40	2,400	25
15020037038	34,5	Grey	M40 x 1,5	30,5	48,5	15,0	51,5	40	2,560	25
15020037040	42,5	Grey	M40 x 1,5	32,0	58,0	17,0	76,0	55	5,800	25
15020037045	42,5	Grey	M50 x 1,5	37,5	63,0	17,0	76,0	60	6,720	25
15020037050	54,5	Grey	M50 x 1,5	42,5	68,0	17,0	88,0	65	8,300	10
15020037063	54,5	Grey	M63 x 1,5	49,0	74,0	17,0	88,0	70	10,150	10

RQG-P - IP68/IP69K, EN45545-2 and NFPA130 railway certifications, PG thread

FLEXA No.	Colour	OD [mm]	Thread	Ø I [mm]	Ø B [mm]	C [mm]	D [mm]	WS [mm]	Weight [kg/100]	PU [pcs.]
15020026207	Black	10.0	PG7	7.0	17.0	10.0	32.5	16	0.400	50
15020027202	Black	10.0	PG9	7.0	17.0	10.0	32.5	16	0.420	50
15020027203	Black	10.0	PG11	7.0	21.0	10.0	32.5	16	0.480	50
15020027205	Black	10.0	PG13,5	7.0	23.0	10.0	32.5	16	0.520	25
15020027201	Black	13.0	PG7	8.0	20.0	10.0	35.0	18	0.500	50
15020026209	Black	13.0	PG9	10.0	20.0	10.0	35.0	18	0.500	50
15020027204	Black	13.0	PG11	10.0	21.0	10.0	35.0	18	0.540	50
15020027206	Black	13.0	PG13,5	10.0	23.0	10.0	35.0	18	0.600	25
15020026211	Black	15.8	PG11	12.5	23.0	10.0	37.0	21	0.700	50
15020027207	Black	15.8	PG13,5	12.5	23.0	10.0	37.0	21	0.700	50
15020027210	Black	15.8	PG16	12.5	26.5	10.0	37.0	21	0.760	25
15020026213	Black	18.5	PG13,5	13.5	26.0	13.0	43.0	24	0.860	50
15020026214	Black	18.5	PG16	17.0	25.5	11.0	42.0	24	0.960	25
15020027209	Black	21.2	PG13,5	15.5	29.5	10.0	43.5	27	1.200	10
15020026216	Black	21.2	PG16	17.0	29.5	13.0	46.0	27	1.200	50
15020027208	Black	28.5	PG16	17.0	37.0	12.0	48.5	34	1.800	10
15020026221	Black	28.5	PG21	23.5	37.0	12.5	48.5	34	1.680	25
15020026229	Black	34.5	PG29	30.0	44.0	14.5	51.0	40	2.360	25
15020026236	Black	42.5	PG36	36.0	63.0	17.0	76.0	60	6.000	25
15020026248	Black	54.5	PG48	47.5	64.0	17.0	88.0	70	9.200	10
15020026007	Grey	10.0	PG7	7.0	17.0	10.0	32.5	16	0.400	50
15020027002	Grey	10.0	PG9	7.0	18.5	10.0	32.5	16	0.420	50
15020027003	Grey	10.0	PG11	7.0	21.0	10.0	32.5	16	0.480	50
15020027005	Grey	10.0	PG13,5	7.0	23.0	10.0	32.5	16	0.520	25
15020027001	Grey	13.0	PG7	8.0	20.0	10.0	35.0	18	0.500	50
15020026009	Grey	13.0	PG9	10.0	20.0	10.0	35.0	18	0.500	50
15020027004	Grey	13.0	PG11	10.0	21.0	10.0	35.0	18	0.540	50
15020027006	Grey	13.0	PG13,5	10.0	23.0	10.0	35.0	18	0.600	25
15020026011	Grey	15.8	PG11	12.5	23.0	10.0	37.0	21	0.700	50
15020027007	Grey	15.8	PG13,5	12.5	23.0	10.0	37.0	21	0.700	50
15020027010	Grey	15.8	PG16	12.5	26.5	10.0	37.0	21	0.760	25
15020026013	Grey	18.5	PG13,5	13.5	26.0	13.0	43.0	24	0.860	50
15020026014	Grey	18.5	PG16	17.0	25.5	11.0	42.0	24	0.960	25
15020027009	Grey	21.2	PG13,5	15.5	29.5	10.0	43.5	27	1.200	10
15020026016	Grey	21.2	PG16	17.0	29.5	13.0	46.0	27	1.200	50
15020027008	Grey	28.5	PG16	17.0	37.0	12.0	48.5	34	1.800	10
15020026021	Grey	28.5	PG21	23.5	37.0	12.5	48.5	34	1.680	25
15020026029	Grey	34.5	PG29	30.0	44.0	14.5	51.0	40	2.360	25
15020026036	Grey	42.5	PG36	36.0	53.0	17.0	76.0	60	6.000	25
15020026048	Grey	54.5	PG48	47.5	74.0	17.0	88.0	70	9.200	10

RQG-C - IP68/IP69K, EN45545-2 and NFPA130 railway certifications, CTG thread

FLEXA No.	Colour	OD [mm]	Thread Type	Ø I [mm]	Ø B [mm]	C [mm]	D [mm]	WS [mm]	Weight [kg/100]	PU [pcs.]
15020052212	Black	13,0	CTG 1/4"	9,0	20,0	10,0	35,0	18	0,520	50
15020052209	Black	13,0	CTG 3/8"	10,0	21,0	10,0	35,0	18	0,500	50
15020052201	Black	13,0	CTG G16 1/2"	13,0	27,0	14,0	36,0	21	0,640	25
15020052210	Black	15,8	CTG 3/8"	12,5	23,0	10,0	37,0	21	0,640	50
15020052202	Black	15,8	CTG G16 1/2"	12,5	27,0	14,0	39,0	24	0,780	25
15020052203	Black	21,2	CTG G 16 1/4"	16,0	29,5	13,0	44,5	27	1,140	50
15020052204	Black	28,5	CTG G 22 3/4"	21,0	37,0	16,0	48,0	34	1,740	25
15020052205	Black	34,5	CTG G 28 1"	25,5	44,0	17,0	52,0	40	2,280	25
15020052206	Black	42,5	CTG G 36 1 1/4"	32,0	52,0	18,0	59,0	60	3,800	25
15020052211	Black	54,5	CTG G 1 1/2"	42,0	59,0	16,5	55,5	70	4,500	10
15020052207	Black	54,5	CTG G 54 2"	49,0	64,0	16,5	55,5	70	4,500	10

RQG-N -IP68/IP69K, EN45545-2 and NFPA130 railway certifications, NPT thread

FLEXA No.	Colour	OD [mm]	Thread type	Ø I [mm]	Ø B [mm]	C [mm]	D [mm]	WS [mm]	Weight [kg/100]	PU [pcs.]
15020056201	Black	10,0	NPT 1/4"	7,0	17,0	9,5	34,0	16	0,420	50
15020056202	Black	13,0	NPT 1/4"	10,0	20,0	9,5	37,0	18	0,500	50
15020056203	Black	13,0	NPT 3/8"	10,0	20,0	9,5	35,0	18	0,500	50
15020056204	Black	15,8	NPT 3/8"	12,5	23,0	9,5	39,0	21	0,720	50
15020056205	Black	15,8	NPT 1/2"	12,5	25,0	10,0	39,0	24	0,720	25
15020056206	Black	21,2	NPT 1/2"	15,0	30,0	13,0	44,5	27	1,140	50
15020038221	Black	28,5	NPT 3/4"	20,7	37,0	14,0	47,5	34	1,740	25
15020056214	Black	34,5	DD 34,5, NPT 1 inch	23,0	44,0	17,0	52,0	40	2,280	25
15020038227	Black	34,5	NPT 1"	25,7	44,0	16,0	52,0	40	2,300	25
15020056207	Black	42,5	NPT 1 1/4"	34,0	52,0	18,0	59,0	60	3,800	25
15020056208	Black	42,5	NPT 1 1/2"	36,5	55,0	18,0	55,5	49	4,200	10
15020056209	Black	54,5	NPT 1 1/2"	42,0	59,0	16,5	55,5	70	4,500	10
15020056210	Black	54,5	NPT 2"	48,5	64,0	21,0	60,0	60	4,500	10

RQG1-M - IP66, DIN EN 61386-23 certified, conical seal, metric thread

FLEXA No.	Colour	OD [mm]	Thread	Ø I [mm]	Ø B [mm]	C [mm]	D [mm]	WS [mm]	Weight [kg/100]	PU [pcs.]
15020055210	Black	10,0	M10 x 1,0	6,0	17,0	11,5	34,5	16	0,4	50
15020055211	Black	10,0	M12 x 1,5	7,0	17,0	11,5	34,5	16	0,4	50
15020055212	Black	13,0	M12 x 1,5	7,0	20,0	12,0	37,0	18	0,52	50
15020055214	Black	13,0	M16 x 1,5	10,0	20,0	11,5	37,0	18	0,56	50
15020055216	Black	15,8	M16 x 1,5	11,0	23,0	11,5	39,0	21	0,7	50
15020055218	Black	15,8	M20 x 1,5	12,0	25,0	13,0	39,0	21	0,76	50
15020055219	Black	18,5	M20 x 1,5	13,5	26,0	13,0	43,0	24	0,88	50
15020055220	Black	21,2	M20 x 1,5	15,0	29,5	13,0	44,5	27	1,16	50
15020055222	Black	21,2	M25 x 1,5	17,0	29,5	13,0	44,5	27	1,24	50
15020055225	Black	28,5	M25 x 1,5	19,5	37,0	13,0	47,0	34	1,75	25
15020055228	Black	28,5	M32 x 1,5	23,0	37,0	15,0	49,0	34	1,8	25
15020055232	Black	34,5	M32 x 1,5	25,5	44,0	15,0	51,0	40	2,4	25
15020055236	Black	34,5	M40 x 1,5	30,5	48,5	15,0	51,5	40	2,56	25
15020055240	Black	42,5	M40 x 1,5	32,0	52,0	15,0	53,5	48	3,36	25
15020055245	Black	42,5	M50 x 1,5	36,5	56,0	15,5	55,0	48	3,7	10
15020055250	Black	54,5	M50 x 1,5	42,5	63,5	15,5	55,0	59	4,2	10
15020055263	Black	54,5	M63 x 1,5	48,0	70,0	16,0	55,0	59	5,25	10
15020755211	Black	10,0	M12 x 1,5	7,0	17,0	11,5	34,5	16	0,4	10
15020755214	Black	13,0	M16 x 1,5	10,0	20,0	11,5	37,0	18	0,56	10
15020755218	Black	15,8	M20 x 1,5	12,0	25,0	13,0	39,0	21	0,76	10
15020755222	Black	21,2	M25 x 1,5	17,0	29,5	13,0	44,5	27	1,24	10
15020755228	Black	28,5	M32 x 1,5	23,0	37,0	15,0	49,0	34	1,8	10
15020755236	Black	34,5	M40 x 1,5	30,5	48,5	15,0	51,5	40	2,56	2
15020755245	Black	42,5	M50 x 1,5	36,5	56,0	15,5	55,0	48	3,7	2
15020755263	Black	54,5	M63 x 1,5	48,0	70,0	16,0	55,0	59	5,25	2
15020055010	Grey	10,0	M10 x 1,0	6,0	17,0	11,5	34,5	16	0,4	50
15020055011	Grey	10,0	M12 x 1,5	7,0	17,0	11,5	34,5	16	0,4	50
15020055012	Grey	13,0	M12 x 1,5	7,0	20,0	12,0	37,0	18	0,52	50
15020055014	Grey	13,0	M16 x 1,5	10,0	20,0	11,5	37,0	18	0,56	50
15020055016	Grey	15,8	M16 x 1,5	11,0	23,0	11,5	39,0	21	0,7	50
15020055018	Grey	15,8	M20 x 1,5	12,0	25,0	13,0	39,0	21	0,76	50
15020055019	Grey	18,5	M20 x 1,5	13,5	26,0	13,0	43,0	24	0,88	50
15020055020	Grey	21,2	M20 x 1,5	16,0	29,5	13,0	44,5	27	1,16	50
15020055022	Grey	21,2	M25 x 1,5	17,0	29,5	13,0	44,5	27	1,24	50
15020055025	Grey	28,5	M25 x 1,5	19,5	37,0	13,0	47,0	34	1,68	25
15020055028	Grey	28,5	M32 x 1,5	23,0	37,0	15,0	49,0	34	1,8	25
15020055032	Grey	34,5	M32 x 1,5	25,5	44,0	15,0	51,0	40	2,4	25
15020055036	Grey	34,5	M40 x 1,5	30,5	48,5	15,0	51,5	40	2,56	25
15020055040	Grey	42,5	M40 x 1,5	32,0	52,0	15,0	53,5	48	3,36	25
15020055045	Grey	42,5	M50 x 1,5	36,5	56,0	15,5	55,0	48	3,7	10
15020055050	Grey	54,5	M50 x 1,5	42,5	63,5	15,5	55,0	59	4,1	10
15020055063	Grey	54,5	M63 x 1,5	48,0	70,0	16,0	55,0	59	5,25	10

RQG1-P - IP66, DIN EN 61386-23 certified, conical seal, PG thread

FLEXA No.	OD [mm]	Colour	Thread	Ø I [mm]	Ø B [mm]	C [mm]	D [mm]	WS [mm]	Weight [kg/100]	PU [pcs.]
15020049207	10,0	Black	PG7	7,0	17,0	10,0	32,5	16	0,42	50
15020063202	10,0	Black	PG9	7,0	18,5	10,0	32,5	16	0,42	50
15020063203	10,0	Black	PG11	7,0	21,0	10,0	32,5	16	0,48	50
15020063205	10,0	Black	PG13,5	7,0	23,0	10,0	32,5	16	0,56	25
15020062201	13,0	Black	PG7	8,0	20,0	10,0	35,0	18	0,52	50
15020049209	13,0	Black	PG9	10,0	20,0	10,0	35,0	18	0,52	50
15020063204	13,0	Black	PG11	10,0	21,0	10,0	35,0	18	0,56	50
15020063206	13,0	Black	PG13,5	10,0	23,0	10,0	35,0	18	0,6	25
15020049211	15,8	Black	PG11	12,5	23,0	10,0	37,0	21	0,7	50
15020063207	15,8	Black	PG13,5	12,5	23,0	10,0	37,0	21	0,72	25
15020063210	15,8	Black	PG16	12,5	26,5	10,0	37,0	21	0,8	25
15020049213	18,5	Black	PG13,5	13,5	26,0	13,0	43,0	24	0,88	50
15020062209	21,2	Black	PG13,5	15,4	29,5	13,0	43,5	27	1,2	10
15020049216	21,2	Black	PG16	17,0	29,5	13,0	46,0	27	1,24	50
15020062208	28,5	Black	PG16	17,0	37,0	12,0	48,5	34	1,8	10
15020049221	28,5	Black	PG21	23,5	37,0	13,0	48,5	34	1,68	25
15020049229	34,5	Black	PG29	30,0	44,0	14,5	53,5	40	2,4	25
15020049236	42,5	Black	PG36	36,5	51,5	14,5	56,0	48	3,12	25
15020049248	54,5	Black	PG48	48,0	65,5	15,5	58,0	59	4,4	10
15020049007	10,0	Grey	PG7	7,0	17,0	10,0	32,5	16	0,42	50
15020049009	13,0	Grey	PG9	10,0	20,0	10,0	35,0	18	0,52	50
15020049011	15,8	Grey	PG11	12,5	23,0	10,0	37,0	21	0,7	50
15020049013	18,5	Grey	PG13,5	13,5	26,0	13,0	43,0	24	0,88	50
15020049016	21,2	Grey	PG16	17,0	29,5	13,0	46,0	27	1,24	50
15020049021	28,5	Grey	PG21	23,5	37,0	13,0	48,5	34	1,68	25
15020049029	34,5	Grey	PG29	30,0	44,0	14,5	53,5	40	2,4	25
15020049036	42,5	Grey	PG36	36,5	51,5	14,5	56,0	48	3,12	25
15020049048	54,5	Grey	PG48	48,0	65,5	15,5	58,0	59	4,4	10

RQG1-C - IP66, DIN EN 61386-23 certified, conical seal, CTG thread

FLEXA No.	Colour	OD [mm]	Thread type	Ø I [mm]	Ø B [mm]	C [mm]	D [mm]	WS [mm]	Weight [kg/100]	PU [pcs.]
15020058208	Black	10.0	CTG 1/4"	7.0	17.0	10.0	32.5	16	0.400	50
15020058212	Black	13.0	CTG 1/4"	9.0	20.0	10.0	35.0	18	0.520	50
15020058209	Black	13.0	CTG 3/8"	10.0	21.0	10.0	35.0	18	0.500	50
15020058210	Black	13.0	CTG 6 1/2"	13.0	27.0	14.0	40.0	19	0.660	50
15020058201	Black	15.8	CTG 3/8"	12.5	23.0	10.0	37.0	21	0.600	50
15020058202	Black	15.8	CTG 6 1/2"	12.5	23.0	10.0	37.0	21	0.600	50
15020058203	Black	21.2	CTG 6 1/2"	16.0	29.5	13.0	45.5	27	1.160	50
15020058204	Black	28.5	CTG 6 22 3/4"	19.0	35.5	13.0	48.0	30	1.560	25
15020058205	Black	34.5	CTG 6 28 T	25.5	44.0	16.0	52.0	40	2.240	25
15020058206	Black	42.5	CTG 6 36 1 1/4"	32.0	58.0	16.0	59.0	49	3.000	10
15020058211	Black	54.5	CTG 6 1/2"	40.0	64.0	14.0	54.0	59	4.400	10
15020058207	Black	54.5	CTG 6 54 2"	49.0	64.0	18.0	58.0	60	4.500	10

RQG1-N - IP66, DIN EN 61386-23 certified, conical seal, NPT thread

FLEXA No.	Colour	OD [mm]	Thread type	Ø I [mm]	Ø B [mm]	C [mm]	D [mm]	WS [mm]	Weight [kg/100]	PU [pcs.]
15020046205	Black	15.8	NPT 1/2"	12.5	25.0	12.0	39.0	21	0.770	50
15020046206	Black	21.2	NPT 1/2"	17.0	29.5	12.0	43.5	27	1.000	50
15020046214	Black	28.5	NPT 3/4"	20.7	37.0	14.0	47.5	34	1.740	25
15020046210	Black	34.5	NPT 1"	25.7	44.0	14.0	52.0	40	2.200	25
15020046217	Black	42.5	NPT 1 1/4"	34.0	52.0	18.0	77.0	60	4.500	25
15020046209	Black	54.5	NPT 1 1/2"	39.5	64.0	18.0	89.0	70	4.650	10

RQG2-M - IP68/IP69K, EN45545-2 and NFPA130 railway certifications, metric internal thread

FLEXA No.	OD [mm]	Colour	Thread type	Ø I [mm]	Ø B [mm]	Ø B1 [mm]	C [mm]	D [mm]	WS [mm]	Weight [kg/100]	PU [pcs.]
15020078201	10.0	Black	M12 x 1.5	7.5	17.0	17.0	9.5	36.5	16	0.450	50
15020078215	13.0	Black	M12 x 1.5	7.5	17.0	20.0	9.5	36.5	16	0.480	50
15020078214	13.0	Black	M16 x 1.5	10.0	20.0	21.0	9.5	36.5	18	0.500	50
15020078216	15.8	Black	M20 x 1.5	12.5	23.0	24.0	10.0	36.5	21	0.700	50
15020078220	21.2	Black	M20 x 1.5	16.5	29.5	24.0	12.5	45.0	27	1.260	50
15020078221	28.5	Black	M25 x 1.5	19.5	35.0	31.0	14.0	50.0	30	1.800	25
15020078222	34.5	Black	M32 x 1.5	24.0	44.0	35.0	15.0	55.0	40	2.200	25
15020078224	42.5	Black	M40 x 1.5	33.0	58.0	44.5	20.0	85.0	55	2.800	10
15020078240	54.5	Black	M63 x 1.5	48.5	64.0	54.5	25.0	90.0	70	4.800	10
15020078001	10.0	Grey	M12 x 1.5	7.5	17.0	17.0	9.5	36.5	16	0.450	50
15020078015	13.0	Grey	M12 x 1.5	7.5	17.0	20.0	9.5	36.5	16	0.480	50
15020078014	13.0	Grey	M16 x 1.5	10.0	20.0	21.0	9.5	36.5	18	0.500	50
15020078016	15.8	Grey	M20 x 1.5	12.5	23.0	24.0	10.0	36.5	21	0.700	50
15020078020	21.2	Grey	M20 x 1.5	16.5	29.5	24.0	12.5	45.0	27	1.260	50
15020078021	28.5	Grey	M25 x 1.5	19.5	35.0	31.0	14.0	50.0	30	1.800	25
15020078022	34.5	Grey	M32 x 1.5	24.0	44.0	35.0	15.0	55.0	40	2.200	25
15020078024	42.5	Grey	M40 x 1.5	33.0	58.0	44.5	20.0	85.0	55	2.800	10

RQG2-P - IP68/IP69K, EN45545-2 and NFPA130 railway certifications, PG internal thread

FLEXA No.	OD [mm]	Colour	Thread type	Ø I [mm]	Ø B [mm]	Ø B1 [mm]	C [mm]	D [mm]	WS [mm]	Weight [kg/100]	PU [pcs.]
15020081209	13.0	Black	PG9	10.0	20.5	21.0	11.5	33.5	18	0.680	50
15020081211	15.8	Black	PG11	12.5	23.0	23.0	15.0	39.5	21	1.000	50
15020081216	21.2	Black	PG16	17.0	29.5	27.5	16.0	45.0	27	1.380	50
15020081221	28.5	Black	PG21	23.5	37.0	33.5	22.0	49.0	34	2.040	25
15020081228	34.5	Black	PG29	30.5	44.0	41.0	18.0	52.0	40	2.600	10
15020081236	42.5	Black	PG36	36.5	58.0	52.0	20.0	91.0	55	6.800	10
15020081248	54.5	Black	PG48	45.0	68.0	64.0	16.0	90.0	65	9.200	10

RQG2-N - IP68/IP69K, EN45545-2 and NFPA130 railway certifications, NPT internal thread

FLEXA No.	Colour	OD [mm]	Thread type	Ø I [mm]	Ø B [mm]	Ø B1 [mm]	C [mm]	D [mm]	E [mm]	WS [mm]	Weight [kg/100]	PU [pcs.]
15020080208	Black	21.2	1/2 inch	17.8	29.5	23.0	12.0	52.5	29.5	27	1.560	50
15020080214	Black	28.5	3/4 inch	23.5	37.0	44.0	14.0	54.0	37.0	34	2.440	25
15020080218	Black	34.5	1 inch	34.5	44.0	30.0	16.0	56.0	44.0	39	3.000	10
15020080217	Black	42.5	1 1/4 inch	30.0	52.0	48.5	18.0	58.5	52.0	49	3.200	10
15020080209	Black	54.5	1 1/2 inch	37.5	64.0	54.5	18.0	65.5	64.0	60	4.500	10

RQG2-U - IP68/IP69K, EN45545-2 and NFPA130 railway certifications, UNEF internal thread

FLEXA No.	Colour	OD [mm]	Thread type	Ø I [mm]	Ø B [mm]	Ø B1 [mm]	C [mm]	D [mm]	WS [mm]	Weight [kg/100]	PU [pcs.]
15020047202	Black	13,0	UNEF 1/2" -28	10,0	20,0	17,0	8,0	36,6	18	0,500	50
15020047203	Black	13,0	UNEF 5/8" -24	10,0	20,0	20,6	8,0	36,6	18	0,600	50
15020047205	Black	13,0	UNEF 3/4" -20	10,0	23,0	23,0	9,5	38,5	18	0,700	50
15020047204	Black	15,8	UNEF 5/8" -24	12,5	23,5	23,6	9,5	40,0	21	0,760	50
15020047232	Black	15,8	UNEF 11/16" -24	12,5	23,6	23,6	9,5	46,0	21	0,800	50
15020047206	Black	15,8	UNEF 3/4" -20	12,5	23,6	23,6	9,5	41,7	21	0,940	50
15020047225	Black	15,8	UNEF 15/16" -20	12,5	30,0	30,0	9,5	45,5	21	1,300	50
15020047210	Black	15,8	UNEF 1" -20	12,5	30,0	30,0	9,5	45,5	21	1,100	50
15020047239	Black	21,2	UNEF 9/16" -20	12,5	29,5	20,0	8,0	44,6	27	1,100	50
15020047207	Black	21,2	UNEF 5/8" -24	12,5	30,1	30,1	9,5	45,0	27	1,100	50
15020047227	Black	21,2	UNEF 3/4" -20	12,5	30,0	30,0	9,5	51,5	27	1,400	50
15020047208	Black	21,2	UNEF 7/8" -20	17,0	29,5	29,5	9,5	50,5	27	1,540	50
15020047209	Black	21,2	UNEF 5/16" -20	17,0	21,2	30,0	9,5	50,3	27	1,780	50
15020047211	Black	21,2	UNEF 1" -20	17,0	30,1	30,1	9,5	50,3	27	1,720	50
15020047230	Black	21,2	UNEF 1 1/8" -20	17,0	33,5	33,5	9,5	52,5	27	1,700	50
15020047212	Black	21,2	UNEF 1 3/16" -18	17,0	34,6	34,6	9,5	52,3	27	1,980	50
15020047222	Black	21,2	UNEF 1 3/8" -18	17,0	41,0	41,0	9,5	52,5	27	2,200	50
15020047215	Black	21,2	UNEF 1 7/16" -18	17,0	41,0	41,0	9,5	52,5	27	1,900	50
15020047219	Black	21,2	UNEF 1 3/4" -18	17,0	49,0	49,0	9,5	52,5	27	2,560	50
15020047223	Black	28,5	UNEF 15/16" -20	17,0	37,0	37,0	9,5	52,5	34	2,250	25
15020047214	Black	28,5	UNEF 1" -20	23,5	37,0	37,0	9,5	54,0	34	2,200	25
15020047213	Black	28,5	UNEF 1 3/16" -18	23,5	37,0	37,0	9,5	52,5	34	2,240	25
15020047216	Black	28,5	UNEF 1 3/8" -18	23,5	41,0	41,0	9,5	54,0	34	2,680	25
15020047217	Black	28,5	UNEF 1 7/16" -18	23,5	41,0	41,0	9,5	54,0	34	2,480	25
15020047236	Black	28,5	UNEF 1 3/4" -18	23,5	49,0	49,0	9,5	54,0	34	3,000	25
15020047233	Black	34,5	UNEF 1" -20	23,5	44,0	43,5	9,5	56,0	40	2,300	10
15020047234	Black	34,5	UNEF 1 3/16" -18	17,0	44,0	43,5	9,5	56,0	40	3,000	10
15020047224	Black	34,5	UNEF 1 3/8" -18	23,5	52,0	52,0	9,5	56,0	40	3,200	10
15020047218	Black	34,5	UNEF 1 7/16" -18	30,5	44,0	44,0	9,5	55,0	40	2,800	10
15020047249	Black	34,5	UNEF 5/8" -18	30,5	44,0	46,0	9,5	56,0	40	2,200	10
15020047220	Black	34,5	UNEF 1 3/4" -18	30,5	49,0	49,0	9,5	56,0	40	2,900	10
15020047221	Black	34,5	UNEF 2" -18	30,5	55,0	55,0	9,5	56,0	40	3,200	10
15020047231	Black	42,5	UNEF 1 3/16" -18	23,0	52,0	52,0	9,5	56,0	48	4,100	10
15020047228	Black	42,5	UNEF 1 7/16" -18	30,5	52,0	52,0	9,5	57,0	48	3,100	10
15020047229	Black	42,5	UNEF 1 3/4" -18	30,5	52,0	52,0	9,5	58,5	48	4,200	10
15020047238	Black	42,5	UNEF 2" -18	30,5	54,5	54,5	9,5	60,0	48	4,300	10
15020047237	Black	42,5	UNEF 2 1/4" -16	30,5	66,5	66,5	18,0	70,0	48	5,500	10
15020047235	Black	54,5	UNEF 2 1/4" -16	49,5	64,0	66,5	18,0	70,0	60	6,100	10

RQG3-M - IP66, DIN EN 61386-23 certified, conical seal, metric internal thread

FLEXA No.	OD [mm]	Colour	Thread type	Ø I [mm]	Ø B [mm]	Ø B1 [mm]	C [mm]	D [mm]	WS [mm]	Weight [kg/100]	PU [pcs.]
15020079215	13.0	Black	M12 x 1.5	10.0	20.0	23.0	9.5	34.5	18	0.580	50
15020079214	13.0	Black	M16 x 1.5	10.0	20.0	21.0	9.5	36.5	18	0.660	50
15020079216	15.8	Black	M16 x 1.5	12.5	23.0	21.0	9.5	39.0	21	0.780	50
15020079220	21.2	Black	M20 x 1.5	16.5	29.5	24.0	12.5	45.0	27	1.280	50
15020079225	28.5	Black	M25 x 1.5	17.0	35.0	30.0	14.0	51.0	34	2.120	25
15020079232	34.5	Black	M32 x 1.5	24.0	44.0	35.0	15.0	55.5	40	2.680	10
15020079240	42.5	Black	M40 x 1.5	33.0	52.0	44.5	20.0	63.0	50	3.400	10

RQG3-U - IP66, DIN EN 61386-23 certified, conical seal, UNEF internal thread

FLEXA No.	Colour	OD [mm]	Thread type	Ø I [mm]	Ø B [mm]	Ø B1 [mm]	C [mm]	D [mm]	WS [mm]	Weight [kg/100]	PU [pcs.]
15020054202	Black	13.0	UNEF 1/2''–28	10.0	17.0	17.0	9.5	36.6	18	0.580	50
15020054203	Black	13.0	UNEF 5/8''–24	10.0	20.6	20.6	9.5	40.0	18	0.640	50
15020054205	Black	13.0	UNEF 3/4''–20	10.0	23.5	23.5	9.5	43.5	18	0.840	50
15020054204	Black	15.8	UNEF 5/8''–24	12.5	23.6	23.6	9.5	40.0	21	0.810	50
15020054322	Black	15.8	UNEF 3/4''–20	12.5	23.6	23.6	9.5	43.7	21	0.940	50
15020054206	Black	15.8	UNEF 7/8''–20	12.5	30.0	30.0	9.5	48.0	21	1.030	50
15020054207	Black	21.2	UNEF 1''–20	12.5	30.0	30.0	9.5	48.0	27	1.060	50
15020054339	Black	21.2	UNEF 9/16''–18	17.0	29.5	29.5	9.5	45.0	27	1.380	50
15020054208	Black	21.2	UNEF 5/8''–24	17.0	30.0	30.0	9.5	45.0	27	1.400	50
15020054227	Black	21.2	UNEF 3/4''–20	17.0	33.5	33.5	9.5	48.0	27	1.620	50
15020054209	Black	21.2	UNEF 15/16''–20	17.0	41.0	41.0	9.5	50.0	27	2.000	25
15020054241	Black	21.2	UNEF 1''–20	17.0	41.0	41.0	9.5	50.0	27	2.000	25
15020054226	Black	21.2	UNEF 1 1/8''–18	17.0	41.0	41.0	9.5	50.0	27	2.000	25
15020054225	Black	21.2	UNEF 1 3/16''–18	18.0	41.0	41.0	9.5	50.0	27	2.000	25
15020054222	Black	21.2	UNEF 1 3/8''–18	18.0	41.0	41.0	9.5	50.0	27	2.000	25
15020054215	Black	21.2	UNEF 1 5/8''–16	23.5	41.0	41.0	9.5	50.0	34	2.160	25
15020054219	Black	21.2	UNEF 1 3/4''–18	23.5	41.0	41.0	9.5	50.0	34	2.200	25
15020054223	Black	21.2	UNEF 1 7/8''–18	23.5	41.0	41.0	9.5	50.0	34	2.240	25
15020054214	Black	28.5	UNEF 1''–20	23.5	37.0	37.0	9.5	54.0	34	2.580	25
15020054213	Black	28.5	UNEF 1 3/16''–18	23.5	37.0	37.0	9.5	52.5	34	2.160	25
15020054216	Black	28.5	UNEF 1 3/8''–18	23.5	41.0	41.0	9.5	54.0	34	2.680	25
15020054217	Black	28.5	UNEF 1 7/16''–18	23.5	41.0	41.0	9.5	54.0	34	2.680	25
15020054236	Black	28.5	UNEF 3/4''–18	23.5	41.0	41.0	9.5	54.0	34	2.300	25
15020054233	Black	34.5	UNEF 1 3/8''–18	17.0	43.5	43.5	9.5	54.0	40	2.300	10
15020054234	Black	34.5	UNEF 1 1/2''–18	30.5	44.0	44.0	9.5	55.0	40	2.800	10
15020054205	Black	34.5	UNEF 1 7/16''–18	30.5	44.0	44.0	9.5	55.0	40	2.800	10
15020054220	Black	34.5	UNEF 1 7/8''–16	30.5	52.0	52.0	9.5	56.0	40	3.750	10
15020054221	Black	34.5	UNEF 2''–16	30.5	52.0	52.0	9.5	56.0	40	3.750	10
15020054218	Black	42.5	UNEF 1 3/8''–18	30.5	52.0	52.0	9.5	56.0	40	4.000	10
15020054228	Black	42.5	UNEF 1 7/16''–18	30.5	52.0	52.0	9.5	56.0	40	4.000	10
15020054235	Black	42.5	UNEF 1 1/2''–18	30.5	52.0	52.0	9.5	56.0	40	4.000	10
15020054229	Black	42.5	UNEF 2''–16	30.5	64.5	64.5	9.5	70.0	55	4.800	10
15020054230	Black	42.5	UNEF 2 1/8''–16	30.5	64.5	64.5	9.5	70.0	55	4.800	10
15020054231	Black	54.5	UNEF 2 1/4''–16	49.5	66.5	66.5	18.0	70.0	60	5.000	10
15020054232	Black	54.5	UNEF 2 1/4''–16	49.5	66.5	66.5	18.0	70.0	60	5.000	10
15020054237	Black	54.5	UNEF 2 1/4''–16	49.5	66.5	66.5	18.0	70.0	60	5.000	10
15020054243	Black	54.5	UNEF 2 1/4''–16	49.5	66.5	66.5	18.0	70.0	60	5.000	10

To download

Catalogue sheet - RQG

Producer

Flexa

Product code

RQG

Series

RQG

Thread

M10

M12

M16

M20

M25

M32

M40

M50

M63

PG 07

PG 09

PG 11

PG 13.5

PG 16

PG 21

PG 29

PG 36

PG 48

CTG 1/4"

CTG 3/8"

CTG G 16 1/2"

CTG G 22 3/4"

CTG G 28 1"

CTG G 36 1 1/4"

CTG 1 1/2"

CTG G 54 2"

NPT 1/2"

NPT 1/4"

NPT 3/4"

NPT 3/8"

NPT 1"

NPT 1 1/4"

NPT 1 1/2"

NPT 2"

Compatible with

PA6

PA6-D

PA6-S

PA 6-L

PA6-LL

PA6-LG

PA6-UL-SD

PA6-HT

PA12

PA12-D

PA12-S

PA12-SD

PA12-F

PA12-FD

PA12-ESD

PA 6-CU

FLEXAquick

Material

Polyamide

Ingress Protection

IP66

IP68

IP69K

Tubing outer diameter (mm)

15.8 mm

18.5

21.2 mm

28,5 mm

34.5 mm

42.5 mm

54.5 mm

Product width in millimeters

29.5

48.5

63,5

Product height in millimetres

34.5

44.5

51.5

53.5

86,5

Temperature range

-40...+120°C

Colour

Black

Grey

Write your opinion

Ask about the product

Net sum:	0,00 €
Gross sum:	0,00 €
