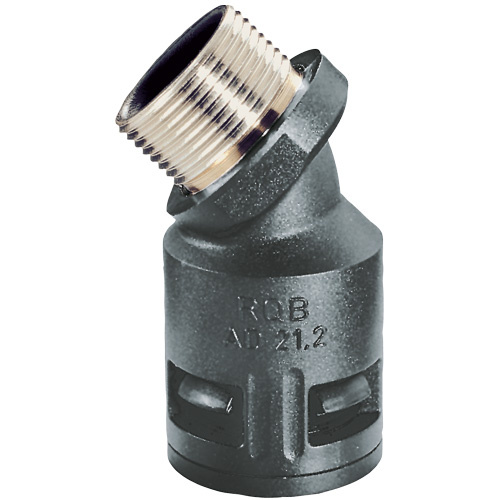

Flexa RQBK45 - connector for corrugated tubings

  • RQBK45 a angled connector designed for ROHRflex corrugated plastic tubings. The product is made of polyamide (PA) and nickel-platted brass, equipped with a quick coupler (FLEXAquick bend technology).
Flexa RQBK45 - connector for corrugated tubings
Material: Polyamide , Nickel-plated Brass
Ingress Protection: IP68, IP69K
Colour: Black
Ask about the product

Flexa RQBK45

The Flexa RQBK45 is a one-piece, plastic 45° angled connector with a snap-on sleeve and seal, designed for use with FLEXAquick® bend conduit systems. It offers a high level of protection with IP68 and IP69K ratings. The connector body is made of PA polyamide, providing excellent resistance to oils, fuels, many acids, and solvents. The thread is made of nickel-plated brass, and includes both an O-ring seal (OR) and a flat seal (FRH). The operating temperature range is from –50°C to +120°C.



Connector features

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • high torque of thread connection

Applications

  • machine and plant constructions
  • automotive
  • railway industry
  • shipbuilding
  • automation
  • electrical installations

RQBK45-M - IP68/IP69K, 45° bend, railway certifications EN 45545-2 and NFPA130, outer nickel-plated metric thread

FLEXA No. Colour OD
[mm]		 Thread type Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 E
[mm]		 F
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
15102010212Black10,0M12 x 1,56,518,010,039,045,0181,14050
15102013216Black13,0M16 x 1,58,522,012,042,548,0211,76050
15102015220Black15,8M20 x 1,510,025,512,044,552,5241,70050
15102021220Black21,2M20 x 1,513,029,512,055,060,0262,54050
15102021225Black21,2M25 x 1,514,529,513,056,060,0263,80050
15102028225Black28,5M25 x 1,517,037,013,064,072,0324,00025
15102028232Black28,5M32 x 1,520,038,014,064,075,0375,64025
15102034232Black34,5M32 x 1,523,044,014,073,576,0396,70010
15102034240Black34,5M40 x 1,529,047,014,073,577,0469,00010
15102042240Black42,5M40 x 1,531,556,517,082,586,0488,70010
15102042250Black42,5M50 x 1,536,061,517,082,586,05916,50010
15102054250Black54,5M50 x 1,535,564,017,092,095,05917,4005
15102054263Black54,5M63 x 1,545,571,517,097,0100,06922,5005


RQBK45-P - IP68/IP69K, 45° bend, railway certifications EN 45545-2 and NFPA130, outer nickel-plated PG thread

FLEXA No. Colour OD
[mm]		 Thread type Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 E
[mm]		 F
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
15020087209Black13,0PG98,522,012,042,548,0211,70050
15020087211Black15,8PG1110,025,512,044,552,5242,30050
15020087213Black18,5PG13,512,528,012,049,059,0272,62050
15020087216Black21,2PG1614,529,513,056,060,0262,86050
15020087221Black28,5PG2120,038,014,064,075,0365,36025
15020087229Black34,5PG2929,047,014,073,577,0457,70010
15020087236Black42,5PG3636,061,517,082,586,05812,30010
15020087248Black54,5PG4845,571,517,097,0100,07018,5005
To download
Producer
Flexa
Product code
RQBK45
Series
RQBK45
Thread
M12
,
M16
,
M20
,
M25
,
M32
,
M40
,
M50
,
M63
,
PG 09
,
PG 11
,
PG 13.5
,
PG 16
,
PG 21
,
PG 29
,
PG 36
,
PG 48
Material
Polyamide
,
Nickel-plated Brass
Ingress Protection
IP68
,
IP69K
Tubing outer diameter (mm)
10
,
13
,
15,8
,
21,2
,
28.5
,
34,5
,
42,5
,
54,5
Product width in millimeters
18
,
28
,
22
,
25.5
,
29.5
,
37
,
38
,
44
,
47
,
56.5
,
61,5
,
64
,
71,5
Product height in millimetres
39
,
42.5
,
44.5
,
55
,
56
,
64
,
73.5
,
82,5
,
92
,
97
,
49
Temperature range
-50...+120°C
Colour
Black
