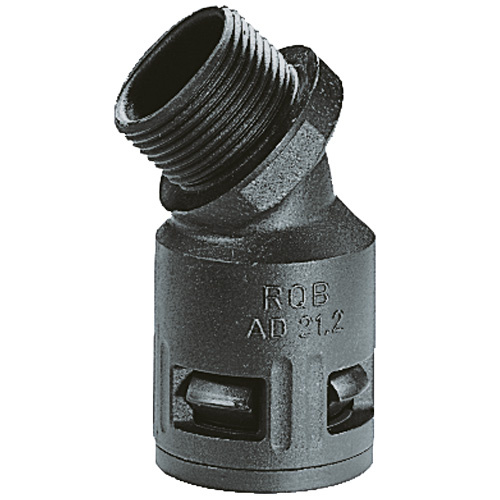

Flexa RQB45 - connector for corrugated tubings

  • RQB45 a connector designed for ROHRflex corrugated plastic tubings. The product is made of polyamide (PA), equipped with a quick coupler (FLEXAquick bend technology).
Flexa RQB45 - connector for corrugated tubings
Material: Polyamide
Ingress Protection: IP66, IP68, IP69K
Colour: Black, Grey
Ask about the product

Flexa RQB45

The Flexa RQB45 is a one-piece, plastic 45° angled connector with a snap-on sleeve and seal, designed for use with FLEXAquick® bend conduit systems. It offers a high degree of protection with IP66, IP68, and IP69K ratings. The connector is made of PA6 polyamide, which provides excellent resistance to oils, fuels, many acids, and solvents. Thanks to its UL 94 V0 flammability rating, the product is flame-retardant and meets the requirements of many industrial applications. The operating temperature range is –40°C to +120°C.



Connector features

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • machine and plant constructions
  • automotive
  • automation
  • electrical installations

RQB45-M - IP68/IP69K, 45° bend, railway certifications EN 45545-2 and NFPA130, metric outer thread

FLEXA No. Colour OD
[mm]		 Thread type Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 E
[mm]		 F
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
15100010212Black10,0M12 x 1,56,518,010,039,045,0180,60050
15100013216Black13,0M16 x 1,58,522,012,042,548,0210,90050
15100015220Black15,8M20 x 1,510,025,512,044,552,5241,30050
15100021220Black21,2M20 x 1,513,029,512,055,060,0261,80050
15100021225Black21,2M25 x 1,514,529,513,056,060,0262,00050
15100028225Black28,5M25 x 1,517,037,013,064,072,0322,70025
15100028232Black28,5M32 x 1,520,038,014,064,075,0363,80025
15100034232Black34,5M32 x 1,523,044,014,073,576,0393,80010
15100034240Black34,5M40 x 1,529,047,014,073,577,0454,10010
15100042240Black42,5M40 x 1,531,556,517,082,586,0485,50010
15100042250Black42,5M50 x 1,536,061,517,082,586,0586,50010
15100054250Black54,5M50 x 1,535,564,017,092,095,0589,5005
15100054263Black54,5M63 x 1,545,571,517,097,0100,0699,5005
15100015020Grey15,8M20 x 1,510,025,512,044,552,5241,30050
15100021020Grey21,2M20 x 1,513,029,512,055,060,0261,80050
15100021025Grey21,2M25 x 1,514,529,513,056,060,0262,00050
15100028032Grey28,5M32 x 1,520,038,014,064,075,0362,80025
15100034040Grey34,5M40 x 1,529,047,014,073,577,0454,10010
15100042050Grey42,5M50 x 1,536,061,517,082,586,0586,50010
15100054063Grey54,5M63 x 1,545,571,517,097,0100,0698,5005


RQB45-P - IP68/IP69K, 45° bend, railway certifications EN 45545-2 and NFPA130, PG outer thread

FLEXA No. Colour OD
[mm]		 Thread type Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 E
[mm]		 F
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
15020089209Black13,0PG98,520,012,041,048,0210,80050
15020089211Black15,8PG1110,020,012,043,051,0241,20050
15020089216Black21,2PG1614,529,513,054,056,0262,00050
15020089221Black28,5PG2120,037,014,063,069,0362,90025
15020089229Black34,5PG2929,044,014,070,573,5454,10010
15020089236Black42,5PG3636,052,017,081,082,5586,00010
15020089248Black54,5PG4845,064,017,095,097,0698,5005


RQB45-N - IP68/IP69K, 45° bend, railway certifications EN 45545-2 and NFPA130, NPT outer thread

FLEXA No. Colour OD
[mm]		 thread size NPT Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 E
[mm]		 F
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
15020017205Black15,81/2 inch10,023,012,041,048,0231,20050
15020017206Black21,21/2 inch13,029,512,052,055,0261,70050
15020017214Black28,53/4 inch17,037,013,068,068,0312,60025
15020017216Black34,51 inch23,044,014,068,073,5393,80010
15020017215Black34,51 1/4 inch29,044,014,073,073,5454,50010
15020017208Black42,51 1/2 inch30,052,017,082,081,0586,30010
15020017217Black52,01 1/4 inch30,552,017,076,080,0479,30010
15020017209Black54,51 1/2 inch35,064,017,089,094,5588,7005
15020017210Black64,02 inch45,064,017,095,595,0699,0005


RQB1 45 M - IP66, 45° bend, conically sealed, metric outer thread

FLEXA No. Colour OD
[mm]		 Thread type Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 E
[mm]		 F
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
15101010212Black10,0M12 x 1,56,517,010,039,045,0180,80050
15101013216Black13,0M16 x 1,58,520,012,042,548,0210,90050
15101015220Black15,8M20 x 1,510,023,012,044,552,5261,10050
15101021220Black21,2M20 x 1,513,029,512,055,060,0261,80050
15101021225Black21,2M25 x 1,514,529,513,056,060,0262,00050
15101028225Black28,5M25 x 1,517,037,013,064,072,0322,70025
15101028232Black28,5M32 x 1,520,037,014,064,075,0363,80025
15101034232Black34,5M32 x 1,523,044,014,073,579,0393,80010
15101034240Black34,5M40 x 1,529,044,014,073,577,0454,10010
15101042240Black42,5M40 x 1,531,552,017,082,586,0485,30010
15101042250Black42,5M50 x 1,536,052,017,082,586,0586,50010
15101054250Black54,5M50 x 1,535,564,017,092,095,0589,2005
15101054263Black54,5M63 x 1,545,564,017,097,0100,0699,4005
15101013016Grey13,0M16 x 1,58,520,012,042,548,0210,90050
15101015020Grey15,8M20 x 1,510,023,012,044,552,5261,10050
15101021020Grey21,2M20 x 1,513,029,512,055,060,0261,80050
15101021025Grey21,2M25 x 1,514,529,513,056,060,0262,00050
15101028025Grey28,5M25 x 1,517,037,013,064,072,0322,70025
15101028032Grey28,5M32 x 1,520,037,014,064,075,0363,60025
15101034032Grey34,5M32 x 1,523,044,014,073,576,0393,80010
15101034040Grey34,5M40 x 1,529,044,014,073,577,0454,10010
15101042040Grey42,5M40 x 1,531,552,017,082,586,0485,30010
15101042050Grey42,5M50 x 1,536,052,017,082,586,0586,50010
15101054050Grey54,5M50 x 1,535,564,017,092,095,0589,2005
15101054063Grey54,5M63 x 1,545,564,017,097,0100,0699,4005


RQB1 45-N - IP66, 45° bend, conically sealed, NPT outer thread

FLEXA No. Colour OD
[mm]		 thread size NPT Ø I
[mm]		 Ø B
[mm]		 C
[mm]		 E
[mm]		 F
[mm]		 WS
[mm]		 Weight
[kg|100]		 PU
[pcs.]
15701015205Black15,81/2 inch10,023,012,044,552,5241,20050
15701021205Black21,21/2 inch14,529,512,055,060,0261,90050
15701028214Black28,53/4 inch20,037,013,067,070,0322,70025
15701034210Black34,51 inch30,044,014,073,575,0393,80010
15701042217Black42,51 1/4 inch39,052,017,082,5100,0485,40010
15701054209Black54,51 1/2 inch37,564,017,097,0100,0598,9005
To download
Producer
Flexa
Product code
RQB45
Series
RQB45
Thread
M12
,
M16
,
M20
,
M25
,
M32
,
M40
,
M50
,
M63
,
PG 09
,
PG 11
,
PG 16
,
PG 21
,
PG 29
,
PG 36
,
PG 48
,
NPT 1/2"
,
NPT 3/4"
,
NPT 1"
,
NPT 1 1/4"
,
NPT 1 1/2"
,
NPT 2"
Material
Polyamide
Ingress Protection
IP66
,
IP68
,
IP69K
Tubing outer diameter (mm)
21,2
,
10
,
13
,
15,8
,
28.5
,
34,5
,
42,5
,
54,5
,
64
Product width in millimeters
37
,
18
,
22
,
25.5
,
29.5
,
38
,
44
,
47
,
56.5
,
61,5
,
64
,
71,5
,
20
,
52
,
23
,
17
Product height in millimetres
39
,
42.5
,
44.5
,
55
,
56
,
64
,
73.5
,
82,5
,
92
,
97
,
41
,
43
,
54
,
63
,
70.5
,
81
Wysokość towaru w centymetrach
,
95
,
52
,
68
,
73
,
82
,
76
,
89
,
95,5
,
67
Temperature range
-40...+120°C
Colour
Black
,
Grey
