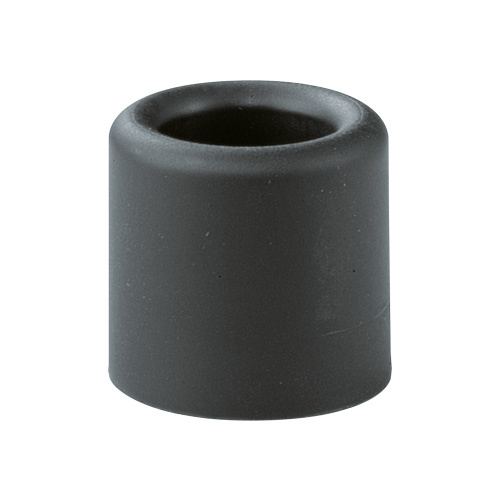

Flexa RQA - Terminal sleeve
- RQA is an end sleeve for cable protection that can be installed on all ROHRflex conduits. The product is made of polyamide (PA).
Flexa RQA
RQA is a terminal sleeve for cable protection that can be installed on all ROHRflex conduits. The product is made of polyamide (PA). Temperature range: -40°C to +120°C.
Connector features
- Resistance to fuels, mineral oils, fats, alkalis, glycols, acids, bases, common solvents
Applications
- machine and plant constructions
- automotive
- railway industry
- shipbuilding
- automation
- electrical installations
RQA - Terminal sleeve, PA material, temperature range -40°C ... +120°C
| FLEXA No. | Colour | OD [mm] |
Ø I [mm] |
Ø B [mm] |
D [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|
| 15030021207 | black | 10,0 | 4,3 | 12,0 | 20,0 | 0,104 | 50 |
| 15030021209 | black | 13,0 | 7,8 | 15,0 | 20,0 | 0,140 | 50 |
| 15030021211 | black | 15,8 | 10,3 | 18,5 | 20,0 | 0,160 | 50 |
| 15030021213 | black | 18,5 | 12,1 | 20,5 | 21,0 | 0,240 | 50 |
| 15030021216 | black | 21,2 | 14,3 | 24,0 | 21,0 | 0,220 | 50 |
| 15030021221 | black | 28,5 | 20,8 | 31,0 | 22,0 | 0,320 | 25 |
| 15030021229 | black | 34,5 | 26,8 | 36,8 | 22,0 | 0,400 | 25 |
| 15030021236 | black | 42,5 | 33,8 | 44,5 | 25,0 | 0,640 | 25 |
| 15030021248 | black | 54,5 | 45,8 | 56,5 | 25,0 | 0,800 | 10 |
| 15030021007 | grey | 10,0 | 4,3 | 12,0 | 20,0 | 0,104 | 50 |
| 15030021009 | grey | 13,0 | 7,8 | 15,0 | 20,0 | 0,140 | 50 |
| 15030021011 | grey | 15,8 | 10,3 | 18,5 | 20,0 | 0,160 | 50 |
| 15030021013 | grey | 18,5 | 12,1 | 20,5 | 21,0 | 0,240 | 50 |
| 15030021016 | grey | 21,2 | 14,3 | 24,0 | 21,0 | 0,220 | 50 |
| 15030021021 | grey | 28,5 | 20,8 | 31,0 | 22,0 | 0,320 | 25 |
| 15030021029 | grey | 34,5 | 26,8 | 36,8 | 22,0 | 0,400 | 25 |
| 15030021036 | grey | 42,5 | 33,8 | 44,5 | 25,0 | 0,640 | 25 |
| 15030021048 | grey | 54,5 | 45,8 | 56,5 | 25,0 | 0,800 | 10 |
To download
Producer
Product code
RQA
Series
Thread
/
Material
Polyamide
Ingress Protection
/
Tubing outer diameter (mm)
10
, 13
, 15,8
, 18.5
, 21,2
, 28.5
, 34,5
, 42,5
, 54,5
Product width in millimeters
12
, 15
, 18,5
, 20,5
, 24
, 31
, 36,8
, 44.5
, 56.5
Product height in millimetres
20
, 21
, 22
, 25
Temperature range
-40...+120°C
Colour
Black
, Grey
