Flexa ROHRflex PP - protective conduit
- ROHRflex PP is Flexa's protective all-plastic tubing. Available in black with fine profile.

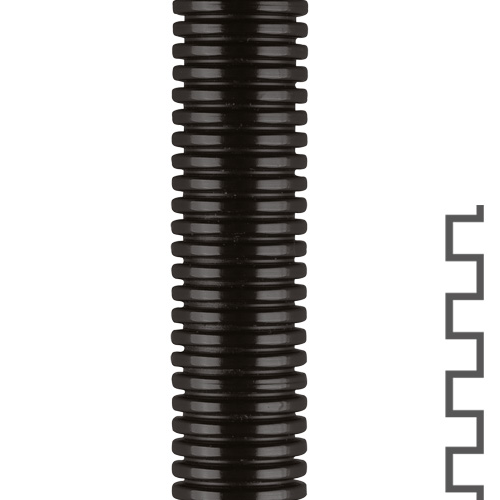

Flexa ROHRflex PP
Protective all-plastic tubing from ROHRflex PP series developed by Flexa. Available in black with fine profile.
Tubing features:
- air- and liquid-tight
- resistant against hydrous solutions, acids and alkalis
- widely resistant to solvents
- free of silicone, cadmium, halogen
- ozon resistant
- outstanding UV-resistance in accordance with ASTM G155, Cycle 1
- flame retardant
Applications:
- Automation
- Plant construction
- Shipbuilding
- Electrical installations
- Automotive
- Machinery and equipment
| FLEXA No. | Colour | OD [mm] |
Profile | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|---|
| 10231002006 | Black | 10,0 | fine | 6,9 | 9,9 | 15 | 45 | 0,010 | 50 |
| 10231002010 | Black | 13,0 | fine | 9,8 | 12,9 | 20 | 60 | 0,020 | 50 |
| 10231002012 | Black | 15,8 | fine | 12,2 | 15,7 | 25 | 75 | 0,035 | 50 |
| 10231002014 | Black | 18,5 | fine | 14,3 | 18,2 | 35 | 105 | 0,040 | 50 |
| 10231002016 | Black | 21,2 | fine | 16,6 | 21,2 | 40 | 120 | 0,050 | 50 |
| 10231002023 | Black | 28,5 | fine | 23,0 | 28,4 | 45 | 135 | 0,090 | 50 |
| 10231002029 | Black | 34,5 | fine | 28,9 | 34,3 | 55 | 165 | 0,110 | 25 |
| 10231002036 | Black | 42,5 | fine | 36,0 | 42,5 | 65 | 195 | 0,160 | 25 |
| 10231002048 | Black | 54,5 | fine | 48,0 | 54,5 | 80 | 240 | 0,210 | 25 |
To download
Producer
Product code
ROHRflex PP
Series
Material
Polypropylene - PP
Temperature range
-40...+120°C
Tubing inner diameter (mm)
6.9 x 9.9 mm
, 9.8 x 12.9 mm
, 12.2 x 15.7 mm
, 14.3 x 18.2 mm
, 16.6 x 21.2 mm
, 23.0 x 28.4 mm
, 28.9 x 34.3 mm
, 36.0 x 42.5 mm
, 48.0 x 54.5 mm
Tubing outer diameter (mm)
10 mm
, 13 mm
, 15.8 mm
, 18.5
, 21.2 mm
, 28,5 mm
, 34.5 mm
, 42.5 mm
, 54.5 mm
Resistance to compression
Regular
Flame resistance
Regular
Insulating value
Regular
UV resistance
Increased
Resistance to impact
Increased
Operation in smoke
Permissible
Pertol resistance
Increased
Oil resistance
Regular
Tensile strength
Regular
Flexibility
Increased
Profile
Fine
Colour
Black
Compatible with
PP
Certificate
EN / IEC 61386-23
