Flexa ROHRflex PA 6-UL-SD - protective conduit

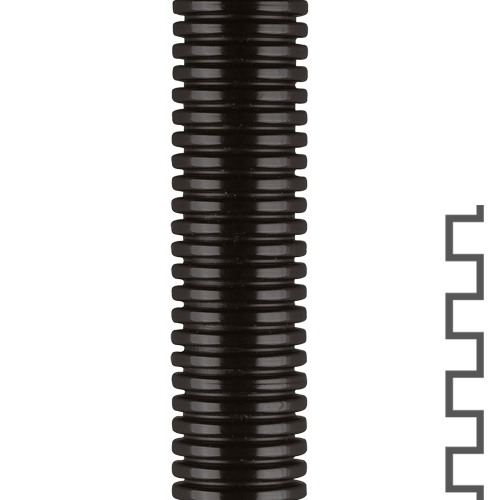

- ROHRflex PA 6-UL-SD is Flexa's all-plastic tubing with a fine profile and black colour.
Flexa ROHRflex PA 6-UL-SD
All-plastic tubing from ROHRflex PA 6-UL-SD series developed by Flexa. Available in black with fine profile.
Tubing features:
- air- and liquid-tight
- oil resistant up to +80°C
- benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- flame retardant
- high UV-resistance
- UL 1660 & CSA C22.2 Nr. 227.2.1-14; file no.: E495847
Applications:
- Automation
- Plant construction
- Electrical installations
- Machinery and equipment
| FLEXA No. | Nominal size [inch] |
Colour | OD [mm] |
Profile | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|---|---|
| 10238202016 | 1/2 inch | Black | 21,2 | fine | 16,0 | 21,2 | 50 | 75 | 0,075 | 50 |
| 10238202023 | 3/4 inch | Black | 28,5 | fine | 22,5 | 28,5 | 60 | 100 | 0,120 | 50 |
| 10238202029 | 1 inch | Black | 34,5 | fine | 28,4 | 34,5 | 70 | 120 | 0,155 | 25 |
| 10238202036 | 1 1/4 inch | Black | 42,5 | fine | 35,5 | 42,5 | 100 | 150 | 0,222 | 25 |
| 10238202048 | 1 1/2 inch | Black | 54,5 | fine | 47,5 | 54,5 | 110 | 190 | 0,300 | 25 |
To download
Producer
Product code
ROHRflex PA 6-UL-SD
Series
Material
Polyamide - PA 6-UL-SD
Temperature range
-25...+120°C
Tubing inner diameter (mm)
16.0 x 21.2 mm
, 22.5 x 28.5 mm
, 28.4 x 34.5 mm
, 35.5 x 42.5 mm
, 47.5 x 54.5 mm
Tubing outer diameter (mm)
21.2 mm
, 28,5 mm
, 34.5 mm
, 42.5 mm
, 54.5 mm
Resistance to compression
Increased
Flame resistance
Decreased
Insulating value
Regular
UV resistance
Increased
Resistance to impact
Increased
Operation in smoke
Permissible
Pertol resistance
Increased
Oil resistance
Increased
Tensile strength
Regular
Flexibility
Increased
Profile
Fine
Colour
Black
Compatible with
PA6-UL-SD
Certificate
UL 1660 | CSA C22.2 Nr. 227.2.1-14
