Flexa ROHRflex PA 6-LG - protective conduit
- ROHRflex PA 6-LG is Flexa's slitted, all-plastic tubing with a fine profile and black colour.

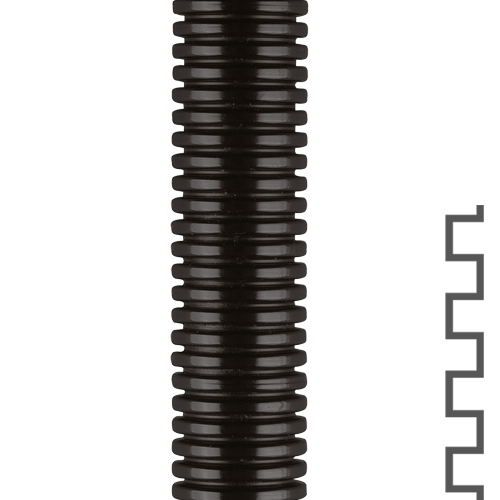

Flexa ROHRflex PA 6-LG
All-plastic tubing from ROHRflex PA 6-LG series developed by Flexa. Slitted, internally and externally corrugated, for retrofit and repair, HB (UL 94). Available in black with fine profile.
Tubing features:
- air- and liquid-tight
- benzine resistant
- widely resistant to acid and solvents
- free of silicone, cadmium, halogen
- flame retardant
- high UV-resistance (black)
Applications:
- Automation
- Plant construction
- Electrical installations
- For retrofit and repair
- Automotive
- Machinery and equipment
| FLEXA No. | Colour | OD [mm] |
Profile | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|---|
| 10261242006 | Black | 10,0 | fine | 6,5 | 10,0 | 13 | 35 | 0,020 | 50 |
| 10261242010 | Black | 13,0 | fine | 10,0 | 13,0 | 20 | 45 | 0,024 | 50 |
| 10261242012 | Black | 15,8 | fine | 12,0 | 15,8 | 35 | 55 | 0,034 | 50 |
| 10261242016 | Black | 21,2 | fine | 16,5 | 21,2 | 45 | 75 | 0,056 | 50 |
| 10261242023 | Black | 28,5 | fine | 22,0 | 28,5 | 55 | 100 | 0,100 | 50 |
| 10261242029 | Black | 34,5 | fine | 29,0 | 34,5 | 65 | 120 | 0,122 | 25 |
| 10261242036 | Black | 42,5 | fine | 35,5 | 42,5 | 90 | 150 | 0,145 | 25 |
| 10261242048 | Black | 54,5 | fine | 48,0 | 54,5 | 100 | 190 | 0,225 | 25 |
To download
Producer
Product code
ROHRflex PA 6-LG
Series
Material
Polyamide - PA 6-LG
Temperature range
-25...+120°C
Tubing inner diameter (mm)
6.5 x 10.0 mm
, 10.0 x 13.0 mm
, 12.0 x 15.8 mm
, 16.5 x 21.2 mm
, 22.0 x 28.5 mm
, 29.0 x 34.5 mm
, 35.5 x 42.5 mm
, 48.0 x 54.5 mm
Tubing outer diameter (mm)
10 mm
, 13 mm
, 15.8 mm
, 21.2 mm
, 28,5 mm
, 34.5 mm
, 42.5 mm
, 54.5 mm
Resistance to compression
Regular
Flame resistance
Decreased
Insulating value
Regular
UV resistance
Increased
Resistance to impact
Regular
Operation in smoke
Permissible
Pertol resistance
Increased
Oil resistance
Increased
Tensile strength
Regular
Flexibility
Increased
Profile
Fine
Colour
Black
Compatible with
PA6-LG
Certificate
EN / IEC 61386-23
, UL 1696 | CSA 22.2, UR file E86359
Application features
Dividable
