Flexa ROHRflex PA 6-CU - protective conduit
- ROHRflex PA 6-CU is Flexa's protective plastic tubing with CU wire braiding. Product has a fine profile. Designed for EMC applications. Very resistant to shocks, friction and sparks. Flammability class UL 94 HB.
Flexa ROHRflex PA 6-CU
Protective plastic tubing with copper wire braiding from ROHRflex PA 6-CU series developed by Flexa. Designed for EMC applications. The product has a fine profile. Very resistant to shocks, friction and sparks. Flammability class UL 94 HB.
ROHRflex PA 6-CU tubing features:
- air- and liquid-tight
- oil resistant up to +80°C
- benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- flame retardant
- screening attenuation up to 80 dB frequency range up to 30 MHz
Applications
- Automation
- Plant construction
- Shipbuilding
- Electrical installations
- Automotive
- Machinery and equipment

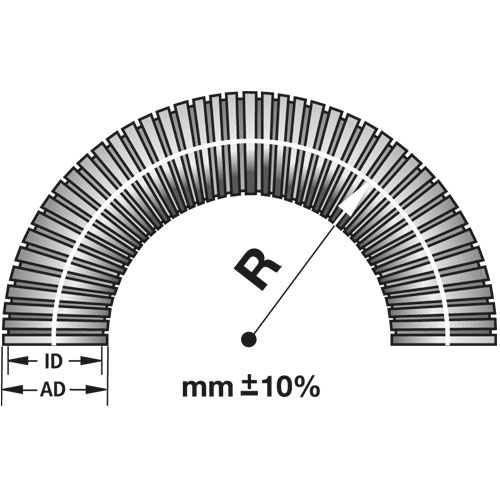

| FLEXA No. | Colour | OD [mm] |
Profile | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|---|
| 10461702010 | Other | 13,0 | fine | 10,0 | 14,0 | 20 | 45 | 0,130 | 50 |
| 10461702012 | Other | 15,8 | fine | 12,5 | 16,8 | 35 | 55 | 0,180 | 50 |
| 10461702016 | Other | 21,2 | fine | 16,5 | 22,2 | 45 | 75 | 0,250 | 50 |
| 10461702029 | Other | 34,5 | fine | 29 | 35,5 | 65 | 120 | 0,490 | 25 |
| 10461702036 | Other | 42,5 | fine | 36,0 | 43,5 | 90 | 150 | 0,590 | 25 |
| 10461702048 | Other | 54,5 | fine | 48,0 | 55,5 | 100 | 190 | 0,780 | 25 |
To download
Producer
Product code
ROHRflex PA 6-CU
Series
Material
Polyamide - PA6
Temperature range
-40...+120°C
Tubing inner diameter (mm)
10.0 x 14.0 mm
, 12.5 x 16.8 mm
, 16.5 x 22.2 mm
, 29.0 x 35.5 mm
, 36.0 x 43.5 mm
, 48.0 x 55.5 mm
Tubing outer diameter (mm)
13 mm
, 15.8 mm
, 21.2 mm
, 34.5 mm
, 42.5 mm
, 54.5 mm
Resistance to compression
Regular
Flame resistance
Regular
Insulating value
Regular
UV resistance
Increased
Resistance to impact
Regular
Operation in smoke
Permissible
Pertol resistance
Increased
Oil resistance
Increased
Tensile strength
Regular
Flexibility
Increased
Profile
Fine
Colour
Unpainted
Application features
EMC
Certificate
EN / IEC 61386-23
